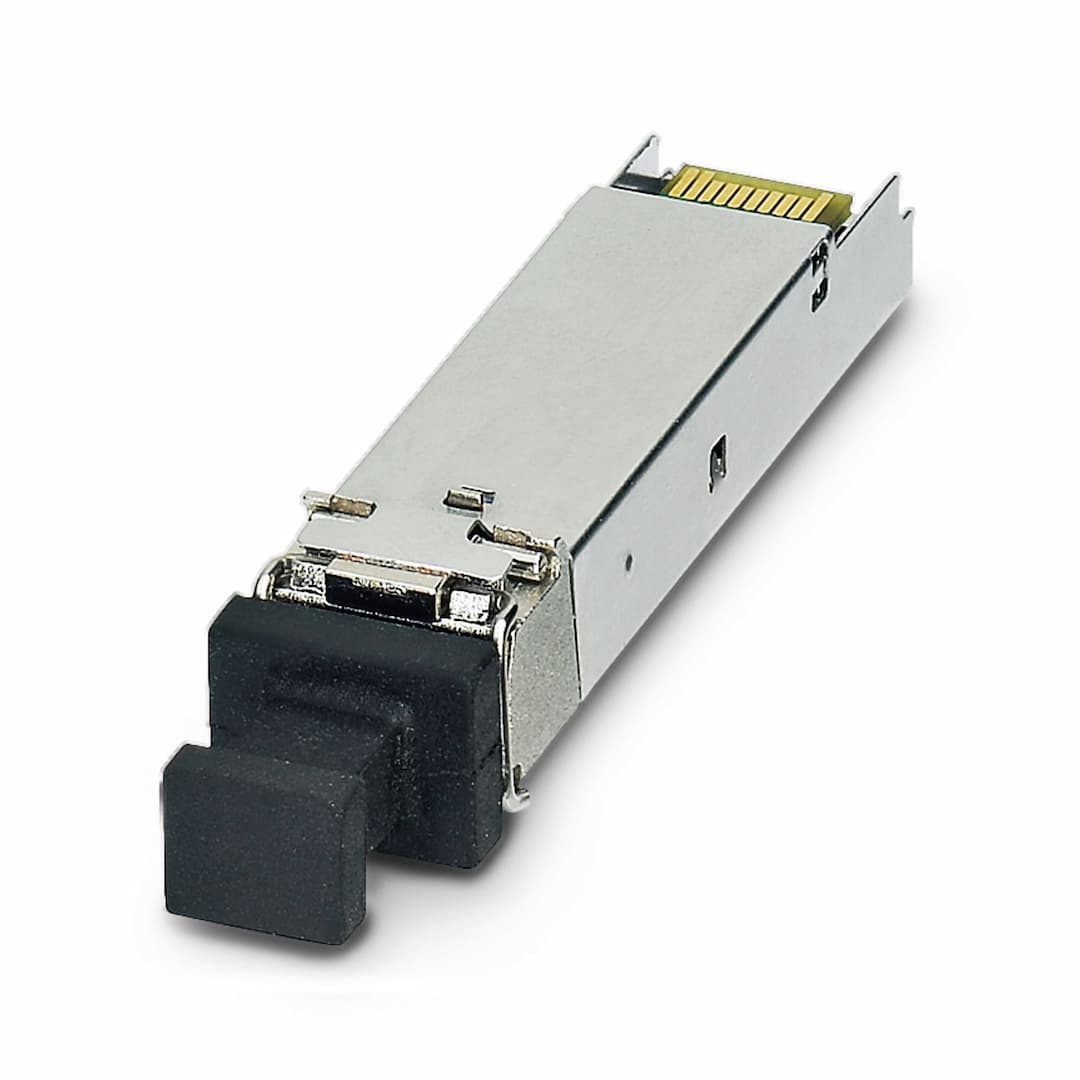

Product Model
FL SFP SX
Selling Points
- 1Supports 1000 Mbps data transmission over 1 km.
- 2Compatible with multi-mode fiber optic cables (50/125 µm).
- 3Dimensions: 13.7 mm width, 8.95 mm height, 56.5 mm length.
- 4Meets MSA (Multi-Source Agreement) standards for compatibility.
- 5Made from metal housing for robust performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 1 Gbps |
Transmit capacity, minimum | -9 dBm | Transmit capacity, maximum | -4 dBm |
Minimum receiver sensitivity | -17 dBm | Maximum receiver sensitivity | -3 dBm |
Transmission physics | multi-mode fiberglass | Transmission length | 275 m (Fiberglass, 62.5/125 µm (OM1))
550 m (Fiberglass, 50/125 µm (OM2))
1000 m (Fiberglass, 50/125 µm (OM3))
1000 m (Fiberglass, 50/125 µm (OM4)) |
Wavelength | 850 nm | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC multi-mode) | Product type | SFP module |
Type | Factoryline devices with SFP slot | MTTF | 667 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
Format | SFP (Small Form-factor Pluggable) | Article revision | 03 |
Status display | via a Factoryline device | Current consumption | 240 mA |
Maximum power dissipation for nominal condition | 0.8 W | Transmission medium | FO |
Supply voltage | 3.3 V (via Factoryline switch) | Power supply connection | via SFP slot |
Max. current consumption | 240 mA | Current consumption | 240 mA |
Connection method | To insert in SFP slot | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C (non-condensing) | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Case temperature | max. 85 °C (Operation) | Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Standard designation | Laser equipment safety | Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
