Product Model

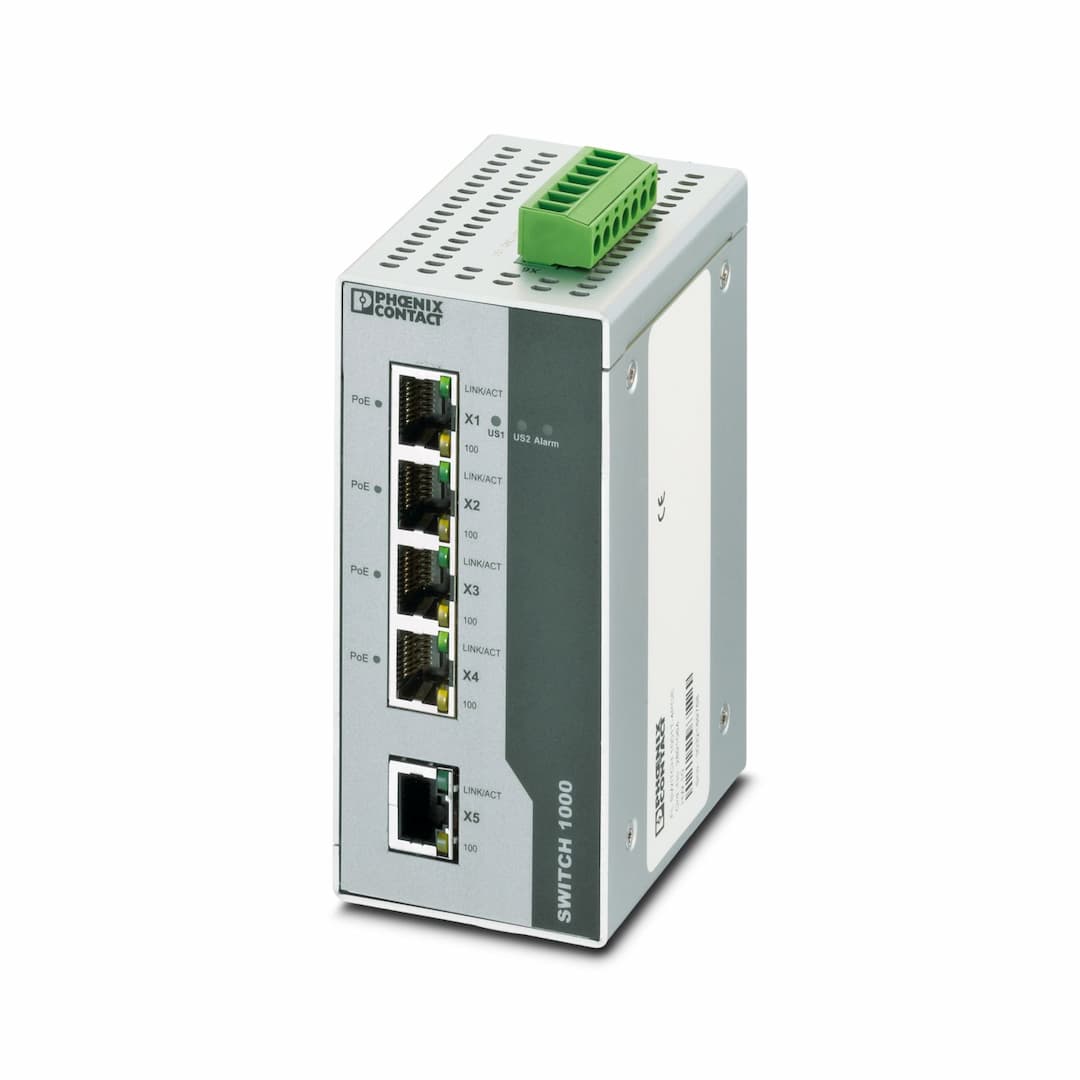

FL SWITCH 1001T-4POE
Selling Points
- 1Compliant with IEEE 802.3at: Ensures compatibility with high-power devices.
- 2Four PoE+ Ports: Supplies up to 34.2 W per port for efficient device powering.
- 3Redundant Power Supply: Provides reliable operation with dual power inputs.
- 4Wide Operating Temperature: Operates from -40°C to 75°C for industrial environments.
- 5Automatic Detection of PD: Automatically detects and powers IEEE 802.3at or 802.3af devices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 55 mm | Height | 117 mm |
Depth | 78 mm | Notes on operation | Mode B PoE |
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Housing material | Aluminum | Mounting type | DIN rail mounting |
Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet RJ45 |
Transmission length | 100 m (Between transmitter / receiver) | Signal LEDs | LNK/ACT, 100, POE |
No. of channels | 1 (RJ45 port) | Connection method | RJ45 |
Transmission speed | 10/100 Mbps | Transmission physics | Ethernet RJ45 |
Transmission length | 100 m (Between transmitter / receiver) | Signal LEDs | LNK/ACT, 100, POE |
No. of channels | 4 (RJ45 ports) | Product type | Switch |
Product family | Unmanaged PoE Switches 1000 | Type | Stand-Alone |
MTTF | 68 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Article revision | 07 |
Basic functions | PSE, complies with IEEE 802.3at | Signal contact control voltage | 24 V DC |
Signal contact control current | 100 mA | Status and diagnostic indicators | LEDs: U |
Additional functions | Autonegotiation | Basic functions | PSE, complies with IEEE 802.3at |
Power consumption | 129 W | Local diagnostics | US1, US2 Supply voltage Green LED
PoE PoE detection Yellow LED
LNK/ACT Link status/data transmission Green LED
Alarm Power failure at US1 or US2/Link failure |
Maximum power dissipation for nominal condition | 129.6 W | Test section | Supply voltage/functional ground 500 V AC 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
Supply voltage range | 18 V DC ... 57 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Inrush current | 18 A (57 V DC for 100 μs)
10 A (24 V DC for 100 μs) | Residual ripple | 3.6 V |
Max. current consumption | 6.2 A (Maximum, nominal load) | Typical current consumption | 148 mA (at U |
Signal contact control voltage | 24 V DC | Signal contact control current | 100 mA |
Connection name | Power supply | pluggable | yes |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Stripping length | 7 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) | Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A |
Basic functions | PSE, complies with IEEE 802.3at | Status display | LEDs: U |
Specifications may be subject to change without notice
