Product Model

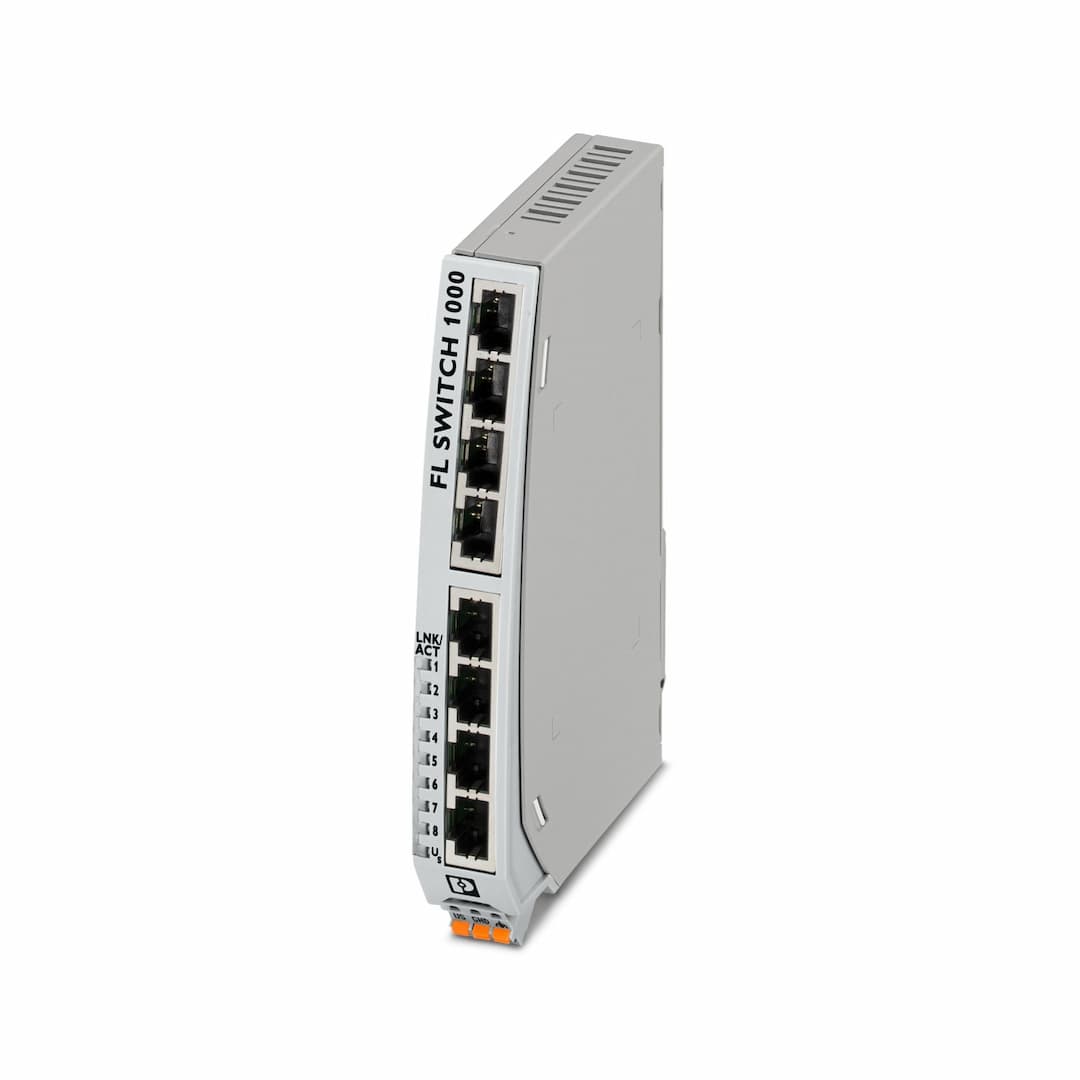

FL SWITCH 1008NTC
Selling Points
- 1Eight RJ45 ports support 10/100 Mbps transmission speed.
- 2Automatic data transmission speed detection simplifies setup.
- 3Enhanced traffic prioritization for automation protocols ensures efficient data exchange.
- 4Local diagnostic indicators with LEDs provide real-time status monitoring.
- 5Energy-efficient Ethernet in accord with IEEE 802.3az reduces power consumption.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22.5 mm | Height | 140.4 mm |
Depth | 92.4 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 | Mounting type | DIN rail mounting |
Number of interfaces | 8 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 8 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch 1000 |
MTTF | 133.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1254 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1203.8 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | Article revision | 00 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | PROFINET conformance class | Conformance-Class A |
MAC address table | 2k | Status and diagnostic indicators | LEDs: U |
Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u)
Quality of Service (QoS) prioritization (IEEE 802.1p)
Energy-efficient Ethernet (IEEE 802.3az)
10Base-T (IEEE 802.3) | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
Maximum power dissipation for nominal condition | 1.53 W (at 24 V DC) | Transmission medium | Copper |
Supply voltage (DC) | 24 V | Supply voltage (AC) | 24 V AC (50/60 Hz) |
Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 57 mA (at 9 V DC) |
Typical current consumption | 26 mA (at 24 V DC) | Connection method | Push-in spring connection |
Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Stripping length | 10 mm |
Degree of protection | IP30 | Ambient temperature (operation) | -40 °C ... 75 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m (maximum) |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Shock (operation) | 30g (EN 60068-2-27) | Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
FCC | Title 47 Part 15 Subpart B:2018 Class A | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-4-8 (electromagnetic fields) Criterion A
EN 61000-6-2 Class A | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 61000-6-4:2007 + A1:2011 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
Status display | LEDs: U |
