Product Model

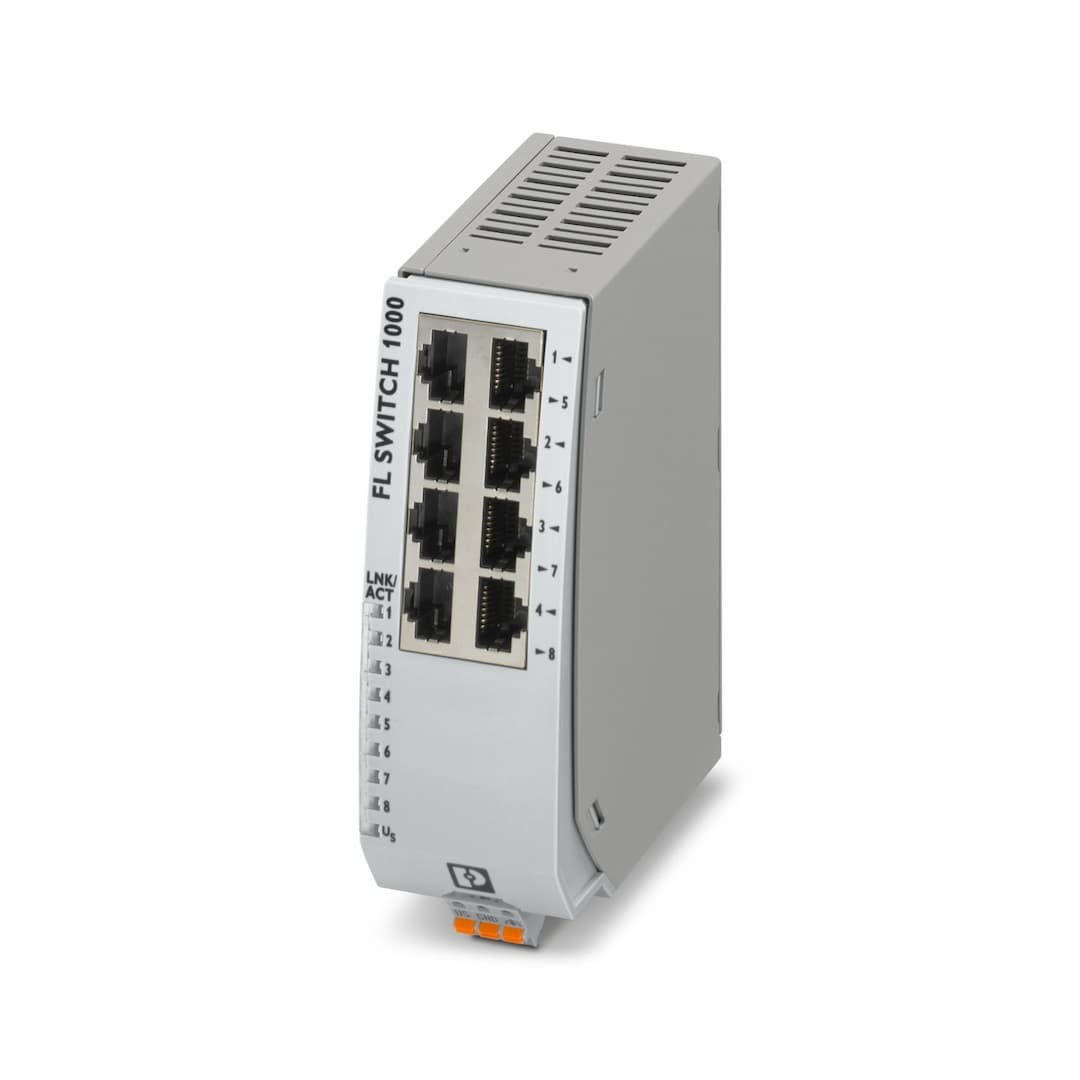

FL SWITCH 1108T
Selling Points
- 1Polycarbonate fiber-reinforced housing for long-lasting performance.
- 2Standard DIN rail mounting for streamlined setup in control panels.
- 3Reliable RJ45 connections with 8 ports for secure data transmission.
- 4Supports transmission speeds of 10/100/1000 Mbps for efficient data communication.
- 5Suitable for various industrial settings with a transmission length of up to 100 m per segment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 40 mm | Height | 125.4 mm |
Depth | 84 mm | Note on application | Only for industrial use |
Housing material | Polycarbonate fiber reinforced
Aluminum / steel sheet DC01 | Mounting type | DIN rail mounting |
Number of interfaces | 8 | Connection method | RJ45 |
Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Data receive, link status | No. of channels | 8 (RJ45 ports) |
Product type | Switch | Product family | Unmanaged Switch 1000 |
Type | Stand-Alone | MTTF | 76.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
1593.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
1400.7 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
Article revision | 00 | Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode |
MAC address table | 4k | Status and diagnostic indicators | LEDs: U |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Maximum power dissipation for nominal condition | 1.53 W (at 24 V DC) |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC |
Supply voltage (AC) | 24 V AC (50/60 Hz) | Supply voltage range | 9 V DC ... 32 V DC
18 V AC ... 30 V AC (50/60 Hz) |
Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 170 mA (at 9 V DC) | Typical current consumption | 55 mA (at 24 V DC) |
Connection name | Power supply | Degree of protection | IP30 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | 2000 m (maximum) | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Shock (operation) | 30g (EN 60068-2-27) |
Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
Air pressure (storage/transport) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) | Conformance | CE-compliant |
ATEX | II 3 G Ex ec IIC T4 Gc | EU-type examination certificate | UL 23 ATEX 3070X |
IECEx | Ex ec IIC T4 Gc | IECEx certificate | IECEx UL 23.0065X |
UL, USA / Canada | UL 61010-1, UL 61010-2-201 | FCC | Title 47 Part 15 Subpart B:2018 Class A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-4 Class A
EN 61000-6-2 Class A |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4:2007 + A1:2011 |
Basic functions | Unmanaged switch
Autonegotiation
Store and Forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
