Product Model

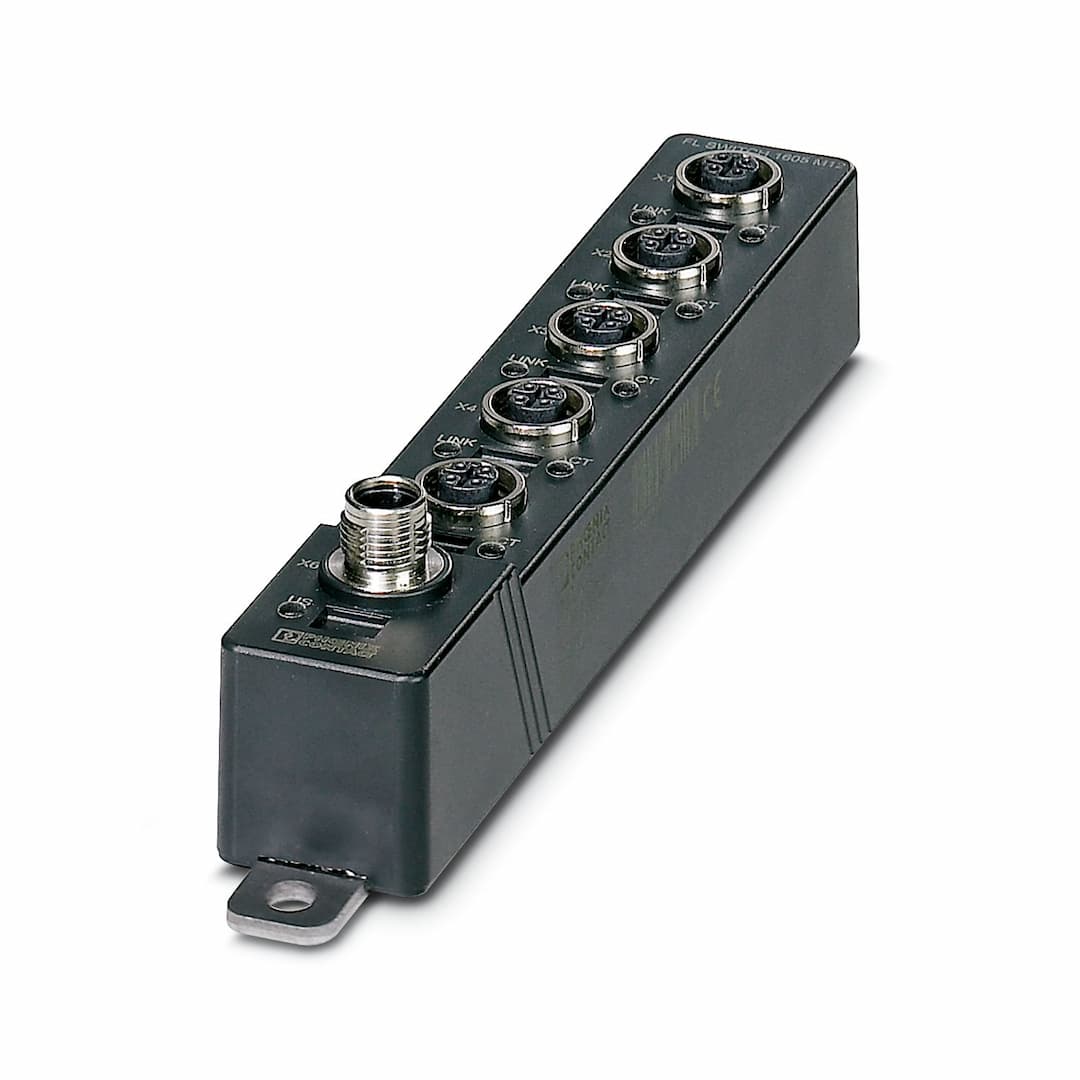

FL SWITCH 1605 M12
Selling Points
- 1Robust IP67 Housing: Designed for harsh environments with IP67 protection.
- 25 M12 Ports: Five Ethernet ports in M12 format for secure and reliable connections.
- 3Auto Negotiation: Automatically detects and adjusts to 10 or 100 Mbps data transmission rates.
- 4Quality of Service (QoS): Prioritizes PROFINET traffic for efficient network management.
- 5Long MTTF: Offers a Mean Time To Failure (MTTF) of up to 302.5 years under specific conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 30 mm | Height | 200 mm |
Depth | 41 mm | Drill hole spacing | 186 mm |
General | NOTE: Meet noise immunity requirements | Note on application | Only for industrial use |
Color | anthracite | Material base plate | High-grade steel (1.4301/1.4016) |
Housing material | PBT | Mounting type | Wall mounting |
Connection method | M12, shielded | Note on the connection method | D-coded |
Transmission speed | 10/100 Mbps | Transmission physics | Twisted pair connection |
Transmission length | 100 m (per segment) | Signal LEDs | Data receive, link status |
No. of channels | 5 (M12 ports) | Product type | Switch |
Product family | Unmanaged Switch 1600 | Type | Stand-Alone |
MTTF | 302.5 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
156.52 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
40.43 Years (SN 29500 standard, temperature 55°C, operating cycle 100%) | Article revision | 08 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Overvoltage category | II |
Degree of pollution | 2 | Basic functions | Unmanaged switch/auto negotiation, complies with standard IEEE 802.3, store-and-forward switching mode, 2 priority classes according to IEEE802.1p, PTCP filter |
PROFINET conformance class | Conformance-Class A | Status and diagnostic indicators | LEDs: US (power supply), 2 LEDs per Ethernet port (Link and Activity) |
Additional functions | Autonegotiation | Basic functions | Unmanaged switch/auto negotiation, complies with standard IEEE 802.3, store-and-forward switching mode, 2 priority classes according to IEEE802.1p, PTCP filter |
Current consumption | 40 mA ... 80 mA (at 24 V DC) | Local diagnostics | US Supply voltage US Green LED
X1...X5 Link status Green LED
X1...X5 Receiving/sending telegrams Green LED |
Maximum power dissipation for nominal condition | 0.96 W | Test section | 24 V supply / functional ground 500 V DC 1 min
Ethernet interface/all other potentials 2.25 kV DC 1 min |
Transmission medium | Copper | Supply voltage (DC) | 24 V DC (M12 connector) |
Supply voltage range | 9 V DC ... 32 V DC | Power supply connection | via M12 connector |
Residual ripple | 3.6 V | Max. current consumption | 40 mA (+10 mA per port) |
Typical current consumption | 40 mA (at U | Current consumption | 40 mA ... 80 mA (at 24 V DC) |
Connection method | M12, shielded | Degree of protection | IP65
IP66
IP67 |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Altitude | max. 2000 m (above mean sea level (operation)) | Permissible humidity (operation) | 10 % ... 95 % |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Conformance with EMC directives | Noise emission test in accordance with EN 61000-6-3/IEC 61000-6-3 EN 61000-6-3 (noise emission) Class B
EN 55011 (emitted interference) Class B
EN 55022 (emitted interference) Class B
EN 61000-4-2 (ESD) Criterion B
EN 61000-4-3 (electromagnetic fields) Criterion A, 20 V/m
EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m
EN 61000-4-4 Criterion A, 2.2 kV
EN 61000-4-5 (surge) Criterion A, interfaces 1 kV
EN 61000-4-6 (line noise immunity) Criterion A, Field intensity: 10 V/m
EN 60950-1 | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch/auto negotiation, complies with standard IEEE 802.3, store-and-forward switching mode, 2 priority classes according to IEEE802.1p, PTCP filter |
Status display | LEDs: US (power supply), 2 LEDs per Ethernet port (Link and Activity) |
Specifications may be subject to change without notice
