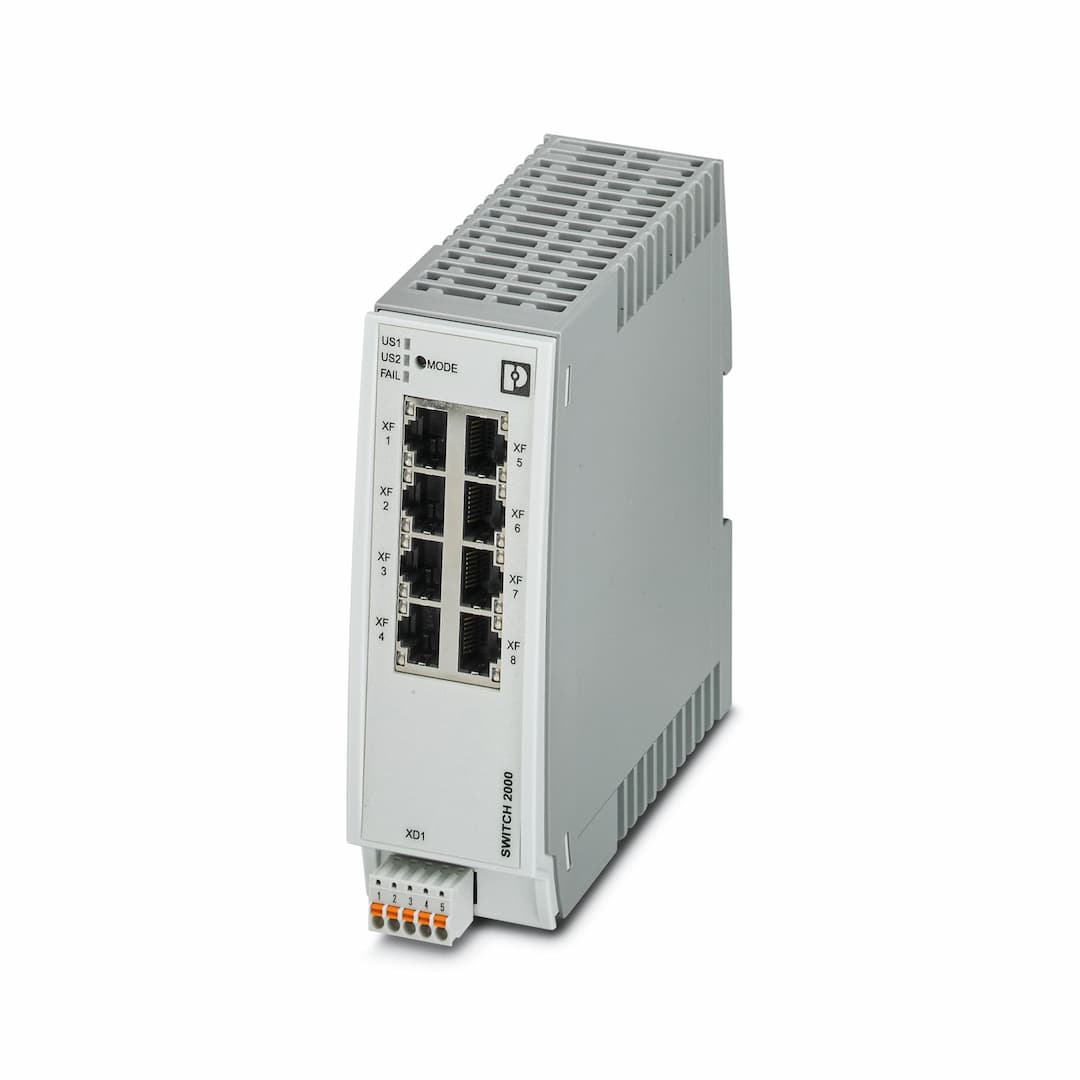

Phoenix Contact FL SWITCH 2208C

Selling Points

  • 1Managed Switch with 8 RJ45 Ports: Ideal for industrial Ethernet networks with reliable 10/100 Mbps connectivity.
  • 2PROFINET Conformance-Class B: Ensures seamless integration with PROFINET networks for efficient data communication.
  • 3Extended Temperature Range: Operates from -40 °C to 70 °C, suitable for harsh industrial environments.
  • 4Easy Installation via DIN Rail Mounting: Streamlined setup in control panels with secure and stable connectivity.
  • 5Advanced Features like DHCP, VLANs, and MRP: Enhances network management with robust features for industrial applications.
Product Details
FL SWITCH 2208C
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
45 mm
Height
130 mm
Depth
119 mm
General
Support by phone or on-site (fee is charged)
Note on application
Only for industrial use
Housing material
Polycarbonate fiber reinforced
Mounting type
DIN rail mounting
Connection method
RJ45
Note on the connection method
Auto negotiation and autocrossing
Transmission speed
10/100 Mbps
Transmission physics
Copper
Transmission length
100 m (per segment)
Signal LEDs
Data receive, link status
No. of channels
8 (RJ45 ports)
Output name
Alarm output
Product type
Switch
Product family
Managed Switch 2000
Type
Book type
MTTF
494.02 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) 235.18 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) 29.73 Years (SN 29500 standard, temperature 70°C, operating cycle 100%)
Special properties
Extended temperature range Coated PCB, extended temperature range Conformal Coating Development process certified in accordance with IEC 62443-4-1 Compatible with IEC 62443-4-2
Signal delay
≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size)
Article revision
03
Protection class
III (VDE 0106)
Degree of pollution
2
Diagnostic functions
RMON History LLDP (Link Layer Discovery Protocol) SNMP-Traps N:1-Portmirroring ACD (Address Conflict Detection) SysLog CRC-Surveillance
Basic functions
Store-and-forward switch, complies with IEEE 802.3
Signal contact control voltage
typ. 24 V DC
PROFINET conformance class
Conformance-Class B
PROFINET device function
PROFINET device Fast Startup
Filter functions
Quality of Service (8 priority classes) Class of Service DiffServ/DSCP Port-Priorisierung VLAN (up to 32 VLANs) IGMP Snooping/Querier (v1/v2) Auto-Query-Port Extended Multicast Filtering
IP parameterization
DHCP client DHCP Option 82 (Relay Agent) DHCP server (pool-based, port-based) BootP DCP (Discovery and Configuration Protocol)
MAC address table
8k
Management
Web-based management (HTTP/HTTPS) Role-based user management (LDAP, RADIUS) SNMPv1/v2/v3 Command Line Interface (Telnet, SSH)
Redundancy
MRP (Media Redundancy Protocol) RSTP (Rapid Spanning Tree Protocol) FRD (Fast Ring Detection) Large Tree Support LACP (Link Aggregation Control Protocol) PROFINET S2 system redundancy
Status and diagnostic indicators
LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed)
Additional functions
Transmission of MMS and GOOSE (IEC 61850-8-1) Transmission of Modbus/TCP
Time synchronization
SNTP (Simple Network Time Protocol)
Port security
MAC-based, RADIUS (IEEE 802.1X), MAC Authentication Bypass
Basic functions
Store-and-forward switch, complies with IEEE 802.3
Current consumption
190 mA
Local diagnostics
US1/2 Supply voltage US1, US2 Green LED FAIL Div. LED red LINK Link status Green LED
Maximum power dissipation for nominal condition
4.95 W (U
Test section
24 V supply / functional ground 500 V DC 1 min Ethernet interface/all other potentials 2.25 kV DC 1 min
Transmission medium
Copper
Supply voltage (DC)
24 V DC (redundant)
Supply voltage range
9 V DC ... 57 V DC
Power supply connection
via COMBICON, max. conductor cross section 1.5 mm²
Residual ripple
3.6 V
Max. current consumption
1.3 A (U
Typical current consumption
185 mA (at U
Current consumption
190 mA
Signal contact control voltage
typ. 24 V DC
Connection method
Push-in spring connection
Note on the connection method
Use only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C).
Conductor cross section, rigid
0.25 mm² ... 1.5 mm²
Conductor cross section, flexible
0.25 mm² ... 1.5 mm²
Conductor cross section AWG
24 ... 16
Stripping length
9 mm
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
10 % ... 95 % (non-condensing)
Shock (operation)
30g (EN 60068-2-27)
Vibration (operation)
in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)
79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
Air pressure (storage/transport)
79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating)
Free from substances that could impair the application of coating
Yes
Noxious gas test
ISA S71.04.2013 G3 Harsh Group A
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Conformance with EMC directives
EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A EN 61000-6-2 EN 61000-4-5 (surge) Criterion B EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A EN 61000-6-2 EN 61000-6-4 (interference) Class A EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A
Noise immunity
EN 61000-6-2
Noise emission
EN 61000-6-4
Basic functions
Store-and-forward switch, complies with IEEE 802.3
Status display
LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed)

Specifications may be subject to change without notice
