Product Model

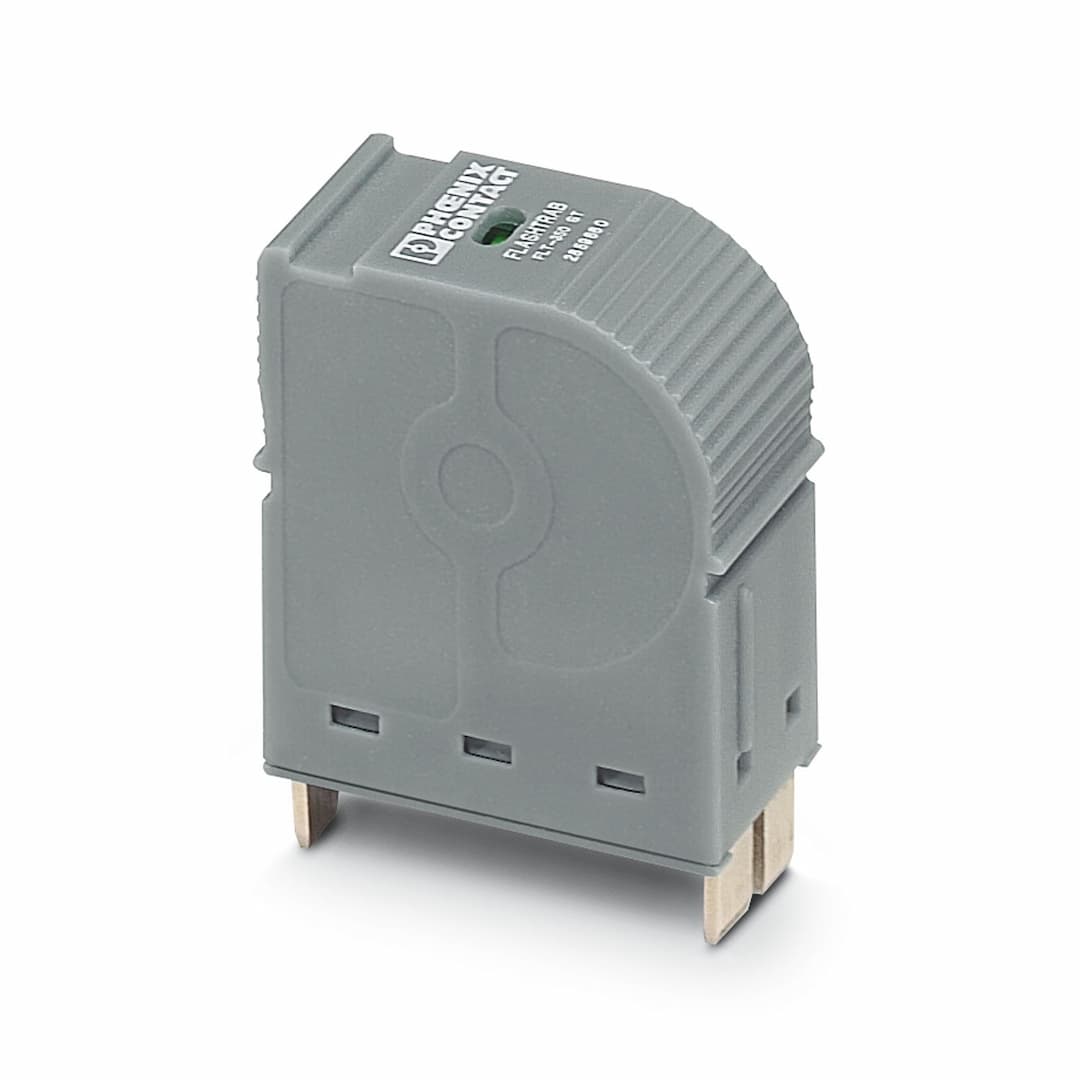

FLT-CP-350-ST
Selling Points
- 135.45 mm width, 46.6 mm height, and 56.4 mm depth for easy installation.
- 2Nominal discharge current of 100 kA (8/20 μs) for effective lightning protection.
- 3Visual signal for surge protection faults, ensuring quick identification and action.
- 4Ambient temperature from -40°C to 80°C and altitude up to 2000 meters.
- 5Meets IEC 61643-11 and UL 94 V-0 flammability rating for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
IEC test classification | I | EN type | T1 |
Type | DIN rail module, two-section, divisible | Number of positions | 1 |
Surge protection fault message | optical | Overvoltage category | III |
Pollution degree | 2 | Nominal frequency f | 50 Hz
60 Hz |
Nominal voltage U | 240 V AC | Width | 35.8 mm |
Horizontal pitch | 2 Div. | Flammability rating according to UL 94 | V0 |
Housing material | PBT | Open side panel | No |
Direction of action | L-N / L-PEN | Nominal frequency f | 50 Hz
60 Hz |
Maximum continuous voltage U | 350 V AC | Residual current I | ≤ 5 µA |
Power consumption without load Pc | ≤ 0.35 mW | Nominal discharge current I | 25 kA |
Follow current interrupt rating I | 3 kA (effective 264 V) | Voltage protection level U | ≤ 1.5 kV |
Response time t | ≤ 100 ns | Max. backup fuse with branch wiring | 315 A (gL/gG) |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 80 °C |
Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 / IEC 61643-1 | Standards/regulations | IEC 61643-1
EN 61643-11
UL 1449
IEEE C62.1
IEEE C62.34
IEEE C62.45 |
Mounting type | on base element |
Specifications may be subject to change without notice
