Product Model

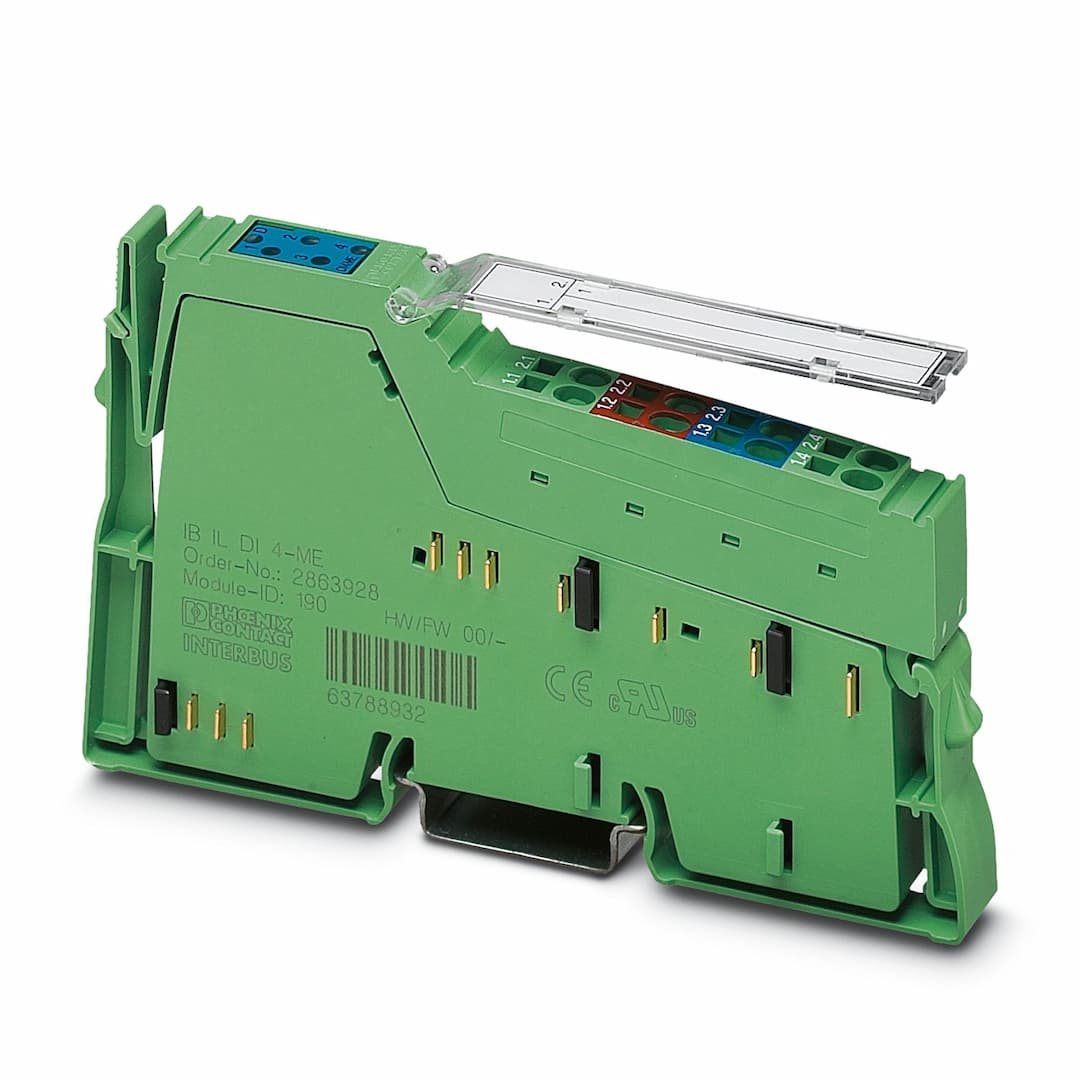

IB IL 24 DI 4-ME
Selling Points
- 1Reliable Automation Solution: The IB IL 24 DI 4-ME digital module ensures consistent performance in various automation applications.
- 2Spring-Cage Connection: Easy and secure connection method for efficient setup and maintenance.
- 324 V DC Input Voltage: Compatible with a wide range of DC power sources, making it versatile for different applications.
- 43-Conductor Technology: Supports multiple signal paths, enhancing the module's functionality and reliability.
- 5Durable Design: Built to withstand harsh environments, ensuring long-lasting operation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
CCCex note | Use in potentially explosive areas is not permitted in China. | Number of interfaces | 2 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | ID code (dec.) | 190 |
ID code (hex) | BE | Length code (hex) | 41 |
Length code (dec) | 65 | Process data channel | 0 bit |
Input address area | 4 bit | Output address area | 0 bit |
Register length | 4 bit | Required parameter data | 1 Byte |
Required configuration data | 4 Byte | Input name | Digital inputs |
Description of the input | EN 61131-2 type 1 | Number of inputs | 4 |
Connection method | Spring-cage connection | Connection technology | 3-conductor |
Input voltage | 24 V DC | Input voltage range | -30 V DC ... 30 V DC |
Input voltage range "0" signal | -3 V DC ... 5 V | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Nominal input current at U | min. 3 mA (at nominal voltage) |
Sensor current per channel | max. 250 mA | Typical response time | < 1 ms |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
No. of channels | 4 | Operating mode | Process data operation with 4 bits |
Article revision | 09 | Maximum power dissipation for nominal condition | 0.6 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 40 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1 A
0 A | Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
