Product Model

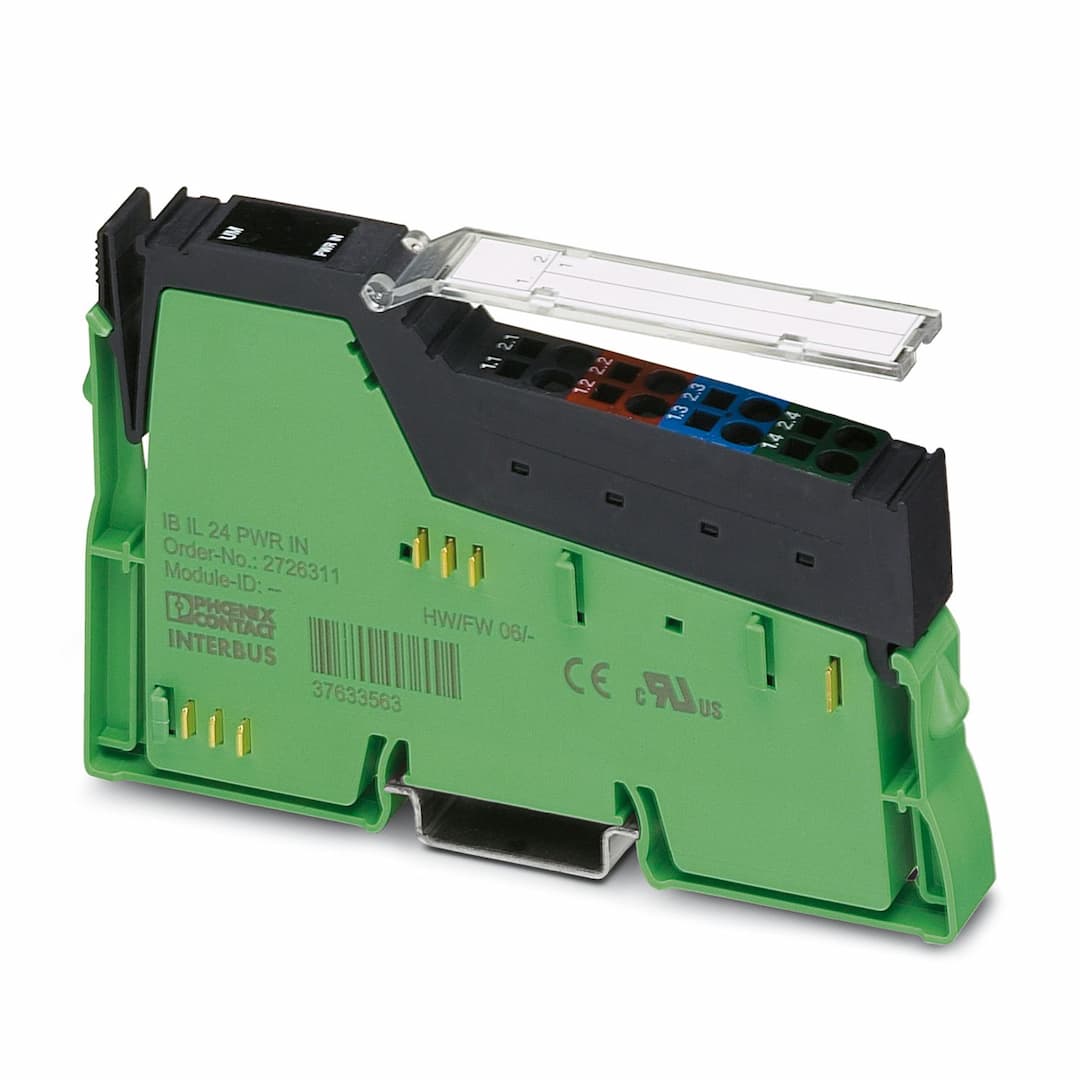

IB IL 24 PWR IN/2F-DF-2MBD-PAC
Selling Points
- 124V DC Power Supply: Provides stable 24V DC power for industrial applications.
- 2Integrated Fuse: Includes a safety fuse for main and segment voltage protection.
- 3Diagnostic Indicators: Offers diagnostic and status indicators for easy monitoring.
- 4Labeling Field: Equipped with a labeling field for easy identification and customization.
- 5Compact Design: Compact dimensions (12.2mm x 71.5mm x 119.8mm) for space-efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | ID code (dec.) | 190 |
ID code (hex) | BE | Length code (hex) | C2 |
Length code (dec) | 194 | Process data channel | 2 bit |
Input address area | 2 bit | Output address area | 0 Byte |
Register length | 2 bit | Required parameter data | 1 Byte |
Required configuration data | 4 Byte | Product type | I/O component |
Product family | Inline | Type | modular |
Special properties | 24 V DC
U
With fuse (U
With diagnostics | Article revision | 03 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Maximum power dissipation for nominal condition | 0.85 W |
Fuse | Safety fuse 5 x 20 with 6.3 A slow | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 45 mA DC | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V ... 30 V (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
