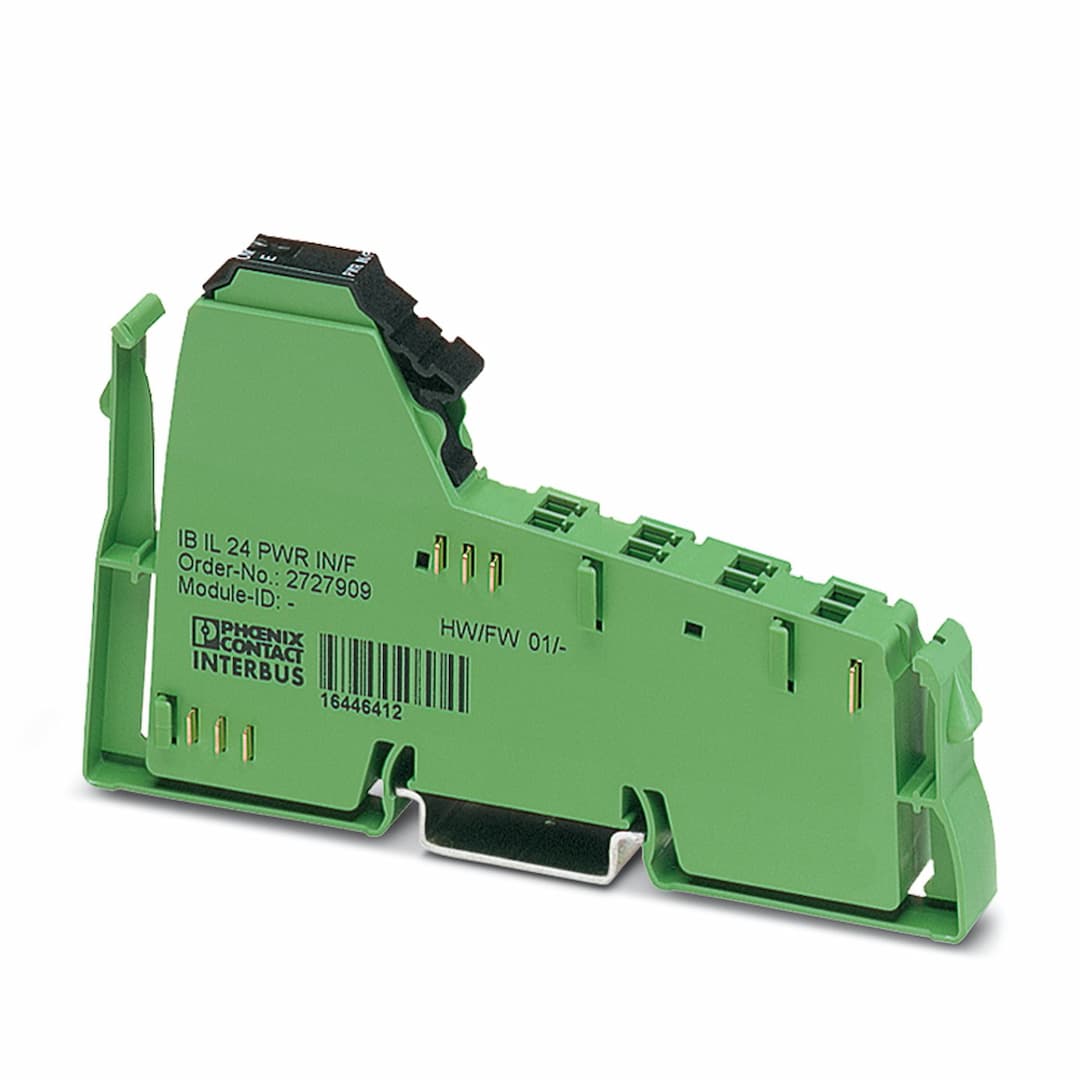

Product Model
IB IL 24 PWR IN/F-D
Selling Points
- 124 V DC Power Supply: Provides reliable 24 V DC power to main and segment circuits.
- 2Diagnostic Indicators: Offers diagnostic and status indicators for easy monitoring.
- 3Surge Protection: Equipped with internal fuses for polarity and surge protection.
- 4Compact Design: Dimensions: 12.2 mm width, 119.8 mm height, 71.5 mm depth.
- 5UL and cUL Listed: Meets UL and cUL standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular
Inline | Number of plugs | 1 |
ID code (dec.) | 190 | ID code (hex) | BE |
Length code (hex) | C2 | Length code (dec) | 194 |
Process data channel | 2 bit | Input address area | 2 bit |
Output address area | 0 Byte | Register length | 2 bit |
Required parameter data | 1 Byte | Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min
7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min
24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min |
Protective circuit | Polarity protection, surge protection
Overload protection; Fuse | Fuse | SI 5 x 20 6, 300 AT (in scope of delivery) |
Communications power U | via voltage jumper | I/O voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Residual ripple | ±5 % | Max. current consumption | 4 A |
Typical current consumption | 30 mA | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 25 mA DC | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V ... 30 V (including all tolerances, including ripple) | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | 8-pos. Inline power connector | Connection method | Inline data jumper |
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 75 % ... 85 % | Permissible humidity (storage/transport) | 75 % ... 85 % |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
