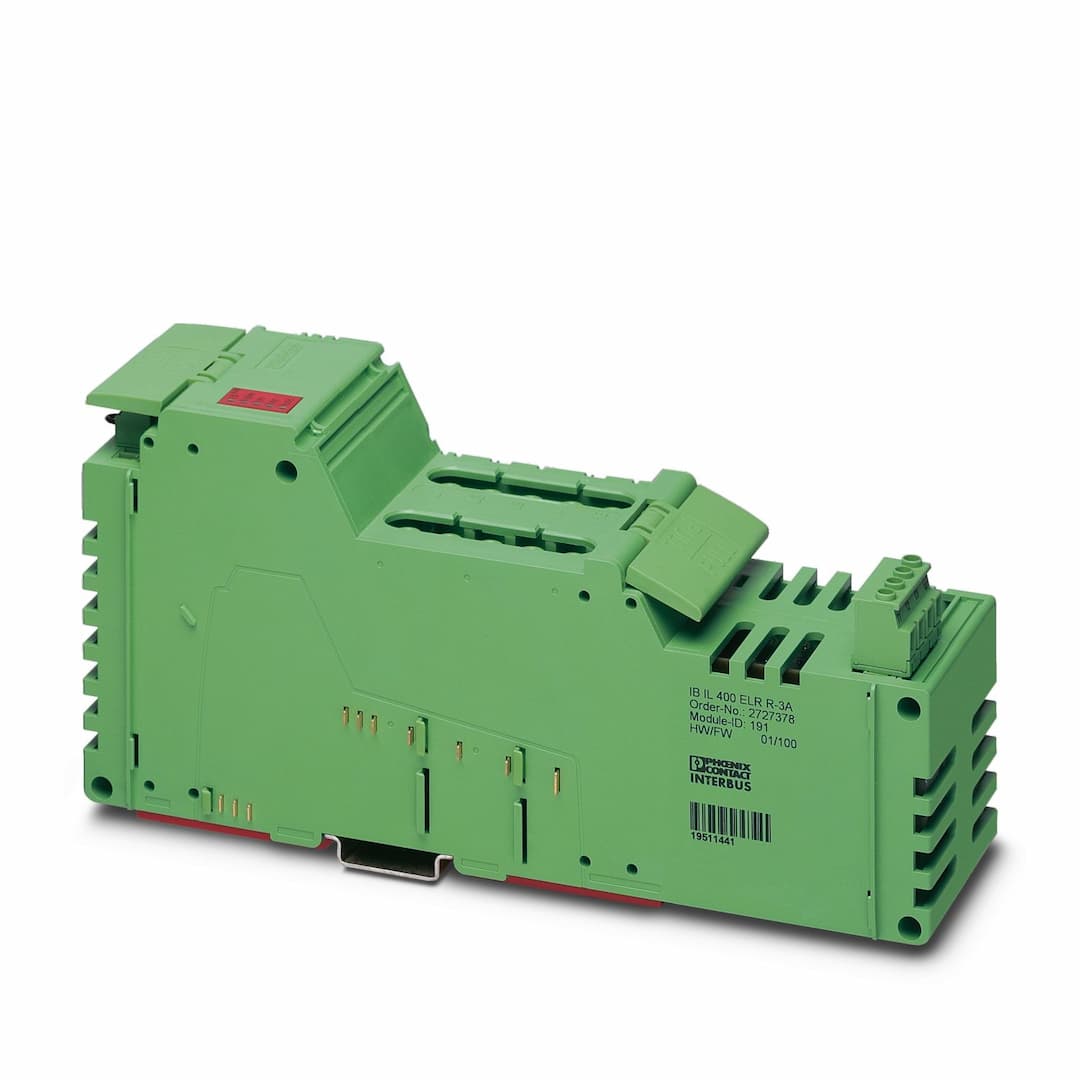

Product Model
IB IL 400 ELR 1-3A-2MBD
Selling Points
- 1Ensures safe operation and protection of three-phase asynchronous motors.
- 2Supports real-time data transmission with a transmission speed of 500 kbps.
- 3Provides overcurrent error messages and output stage control error messages for enhanced monitoring.
- 4Allows for seamless integration with external passive brake modules.
- 5Meets DIN rail mounting standards with dimensions of 63 mm width, 224 mm height, and 109 mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 63 mm | Height | 224 mm |
Depth | 109 mm | Connection method | Inline data jumper |
Transmission speed | 2 Mbps | Transmission physics | Copper |
ID code (dec.) | 191 | ID code (hex) | BF |
Length code (hex) | 81 | Length code (dec) | 129 |
Process data channel | 8 bit | Input address area | 1 Byte |
Output address area | 1 Byte | Register length | 8 bit |
Required parameter data | 5 Byte | Required configuration data | 5 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Diagnostics messages | Overcurrent Error message in the diagnostic code (bus) and display via the LED ERR on the module
Output stage cannot be controlled Error message in the diagnostic code (bus) and display via the LED ERR on the module |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 28.8 V DC (including all tolerances, including ripple) |
Current draw | max. 50 mA | Connection method | Through the potential jumper |
Designation | Terminal strips X11 and X12 | Test voltage: Supply voltage U | 1.2 kV AC, 50 Hz, 1 min |
Test voltage: Supply voltage U | 1.2 kV AC, 50 Hz, 1 min | Test voltage: Supply voltage U | 1.2 kV AC, 50 Hz, 1 min |
Test voltage: Supply voltage U | 1.2 kV AC, 50 Hz, 1 min | Test voltage: Local bus/400 V level | 1.2 kV AC, 50 Hz, 1 min |
Test voltage: Local bus/Brake control switch | 1.2 kV AC, 50 Hz, 1 min | Connection name | Motor circuit connector |
Connection method | Screw connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 55 °C |
Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 85 % (In conformity with DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 85 % (In conformity with DIN EN 61131-2) |
Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Noise emission | Noise emission test of the housing EN 55011:1991 class A in accordance with EN 61000-6-4 |
Mounting type | DIN rail mounting |
