Product Model

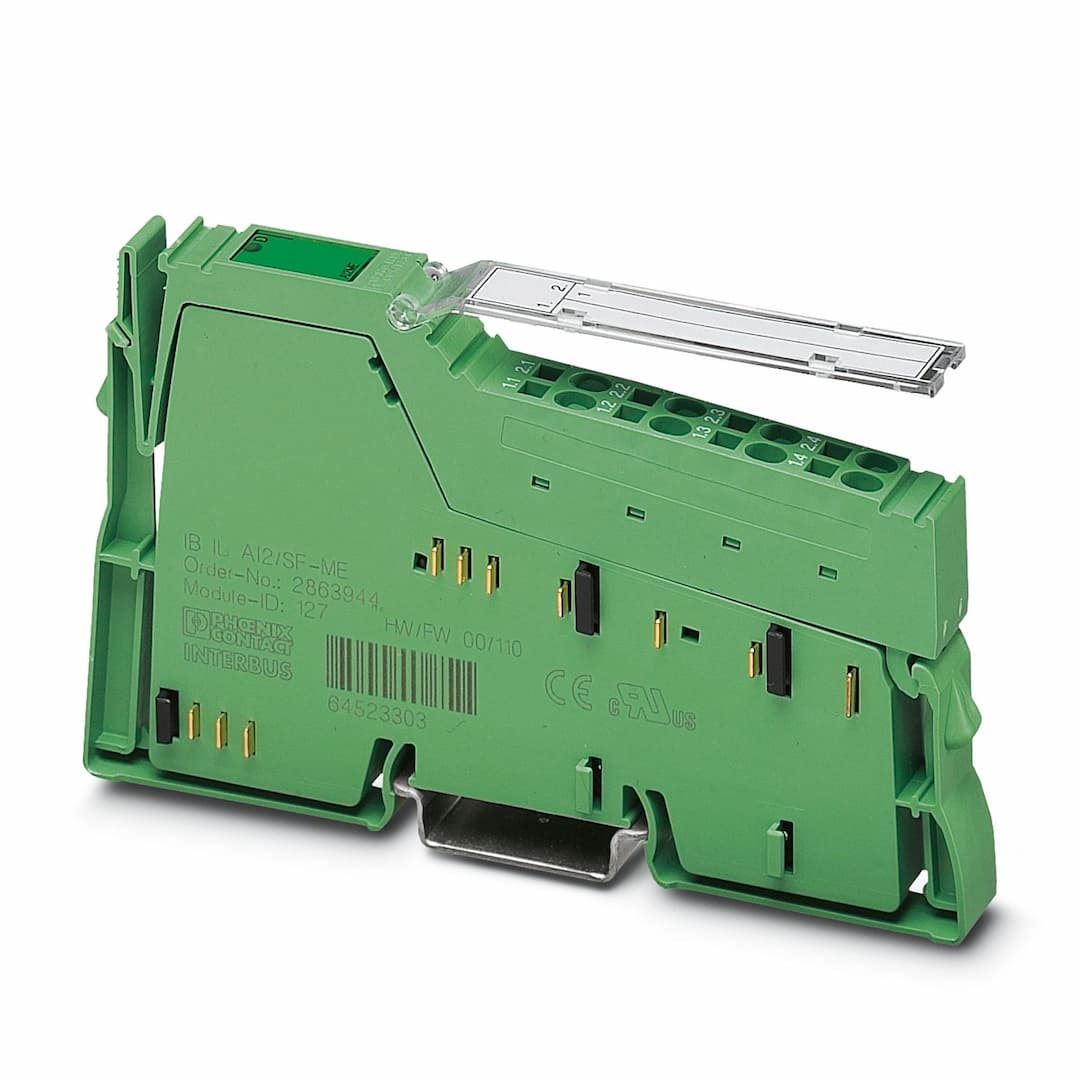

IB IL AI 2/SF-ME
Selling Points
- 1Dual Analog Input Capability: Connects sensors in 2 or 3-wire technology for versatile signal input.
- 2Wide Operating Range: Operates in ambient temperatures from -25 °C to 55 °C and storage/transport temperatures up to 85 °C.
- 3Compact Design: Dimensions are 12.2 mm wide, 119.8 mm high, and 71.5 mm deep, ideal for DIN rail mounting.
- 4EMC Class A Compliance: Meets EMC class A standards for reliable performance in industrial environments.
- 5UL Recognized and cULus Listed: Compliant with UL and cULus standards for safety and reliability in North America.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Housing dimensions |
Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 127 |
ID code (hex) | 7F | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Required configuration data | 4 Byte | Input name | Analog inputs |
Description of the input | Single-ended inputs, voltage or current | Number of inputs | 2 |
A/D conversion time | typ. 120 µs (per channel) | Connection method | Inline connector |
Connection technology | 2-conductor | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA
-20 mA ... 20 mA |
Input resistance current input | 50 Ω (Shunt) | Voltage input signal | 0 V ... 10 V
-10 V ... 10 V |
Input resistance of voltage input | > 220 kΩ | Data formats | IB IL, IB ST, IB RT, standardized representation |
Limit frequency (3 dB) | 40 Hz | Common mode voltage range signal - ground | 40 V (Between current input and functional ground)
40 V (between voltage input and functional ground) |
Measuring principle | Successive approximation | Measured value resolution | 13 bits (12 bits + sign bit) |
Measured value representation | 13 bits (12 bits + sign bit) | Protective circuit | Surge protection; Suppressor diodes in the analog inputs |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Operating mode | Process data operation with 2 words | Diagnostics messages | Failure of the internal I/O supply yes
I/O error Error message in the process data
User error Error message in the process data |
Article revision | 07 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Maximum power dissipation for nominal condition | 0.9 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA
typ. 45 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 18 mA
typ. 13 mA | Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logic), 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: I/O/functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
