Product Model

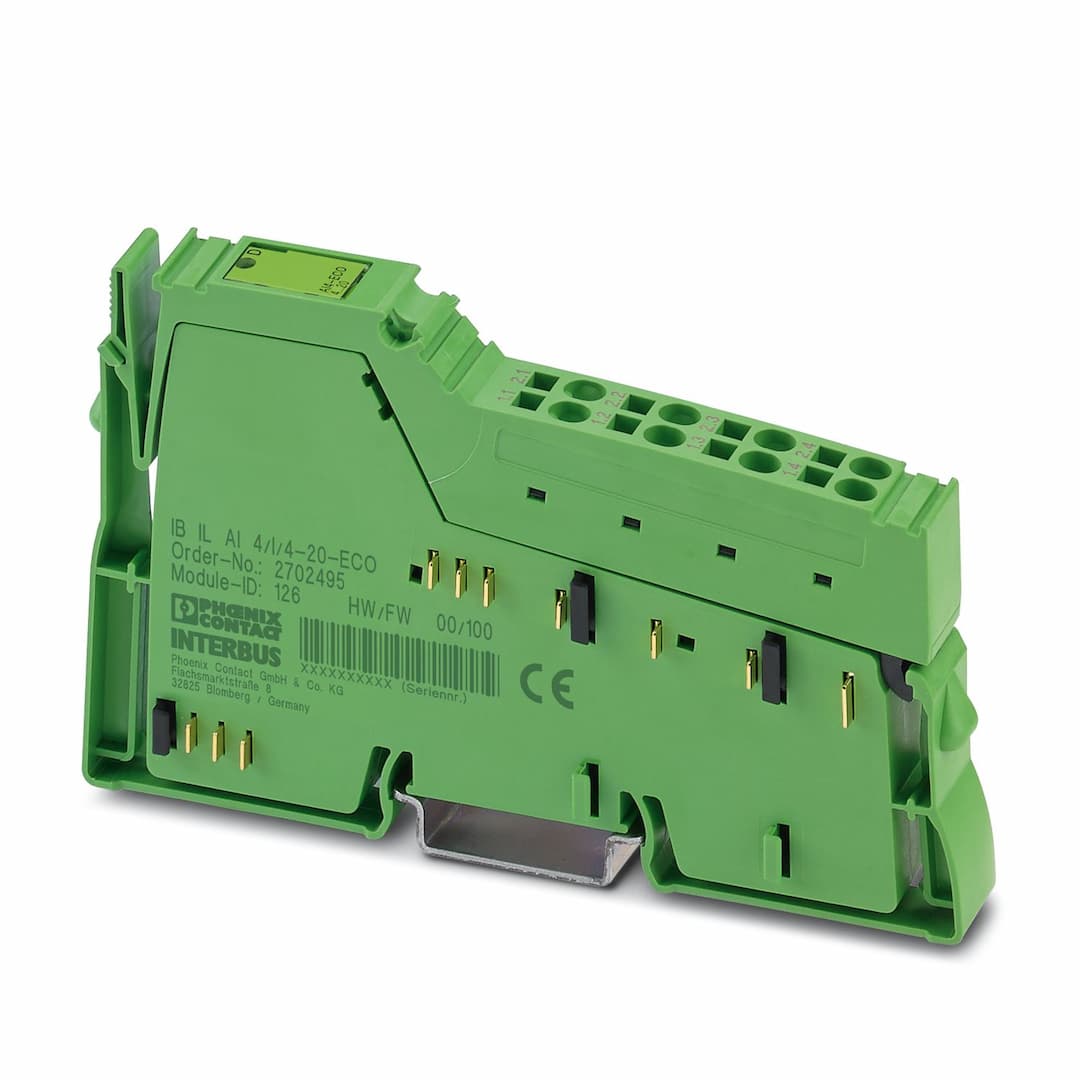

IB IL AI 4/I/4-20-ECO
Selling Points
- 1High power dissipation of 1.25 W for nominal conditions.
- 2Compatible with 24 V DC supply voltage via voltage jumper.
- 3Operating temperature range from 0°C to +55°C.
- 4Maximum current draw of 20 mA.
- 5Electrical isolation of voltage ranges for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 126 |
ID code (hex) | 7E | Length code (hex) | 04 |
Length code (dec) | 04 | Process data channel | 64 bit |
Input address area | 8 Byte | Output address area | 0 Byte |
Register length | 64 bit | Required parameter data | 1 Byte |
Required configuration data | 4 Byte | Input name | Analog inputs |
Description of the input | Single-ended inputs, current | Number of inputs | 4 |
A/D converter resolution | 12 bit | Connection method | Inline connector |
Connection technology | 2-conductor | Note regarding the connection technology | shielded, twisted pair |
Current input signal | 4 mA ... 20 mA | Input resistance current input | 200 Ω |
Data formats | Standardized representation | Measured value representation | 16 bits |
Protective circuit | Overload protection; max. ±10 V DC, corresponds to max. ±50 mA through the shunts
Transient protection; Suppressor diode | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including Inline connector | Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler
Checksum error I/O error message sent to the bus coupler |
Article revision | 04 | Maximum power dissipation for nominal condition | 1.25 W |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 70 mA
typ. 60 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 20 mA
typ. 15 mA | Test voltage: Bus logic (local bus, communications power) | 500 V AC, 50 Hz, 1 min |
Test voltage: Analog I/O | 500 V AC, 50 Hz, 1 min | Test voltage: Functional ground | 500 V AC, 50 Hz, 1 min |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | 0 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
