Product Model

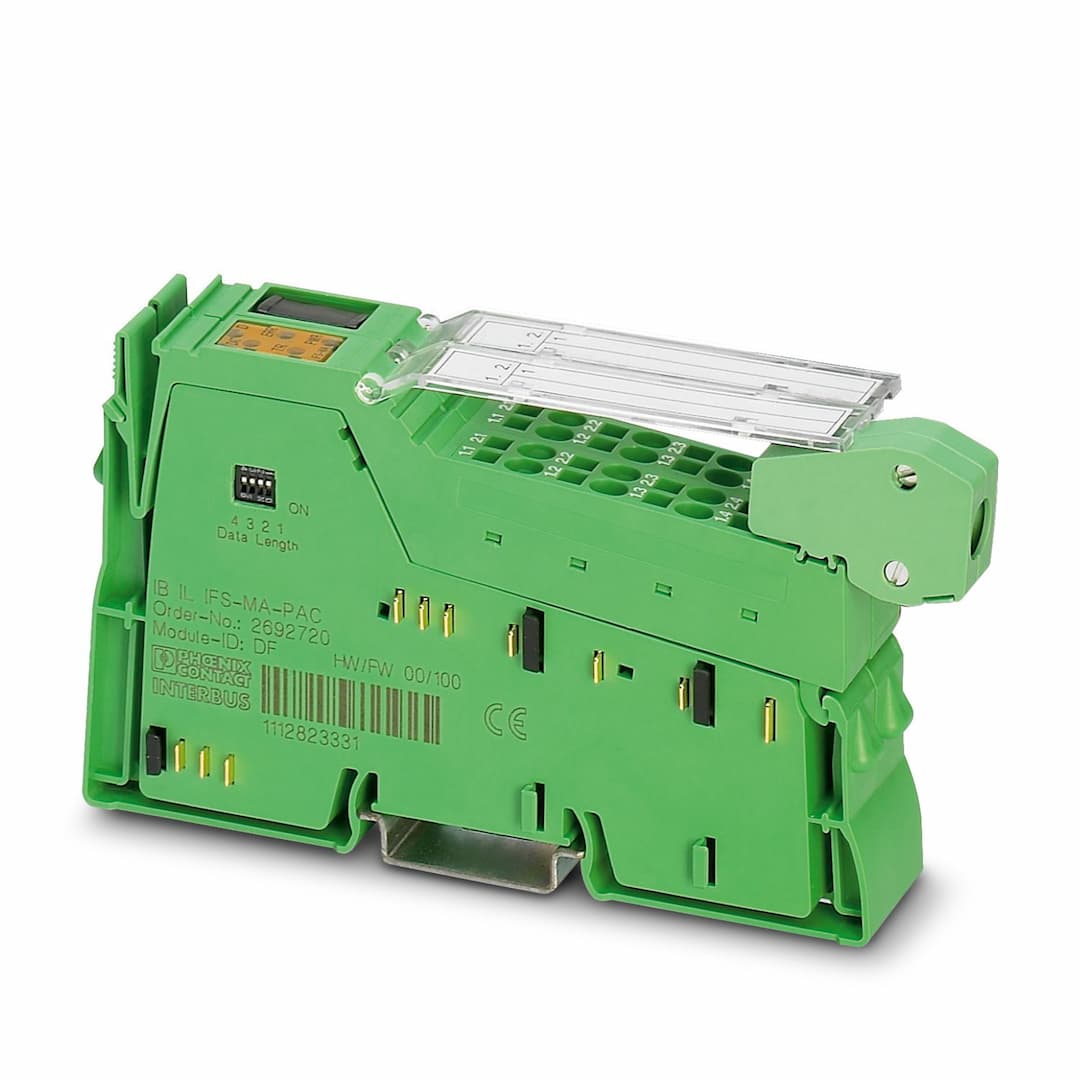

IB IL IFS-MA-PAC
Selling Points
- 1Easy integration of up to 8 INTERFACE EMM and EEM modules with firmware 1.03 or later.
- 2High transmission speed of 500 kbps for efficient data transfer.
- 3User-friendly parameterization, configuration, and diagnostics via FDT/DTM.
- 4Serial interface (S port) for connecting a memory stick and configuration backup.
- 5Robust applications in motor and energy management, switching, protection, and monitoring of drives.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 24.4 mm | Height | 135 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Connection method | Bus base module | Transmission speed | 500 kbps |
Connection method | Inline shield connector | Transmission physics | Single wire |
No. of channels | 1 | Protocols supported | CAN |
Connection method | IFS-USB-PROG-ADAPTER | No. of channels | 1 |
Protocols supported | Serial | Error messages via the bus | 9 V power supply faulty
Group error message, INTERFACE system bus error |
ID code (dec.) | 220 | ID code (hex) | DC |
Length code (hex) | 1E | Length code (dec) | 30 |
Process data channel | 60 Byte | Input address area | max. 60 Byte |
Output address area | max. 60 Byte | Register length | 64 Byte |
Required parameter data | 1 Byte | Required configuration data | 5 Byte |
Product type | I/O component | Product family | Inline |
Type | modular | Operating mode | Process data mode with up to 31 words; PCP with 1, 2, or 4 words |
Article revision | 07 | Maximum power dissipation for nominal condition | 1.25 W |
Power dissipation | 1.285 W (Module) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 78 mA
typ. 66 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC | Current draw | max. 300 mA
typ. 141 mA |
Test voltage: 24 V supply U | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V supply U | 500 V AC, 50 Hz, 1 min |
Test voltage: INTERFACE interface/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
