Product Model

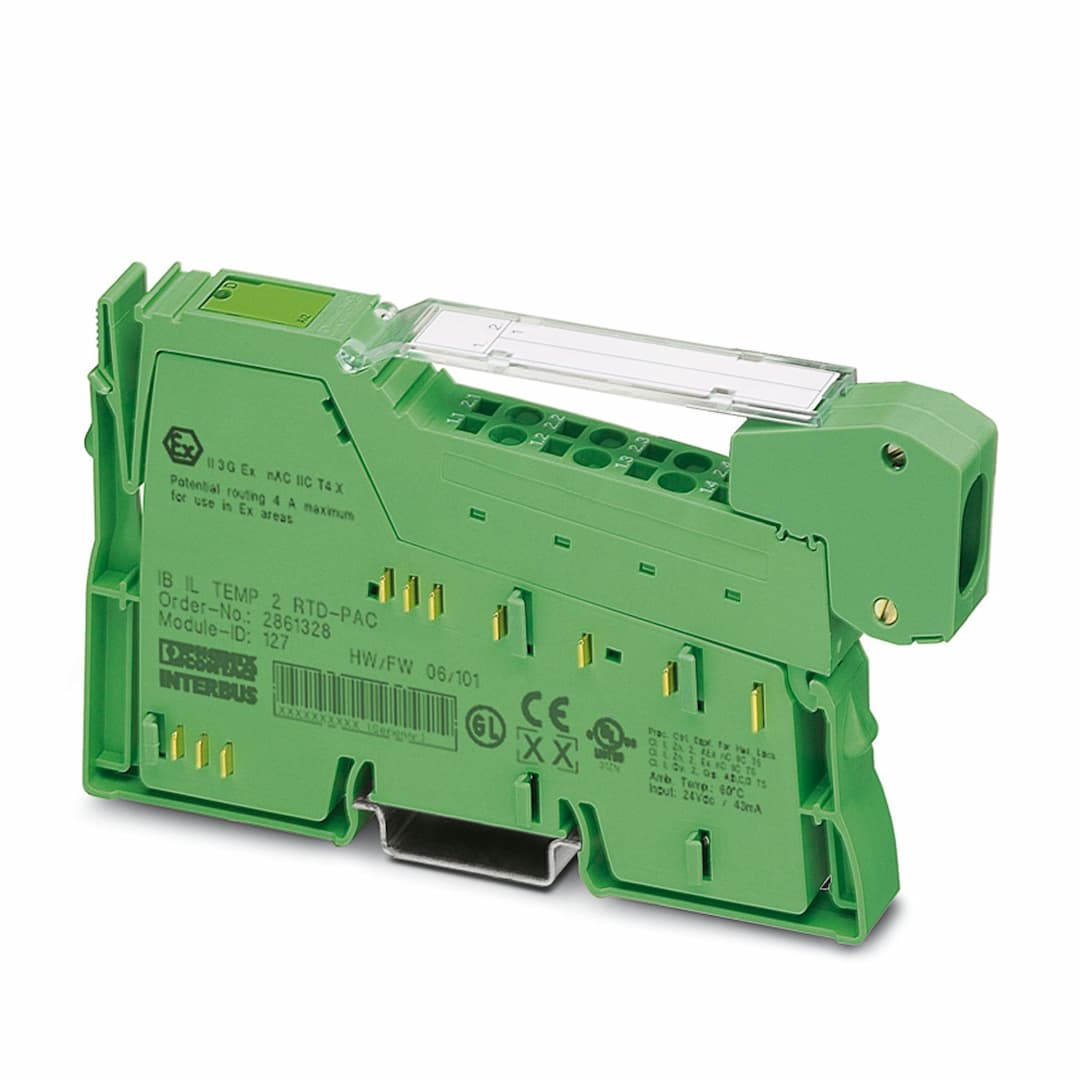

IB IL TEMP 2 RTD-XC-PAC
Selling Points
- 1Operates under extreme temperatures from -40°C to +70°C.
- 2Provides 16-bit resolution for precise temperature measurement.
- 3Compatible with Pt, Ni, Cu, and KTY sensors according to DIN and SAMA standards.
- 4Channels can be parameterized independently via the bus system.
- 5Features coated PCBs for added durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12.2 mm | Height | 136.8 mm |
Depth | 71.5 mm | Note on application | Only for industrial use |
Number of interfaces | 2 | Connection method | Inline data jumper |
Transmission speed | 500 kbps | ID code (dec.) | 127 |
ID code (hex) | 7F | Length code (hex) | 02 |
Length code (dec) | 02 | Process data channel | 32 bit |
Input address area | 4 Byte | Output address area | 4 Byte |
Register length | 32 bit | Required parameter data | 6 Byte |
Required configuration data | 4 Byte | Input name | Analog RTD inputs |
Description of the input | Input for resistive temperature sensors | Number of inputs | 2 |
Connection method | Spring-cage connection | Connection technology | 2-, 3-, 4-conductor |
Note regarding the connection technology | shielded | A/D conversion time | typ. 120 µs (per channel) |
A/D converter resolution | 16 bit (15 bit + sign bit) | Sensor types (RTD) that can be used | Pt, Ni, KTY, Cu sensors, linear resistors |
Measuring principle | Successive approximation | Measured value representation | 16 bits two's complement and other |
Linear resistance measuring range | 0 Ω ... 400 Ω
0 Ω ... 4 kΩ | Process data update | 32 ms (both channels use 3-conductor technology)
20 ms (one channel in 2-conductor technology and one channel in 4-conductor technology)
20 ms (both channels in 2-conductor technology) |
Product type | I/O component | Product family | Inline |
Type | modular | Scope of delivery | including Inline connector and labeling field |
Operating mode | Process data operation with 2 words | Special properties | Extreme conditions version |
Article revision | 02 | Overvoltage category | II (IEC 60664-1, EN 60664-1) |
Pollution degree | 2 (IEC 60664-1, EN 60664-1) | Supply voltage | 7.5 V DC (via voltage jumper) |
Current draw | max. 60 mA
typ. 43 mA | Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 18 mA
typ. 11 mA |
Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logic)/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V analog supply (analog I/O)/functional ground | 500 V AC, 50 Hz, 1 min | Connection name | Inline connector |
Connection method | Spring-cage connection | Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Connection method | Spring-cage connection |
Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Ambient temperature (operation) | -25 °C ... 55 °C (Standard)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.) | Degree of protection | IP20 |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
