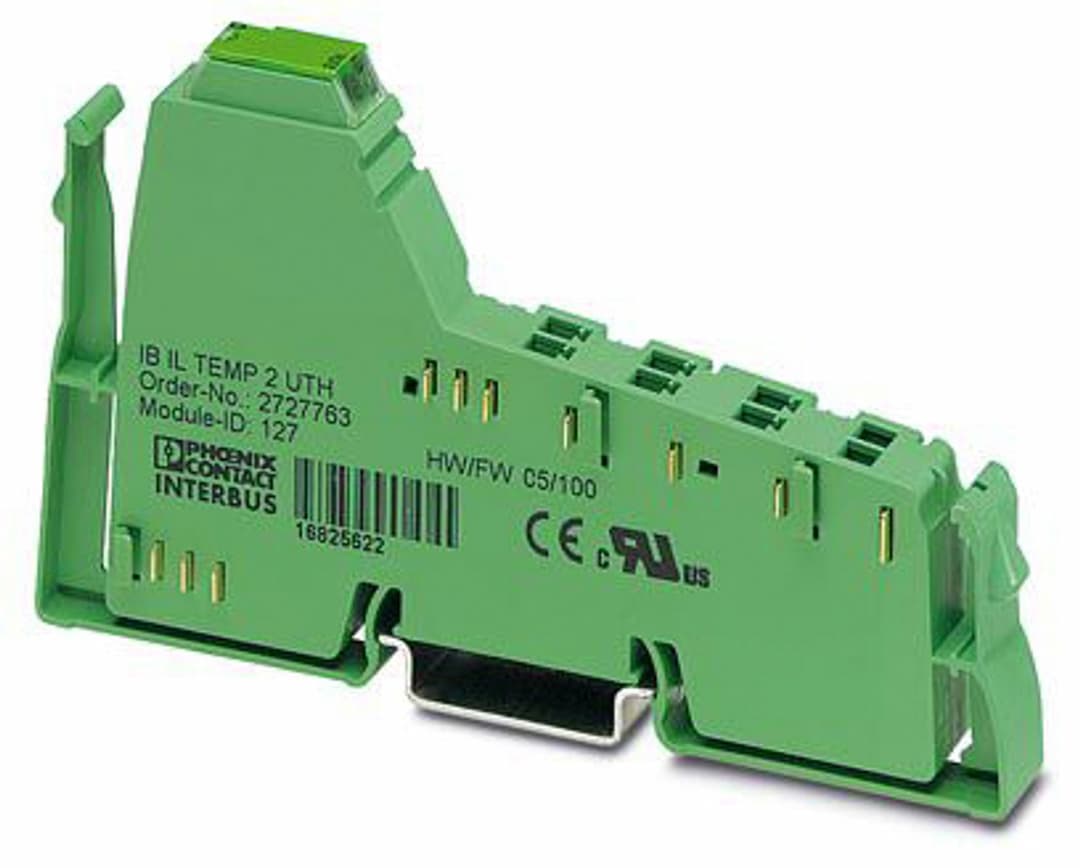

Product Model
IB IL TEMP 2 UTH
Selling Points
- 1Accurate Temperature Measurement: Supports 13 different thermocouple types and linear voltage inputs for precise temperature monitoring.
- 2Versatile Connectivity: Compatible with various thermocouples, including DIN EN and DIN standards, ensuring broad industrial applicability.
- 3Reliable Performance: Engineered for reliability and accuracy, ensuring consistent performance in temperature-dependent processes.
- 4Configurable Options: Allows for absolute or differential temperature measurement, configurable via INTERBUS protocol.
- 5Durable Design: Operates within a wide ambient temperature range (-25°C to 55°C) and is resistant to high humidity levels (10% to 95%).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | modular
Inline | Operating mode | Process data operation with 2 words |
ID code (dec.) | 127 | ID code (hex) | 2F |
Length code (hex) | 02 | Length code (dec) | 02 |
Process data channel | 32 bit | Input address area | 4 Byte |
Output address area | 4 Byte | Register length | 32 bit |
Required parameter data | 6 Byte | Power consumption | typ. 590 mW |
Supply voltage | 7.5 V DC (via voltage jumper) | Current draw | max. 60 mA
typ. 43 mA |
Supply voltage | 24 V DC (via voltage jumper) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 18 mA
typ. 11 mA | Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min | Test voltage: 7.5 V supply (bus logics)/24 V analog supply (analog I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min | Test voltage: 24 V analog supply (analog I/O)/functional ground | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min | Input name | Analog UTH inputs |
Description of the input | Inputs for thermocouples or linear voltage | Number of inputs | 2 (typ. ± 0.60 °C) |
Connection method | Spring-cage connection | Connection technology | 2-conductor (shielded) |
A/D conversion time | < 120 µs (per channel) | A/D converter resolution | 16 bit |
Sensor types that can be used (TC) | U, T, L, J, E, K, N, S, R, B, C, W, HK | Measuring principle | Successive approximation |
Measured value representation | 16 bits two's complement and other | Process data update | max. 30 ms (For both channels) |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Connection method | Inline data jumper | Transmission speed | 500 kbps |
Transmission physics | Copper | Width | 12.2 mm |
Height | 119.8 mm | Depth | 71.5 mm |
Color | green | Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) | Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
Mounting type | DIN rail mounting |
