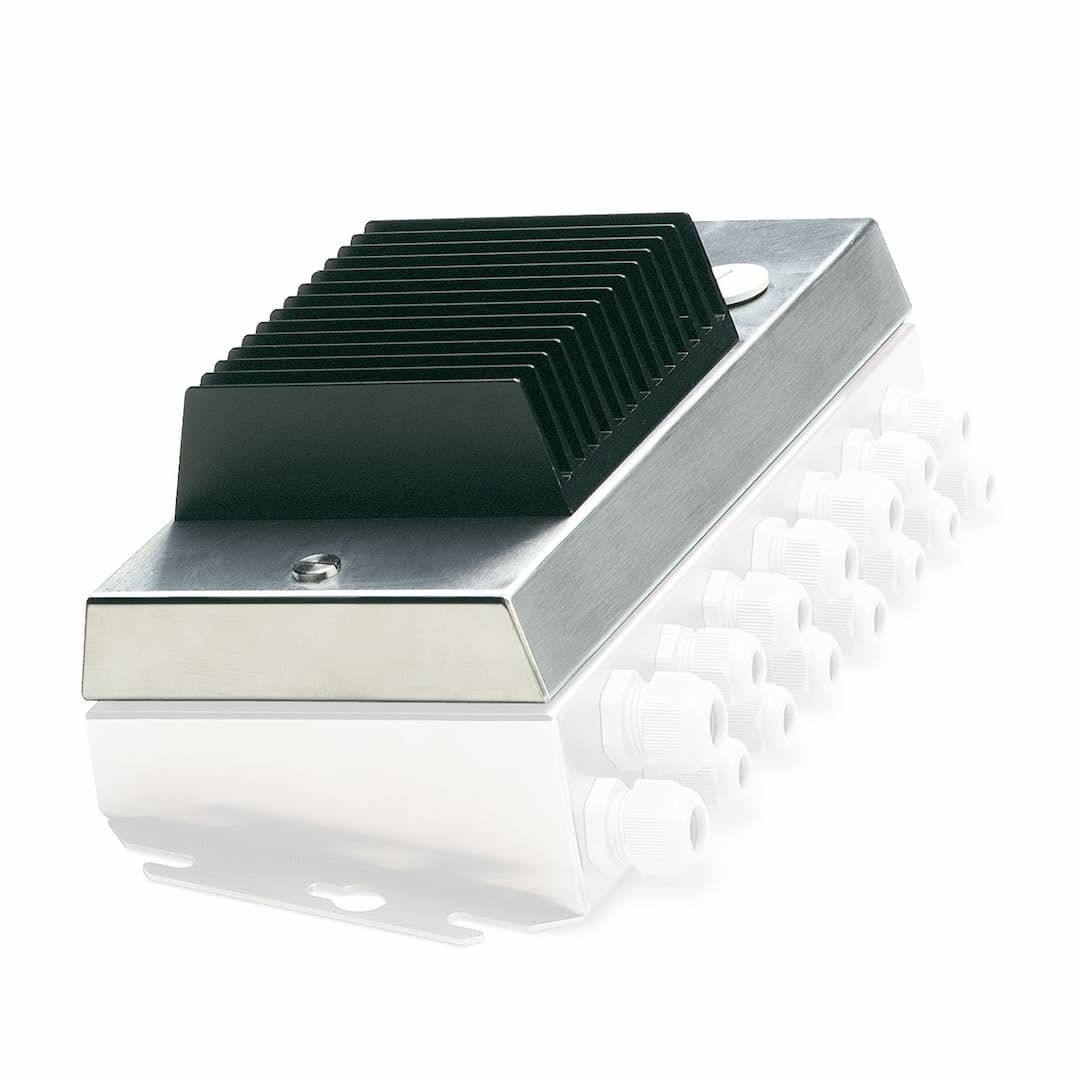

Product Model
IBS IP 400 ME-VFD 1-3A DI4F
Selling Points
- 1Efficient Motor Control: The IBS IP 400 ME-VFD 1-3A DI4F offers precise control over motor speed, enhancing efficiency and performance.
- 2Robust Construction: Built with a sheet steel housing, this variable frequency drive provides robust protection against environmental factors.
- 3Digital Input Capability: Equipped with 4 digital inputs, it allows for seamless integration with various control systems.
- 4High Protection Rating: Features IP65/67 protection, ensuring reliable operation in harsh environments.
- 5Easy Installation: Designed for easy installation with pluggable connections and removable module electronics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Type | Stand-Alone |
Connection method | POWER-COMBICON | Designation | Terminal strip X13 and X15 |
Number of positions | 2 | Permissible conductor cross section | 1.5 mm² ... 4 mm² |
Pg screw connection | Pg11 | Supply voltage | 24 V DC (U |
Supply voltage range | 20 V DC ... 30 V DC (including ripple) | Supply current | typ. 300 mA (at U |
Ripple | Permissible ripple 3.6 V | Max. current carrying capacity | 16 A |
Derating | Above 30°C: 0.3 A/K | Test voltage: Incoming/outgoing remote bus | 350 V AC, 50 Hz, 1 min |
Test voltage: Remote bus / supply voltage U | 350 V AC, 50 Hz, 1 min | Number of inputs | 4 |
Connection method | MINI COMBICON | Connection technology | 3-, 4-conductor |
Number of positions | 10 | Input voltage | 24 V DC (U |
Input voltage range "0" signal | -30 V ... 5 V (binary "0") | Input voltage range "1" signal | 13 V ... 30 V (binary "1") |
Filter time | 3 ms | Typical input current per channel | approx. 5 mA (for U |
Connection method | MINI COMBICON | Designation connection point | X30 (IN) and X31 (OUT) |
Number of positions | 10 | Permissible conductor cross section | max. 1.5 mm² (flexible) |
Width | 355 mm | Height | 180 mm |
Depth | 150 mm | Drill hole spacing | 360 mm |
Note on dimensions | Module electronics without lower part | Drill hole spacing | 360 mm |
Degree of protection | IP67 | Ambient temperature (operation) | -15 °C ... 40 °C (Without derating) |
Note | Notes on operation Line protection for the network supply line, max. 20 A. Observe derating of the POWER-COMBICON connector
Notes on operation Permitted network type TN network, TT network, IT network available on request | Air pressure (operation) | 86 kPa ... 106 kPa (up to 2000 m above sea level) |
Air pressure (storage/transport) | 86 kPa ... 106 kPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 75 °C (Temperature change 10 K/h) |
Permissible humidity (operation) | 4 % ... 100 % (non-condensing) | Permissible humidity (storage/transport) | 75 % (slight temporary condensation may sometimes appear on the housing) |
Protection class | I (IEC 61140, EN 61140, VDE 0140-1) | Air clearances and creepage distances | in accordance with EN 50178: 1998 |
Specifications may be subject to change without notice
