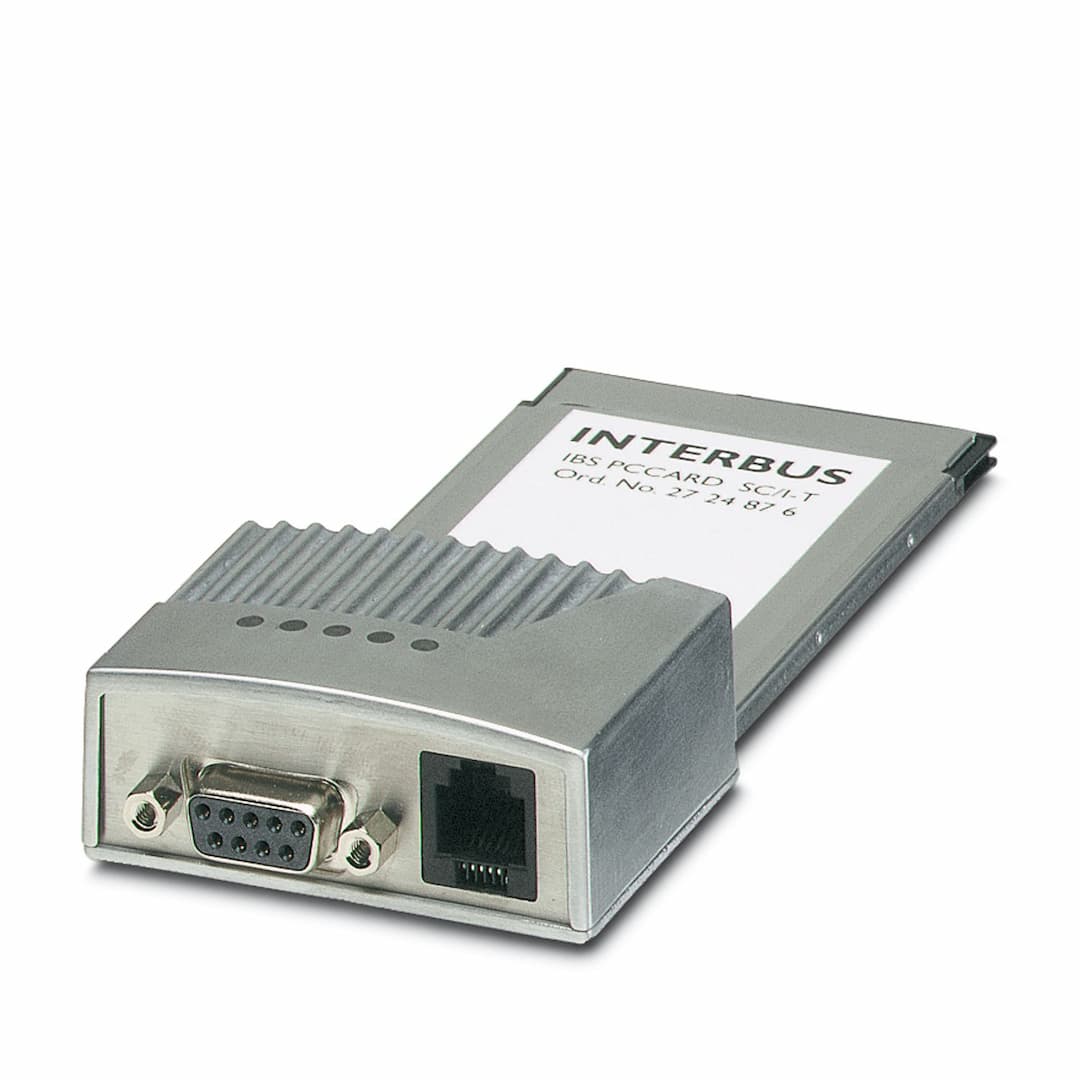

Phoenix Contact IBS PCCARD SC/I-T

Selling Points

  • 1Interbus Compatibility: Compatible with Interbus protocol IEC 61158 for robust industrial communication.
  • 2PC Card Format: Available in PC card format for easy integration into various PC systems.
  • 3Electrical Isolation: Ensures electrical isolation for safe operation in harsh industrial environments.
  • 4High Transmission Speed: Supports transmission speeds of up to 500 kbps for efficient data transfer.
  • 5Factory Warranty: Includes a factory warranty for added peace of mind and long-term reliability.
Product Details
IBS PCCARD SC/I-T
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
PC controller board
Type
PC card
Set comprises
2729211 IBS PCCARD SC SYSKIT 2729224 IBS PCCARD SC SYSKIT E
Format
PCMCIA Type 2
Control system
IBM-compatible PCs with PCMCIA slot
Operating system
Windows NT Windows 2000 Windows XP Further types on request
I/O
2 bytes I/O, PnP
Number of devices with parameter channel
max. 62
Function block
Diagnostics IO exchange PCP NV-RAM directs I/Os
Designation
HF, PF, BSA, FAIL, RUN/RDY
Monitored function
INTERBUS
Optical representation
Status display via LED
Control system
IBM-compatible PCs with PCMCIA slot
Configuration tool
CMD from version 4.5x
Diagnostics tool
DIAG+ from version 1.0x
Application interface
HLI OPC DDI
Driver
Windows NT Windows 2000 Windows XP Further types on request
Local diagnostics
HF, PF, BSA, FAIL, RUN/RDY INTERBUS Status display via LED
Transmission medium
Copper
Maximum power dissipation for nominal condition
max. 1.75 W
Supply voltage
5 V DC
Supply voltage range
± 5 % (including ripple)
Power supply connection
Via PCMCIA interface
Typical current consumption
0.35 A
Interrupts
1 IRQ, PnP
Connection method
9-pos. D-SUB female connector, with electrical isolation
Connection method
RS-232-C, 6-pos. RJACK 11 (Western plug)
Connection method
IBM-compatible PCs with PCMCIA slot, from 68 pin, from 386 SX processor
Width
53 mm
Depth
125 mm
Width / Height / Depth
125 mm / 53 mm /
Degree of protection
IP00
Ambient temperature (operation)
-25 °C ... 75 °C (acc. to EN 60204-1)
Ambient temperature (storage/transport)
0 °C ... 75 °C (acc. to EN 60204-1)
Permissible humidity (operation)
75 % (on average, 85% infrequently, non-condensing)
Air pressure (operation)
860 hPa ... 1080 hPa (up to 2000 m above sea level)
Air pressure (storage/transport)
660 hPa ... 1080 hPa (up to 3000 m above sea level)
Mounting type
In the host system

Specifications may be subject to change without notice
