Product Model

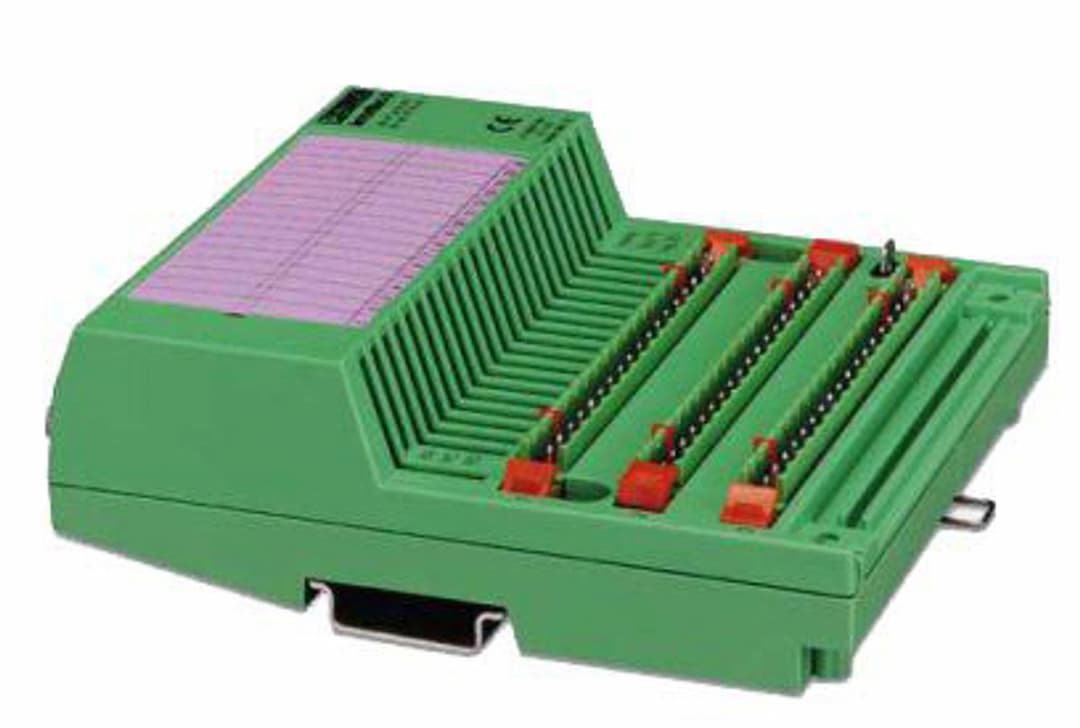

IBS RT 24 DIO 16/ 8-2A-T
Selling Points
- 1Compact design with dimensions 125 mm x 44 mm x 146 mm.
- 2High reliability with ±24 V DC peripheral voltage and 150 mA typical current consumption.
- 3Versatile connectivity options including D-SUB-9 and INTERBUS-Fernbus interfaces.
- 4Fast signal switching times of 3 ms for both rising and falling edges.
- 5Suitable for industrial applications with 2-wire to 4-wire connection options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 125 mm | Height | 44 mm |
Length | 146 mm | Connection method | D-SUB-9 |
Number of inputs | 16 | Input voltage range "0" signal | -3 V DC ... 5 V DC |
Input voltage range "1" signal | 11 V DC ... 30 V DC | Connection technology | 2-conductor (3-, 4-conductor as an option) |
Typical input current per channel | 6 mA (at 24 V DC) | Number of outputs | 8 |
Output voltage | Us (1.2) = 24 V DC, 100 mA all outputs "1" | Product type | I/O component |
I/O voltage | ± 24 V DC 5 % (ripple) | I/O voltage range | 19.2 V DC ... 30 V DC |
Typical current consumption | 150 mA |
Specifications may be subject to change without notice
