Product Model

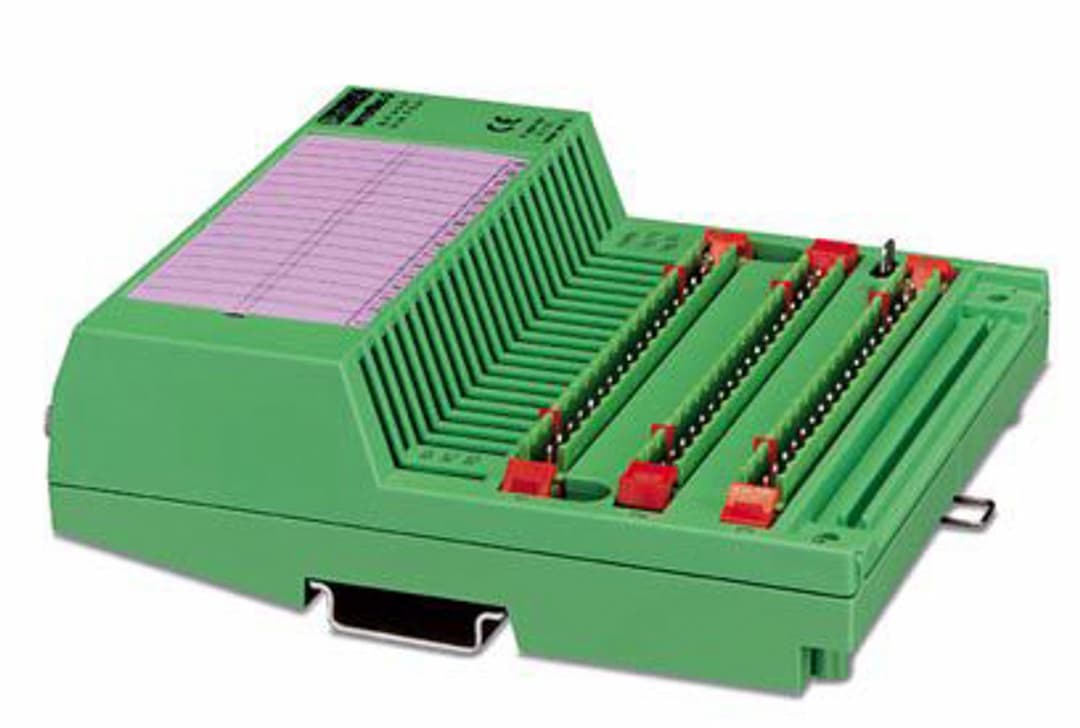

IBS RT 24 DIO 8/8R-T
Selling Points
- 1The IBS RT 24 DIO 8/8R-T is designed to be extremely compact, integrating the bus terminal function for efficient use in machines and systems.
- 2Equipped with 8 digital inputs and 8 digital outputs, this module supports 24 V DC and is suitable for various industrial applications.
- 3The module features plug-in terminals and D SUB connectors for the INTERBUS connection, making wiring vertical and easy to manage.
- 4The status LEDs and bus diagnostic displays provide real-time information about the module's status, ensuring quick troubleshooting.
- 5Built with new original components, this module offers reliable performance and durability, backed by a 1-year warranty.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 125 mm | Height | 44 mm |
Length | 146 mm | Color | green |
Connection method | D-SUB-9 | Number of inputs | 8 |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Connection technology | 3-conductor (4-conductor as an option) | Typical input current per channel | 6 mA (at 24 V DC) |
Number of outputs | 8 | Output voltage | up to 115 V DC, Us (3.4) (w/o external load) or L (3.4) = 24 ... 230 V AC |
Product type | I/O component | Power dissipation | 4 W |
I/O voltage | ± 24 V DC 5 % (ripple) | I/O voltage range | 19.2 V DC ... 30 V DC |
Typical current consumption | 70 mA |
Specifications may be subject to change without notice
