Product Model

IBS USC4-1

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

17825

In Stock
Last updated: 2025/4/30
View Specifications

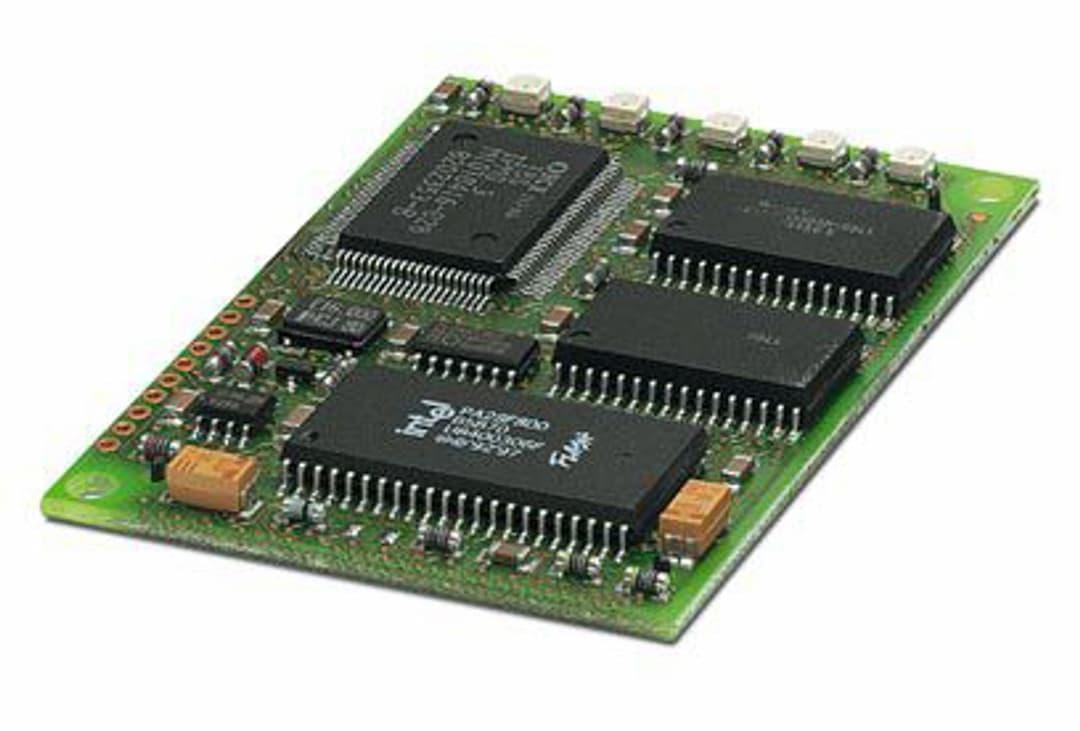

Phoenix Contact IBS USC4-1

Selling Points

  • 1Advanced Diagnostics: The IBS USC4-1 provides detailed diagnostic information for efficient troubleshooting and maintenance.
  • 2Robust Design: Built to withstand harsh industrial environments with a durable housing and reliable components.
  • 3Easy Installation: Simple setup and integration with Generation 4 INTERBUS master systems.
  • 4Compliance Standards: Meets EU RoHS and China RoHS substance requirements, ensuring environmental safety.
  • 5User-Friendly Manuals: Includes comprehensive user manuals in English and German for easy operation and maintenance.
Product Details
IBS USC4-1
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Type of housing/design
Daughterboard
Protocol chip
IBS IPMS 3
IC power supply voltage
5 V DC ±10 %
Typical current consumption
200 mA (without extensions)
Connection method
Remote bus
Connection method
60-pos. basic connector and 40-pos. extension connector for -Power supply, -Diagnostics, -Configuration, -DPM interface, -Memory extension
Width
50 mm
Length
70 mm
Ambient temperature (operation)
0 °C ... 70 °C (at max. 75 % humidity during operation)

Specifications may be subject to change without notice
