Product Model

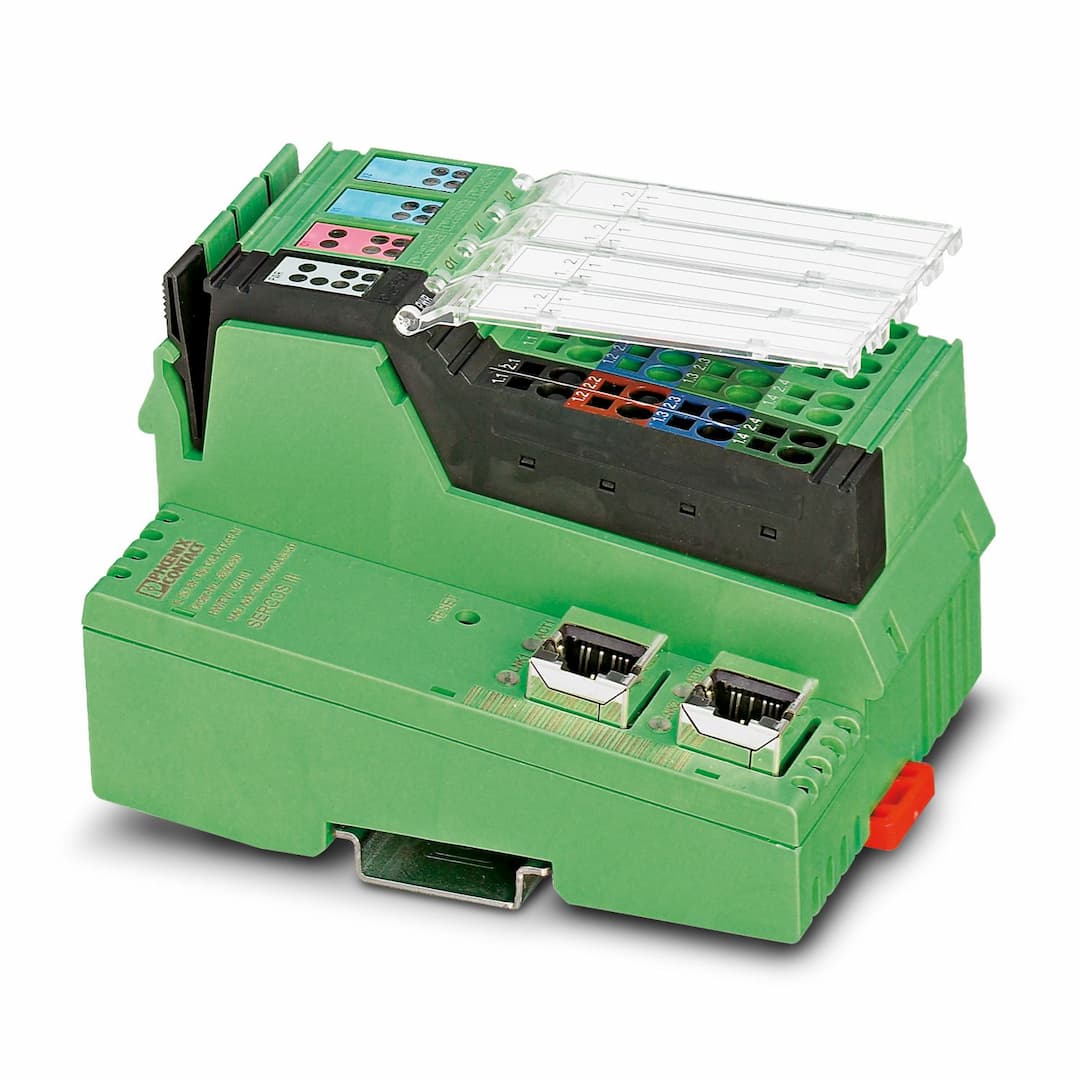

IL S3 BK DI8 DO4 2TX-PAC
Selling Points
- 1Comprehensive I/O Connectivity: Equipped with 8 digital inputs and 4 digital outputs for seamless communication in Sercos III networks.
- 2Robust Design: Built to withstand ambient temperatures from -25°C to 60°C, ensuring reliable operation in various environments.
- 3Efficient Power Supply: Powered by a 24 V DC supply voltage, with a maximum output current of 500 mA per channel.
- 4Easy Installation: Includes Inline plugs for connecting supply and I/Os, along with labeling fields for individual terminal labeling.
- 5Advanced Features: Supports up to 61 Inline terminals, automatic speed detection of the system bus, and a minimum Sercos III cycle time of 250 µs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 80 mm | Height | 119.8 mm |
Depth | 71.5 mm | Note on dimensions | Specfications with connectors |
Note on application | Only for industrial use | Number of interfaces | 2 |
Connection method | RJ45 jack | Number of interfaces | 1 |
Connection method | Inline data jumper | Transmission speed | 500 kbps / 2 Mbps (automatic detection, no combined system) |
Equipment type | Sercos slave | Number of supported devices | max. 63 (per station) |
Number of local bus devices that can be connected | max. 63 | Number of devices with parameter channel | max. 16 |
Number of supported branch terminals with remote bus branch | 0 | ID code (hex) | none |
Input name | Digital inputs | Description of the input | EN 61131-2 type 1 |
Number of inputs | 8 | Connection method | Inline connector |
Connection technology | 3-conductor | Input voltage | 24 V DC |
Input voltage range "0" signal | -30 V DC ... 5 V DC | Input voltage range "1" signal | 15 V DC ... 30 V DC |
Nominal input voltage U | 24 V DC | Nominal input current at U | typ. 3 mA |
Typical input current per channel | typ. 3 mA | Typical response time | approx. 500 µs |
Protective circuit | Reverse polarity protection; Suppressor diode | Output name | Digital outputs |
Connection method | Inline connector | Connection technology | 3-conductor |
Number of outputs | 4 | Protective circuit | Short-circuit and overload protection; Freewheeling circuit in the output driver |
Output voltage | 24 V DC -1 V (At nominal current) | Maximum output current per module | max. 2 A |
Nominal output voltage | 24 V DC | Output voltage when switched off | max. 500 mV |
Output current when switched off | max. 500 µA (When not loaded, a voltage can be measured even at an output that is not set.) | Nominal load, inductive | 12 VA (1.2 H, 48 Ω) |
Nominal load, lamp | 12 W | Nominal load, ohmic | 12 W |
Reverse voltage resistance to short pulses | Reverse voltage proof | Behavior with overload | Auto restart |
Behavior with inductive overload | Output can be destroyed | Behavior at voltage switch-off | The output follows the power supply without delay |
Signal delay | < 40 µs (t
< 50 µs (t
< 350 µs (t
< 235 µs (t | Overcurrent shut-down | min. 0.7 A |
Output current with ground connection interrupt when switched off | max. 25 mA | Product type | I/O component |
Product family | Inline | Type | modular |
Scope of delivery | including inline connectors, marking fields, and end plate | No. of channels | 12 |
Diagnostics messages | Short-circuit or overload of the digital outputs yes
Sensor supply failure yes
Failure of the actuator supply yes | Article revision | 21 |
Maximum power dissipation for nominal condition | 6.8 W | Protective circuit | Surge protection, protection against polarity reversal of the supply voltage; 35 V suppressor diode |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 1 A (with max. number of connected I/O terminal blocks)
typ. 60 mA (without connected I/O terminal blocks) | Supply voltage | 7.5 V DC |
Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
Current draw | max. 8 A
min. 3 mA (without connected peripherals) | Supply voltage | 24 V DC (via Inline connector) |
Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) | Current draw | max. 8 A
min. 3 mA (without connected peripherals) |
Connection name | Inline connector | Connection method | Spring-cage connection |
Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
Stripping length | 8 mm | Ambient temperature (operation) | -25 °C ... 60 °C |
Degree of protection | IP20 | Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | DIN rail mounting
DIN rail mounting |
Specifications may be subject to change without notice
