Product Model

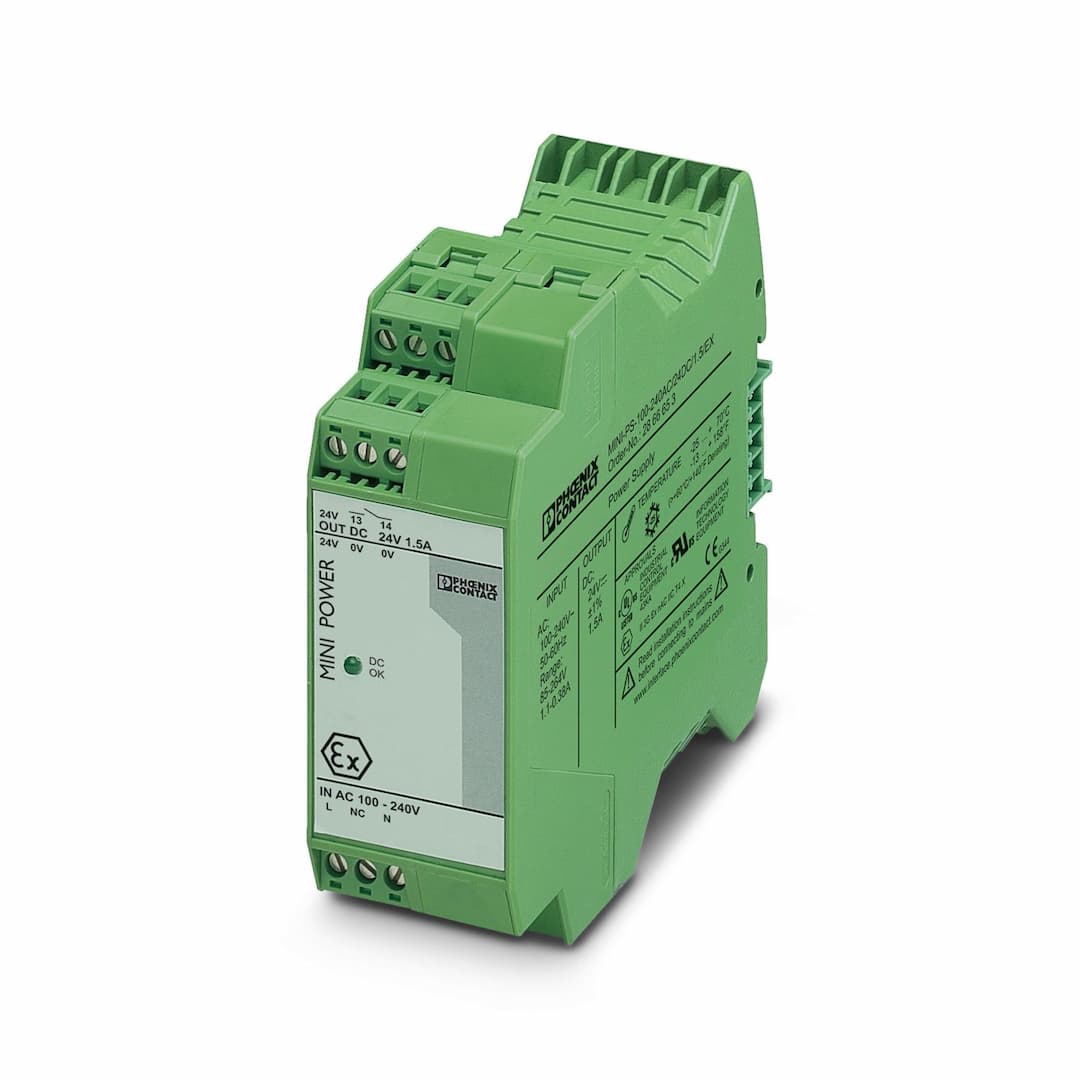

MINI-PS-100-240AC/24DC/1.5/EX
Selling Points
- 1High system availability with adjustable output characteristic curve.
- 2Robust design with IP20 protection, suitable for harsh environments.
- 3Compact size for easy integration into control cabinets and panels.
- 4Wide input voltage range from 100VAC to 240VAC for universal use.
- 5Preventive function monitoring ensures early detection of critical states.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC |
Input voltage range AC | 85 V AC ... 264 V AC | Voltage type of supply voltage | AC |
Inrush current | < 15 A (typical) | Inrush current integral (I | 0.6 A |
AC frequency range | 45 Hz ... 65 Hz | Mains buffering time | typ. 35 ms (120 V AC)
typ. 150 ms (230 V AC) |
Current consumption | 0.75 A (120 V AC)
0.45 A (230 V AC) | Nominal power consumption | 88 VA |
Typical response time | < 0.5 s | Input fuse | 3.15 A (slow-blow, internal) |
Permissible backup fuse | B6 B10 B16 AC: | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
Recommended breaker for input protection | 6 A ... 16 A (AC: Characteristics B, C, D, K) | Efficiency | > 84 % (for 230 V AC and nominal values) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Nominal output current (I | 1.5 A (-25 °C ... 60 °C) | POWER BOOST (I | 2 A (-25 °C ... 40 °C) |
Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | 35 V DC |
Residual ripple | < 40 mV | Output power | 36 W |
Peak switching voltages nominal load | < 20 mV | Maximum no-load power dissipation | 1.5 W |
Power loss nominal load max. | 6.5 W | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Output description | U |
Maximum switching voltage | ≤ 24 V | Output voltage | + 24 V DC (Signal) |
Maximum inrush current | max. 44 mA | Continuous load current | ≤ 40 mA |
Output description | Relay contact, U | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Screw thread | M4 |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Relay contact |
Status display | "DC OK" LED green | Note on status display | U |
Status display | "DC OK" LED green | Note on status display | U |
Insulation voltage input/output | 4 kV AC (type test)
3 kV AC (routine test) | Insulation voltage input / PE | 4 kV AC (type test)
3 kV AC (routine test) |
Product type | Power supply | Product family | MINI POWER |
MTBF (IEC 61709, SN 29500) | > 2789000 h (40 °C) | Article revision | 02 |
Protection class | II (in closed control cabinet) | Overvoltage category | III |
Degree of pollution | 2 | Width | 35 mm |
Height | 99 mm | Depth | 95 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 100 % (condensation permitted) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Rail applications | EN 50121-4 |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard – Safety extra-low voltage | EN 60950-1 (SELV) and EN 60204-1 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | Standards/specifications | EN 60079-0 |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 | ATEX | II 3 G Ex nA nC IIC T4 Gc X |
SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Specifications may be subject to change without notice
