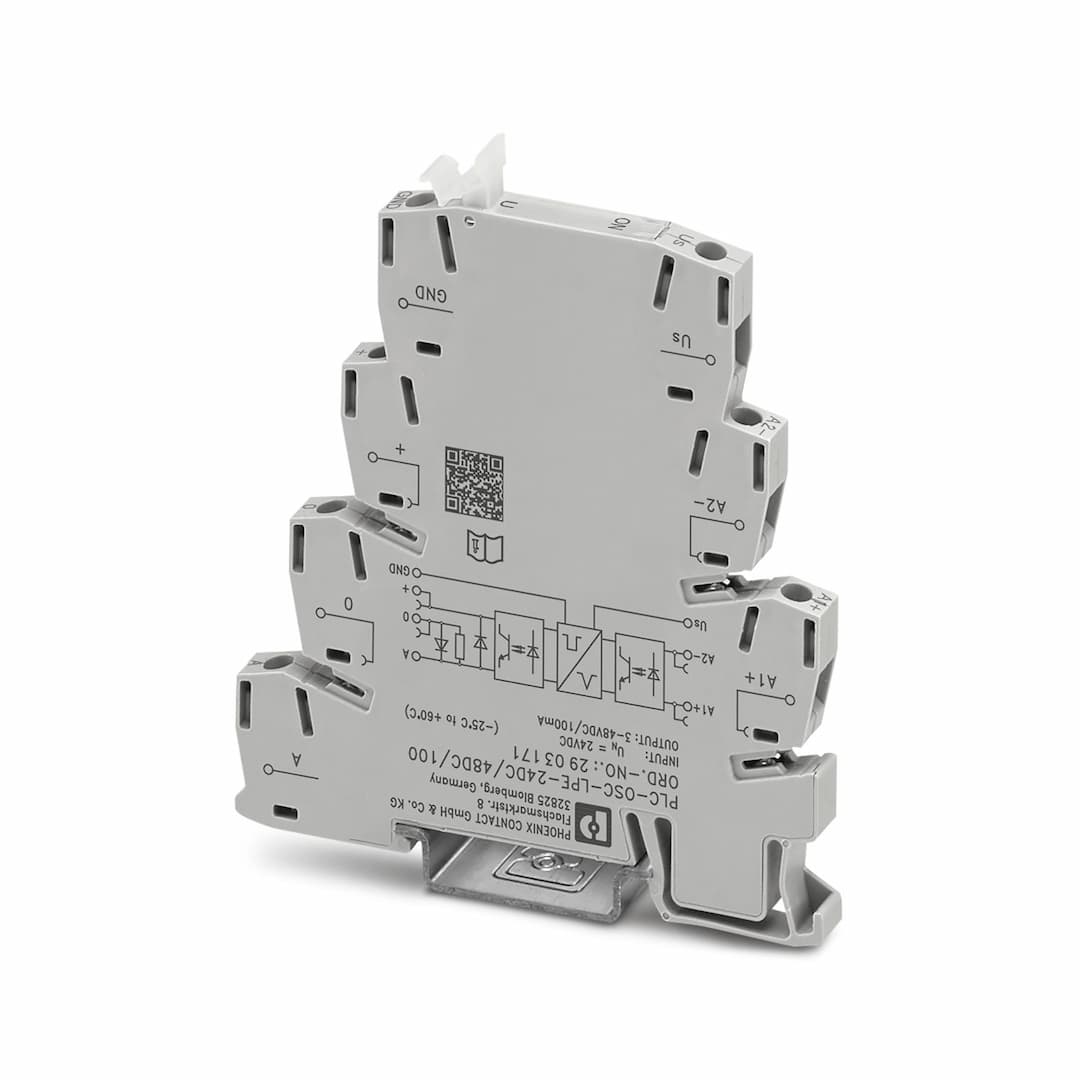

Product Model
PLC-OSC-LPE-24DC/48DC/100
Selling Points
- 1Set input pulse times from 2 ms to 1280 ms with DIP switch settings.
- 2Built with a solid, screw connection and designed for high reliability in industrial environments.
- 3Simplify configuration with clear DIP switch settings for function and input pulse time.
- 4Operates with input voltage 24 V DC and output voltage 3 - 48 V DC/100 mA.
- 5Meets EMC class A standards and includes surge voltage protection for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | PLC-INTERFACE |
Application | Pulse stretching | Operating mode | 100% operating factor |
Date of last data management | 16.09.2024 | Article revision | 06 |
Insulation | Basic insulation | Overvoltage category | II |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.07 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 50 V DC |
Rated surge voltage | 0.5 kV | Rated control circuit supply voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated control supply current I | 13 mA (Input low, output low)
19 mA (Input high, output high) |
Rated actuating voltage U | 24 V DC | Rated actuating current I | 3 mA |
Input voltage range | 19.2 V DC ... 28.8 V DC | "0" signal switching threshold in reference to U | < 0.4 |
"1" signal switching threshold in reference to U | > 0.8 | Status display | LED (yellow) |
Operating voltage display | Green LED | Protective circuit | Reverse polarity protection
Surge protection |
Surge voltage protection | > 33 V DC | Contact switching type | 1 N/O contact |
Design of digital output | electronic | Output voltage range | 3 V DC ... 48 V DC |
Limiting continuous current | 100 mA | Surge voltage protection | > 54 V DC |
Voltage drop at max. limiting continuous current | < 1 V DC | Output circuit | 3-conductor, ground-referenced |
Protective circuit | Reverse polarity protection
Surge protection
Free running | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
Width | 6.2 mm | Height | 80 mm |
Depth | 94 mm | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 75 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
