Product Model

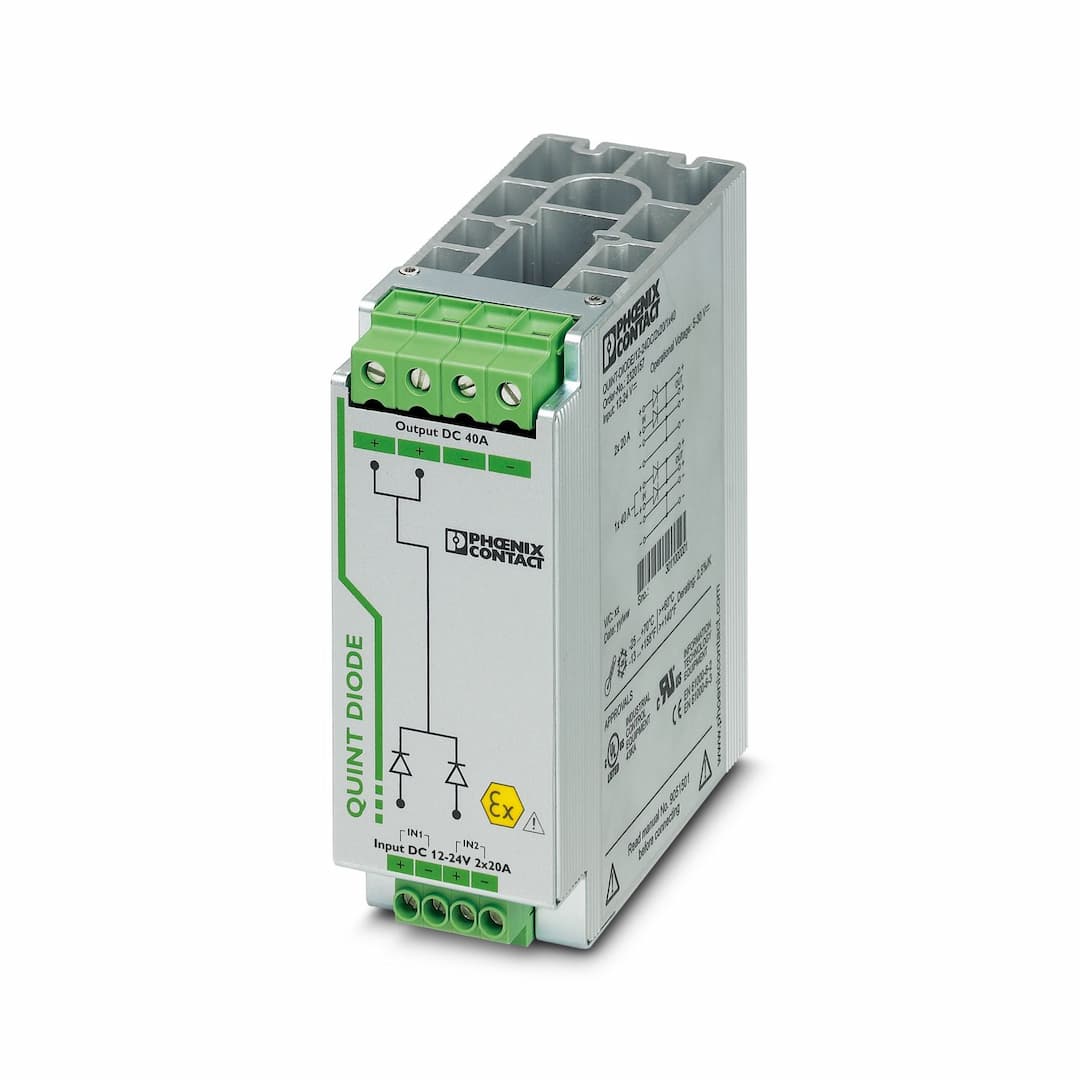

QUINT-DIODE/12-24DC/2X20/1X40
Selling Points
- 1Consistent redundancy up to the load ensures system reliability.
- 2Easy installation by snapping onto the DIN rail.
- 3Decoupling power supply units for 100% isolation.
- 4Load currents up to 60A are possible.
- 5IP20 protection rating for safe operation in potentially explosive areas.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 30 V DC |
Voltage type of supply voltage | DC | Reverse polarity protection | < yes60 V |
Nominal input current (I | 2x 20 A (-25 °C ... 60 °C)
1x 40 A (-25 °C ... 60 °C) | Maximum current I | 2x 30 A (-25 °C ... 40 °C)
1x 60 A (-25 °C ... 40 °C) |
Transient surge protection | Varistor | Voltage drop, input/output | typ. 0.5 V |
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 10 V DC ... 30 V DC |
Input voltage range DC | 10 V DC ... 30 V DC | Efficiency | > 97 %
> 97 % |
Nominal output voltage | U | Nominal output current (I | 40 A (Increasing power)
20 A (Redundancy) |
Derating | 60 °C ... 70 °C (2.5 %/K) | Power loss nominal load max. | 10 W (I |
Connection in series | no | Derating | 60 °C ... 70 °C 2.5 %/K |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 12 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 16 mm² |
Conductor cross section AWG min. | 10 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Screw thread | M4 |
Tightening torque, min | 1.2 Nm | Tightening torque max | 1.5 Nm |
Insulation voltage input, output / housing | 1000 V | Product type | Redundancy module |
Product family | QUINT DIODE | MTBF (IEC 61709, SN 29500) | 40000000 h |
LED | no | Article revision | 08 |
Protection class | III | Degree of pollution | 2 |
Width | 50 mm | Height | 130 mm |
Depth | 125 mm | Horizontal pitch | 2.8 Div. |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: P |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Housing material | Steel sheet, zinc-plated |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 5000 m |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 50178 | Standard – Safety extra-low voltage | IEC 60950-1 (SELV) and EN 60204-1 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
ATEX | II 3 G Ex ec IIC T4 Gc
DEKRA 20ATEX0041 X | IECEx | Ex ec IIC T4 Gc
IECEx DEK 20.0022X |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Standards/regulations | EN 61000-4-5 | Input | 2 kV (level 3 - asymmetrical: conductor to ground)
1 kV (Level 2 - symmetrical: Conductor to conductor) |
Output | 2 kV (level 3 - asymmetrical: conductor to ground)
1 kV (Level 2 - symmetrical: Conductor to conductor) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 2 kV (level 3 - asymmetrical: conductor to ground)
1 kV (Level 2 - symmetrical: Conductor to conductor) |
Output | 2 kV (level 3 - asymmetrical: conductor to ground)
1 kV (Level 2 - symmetrical: Conductor to conductor) | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
