Product Model

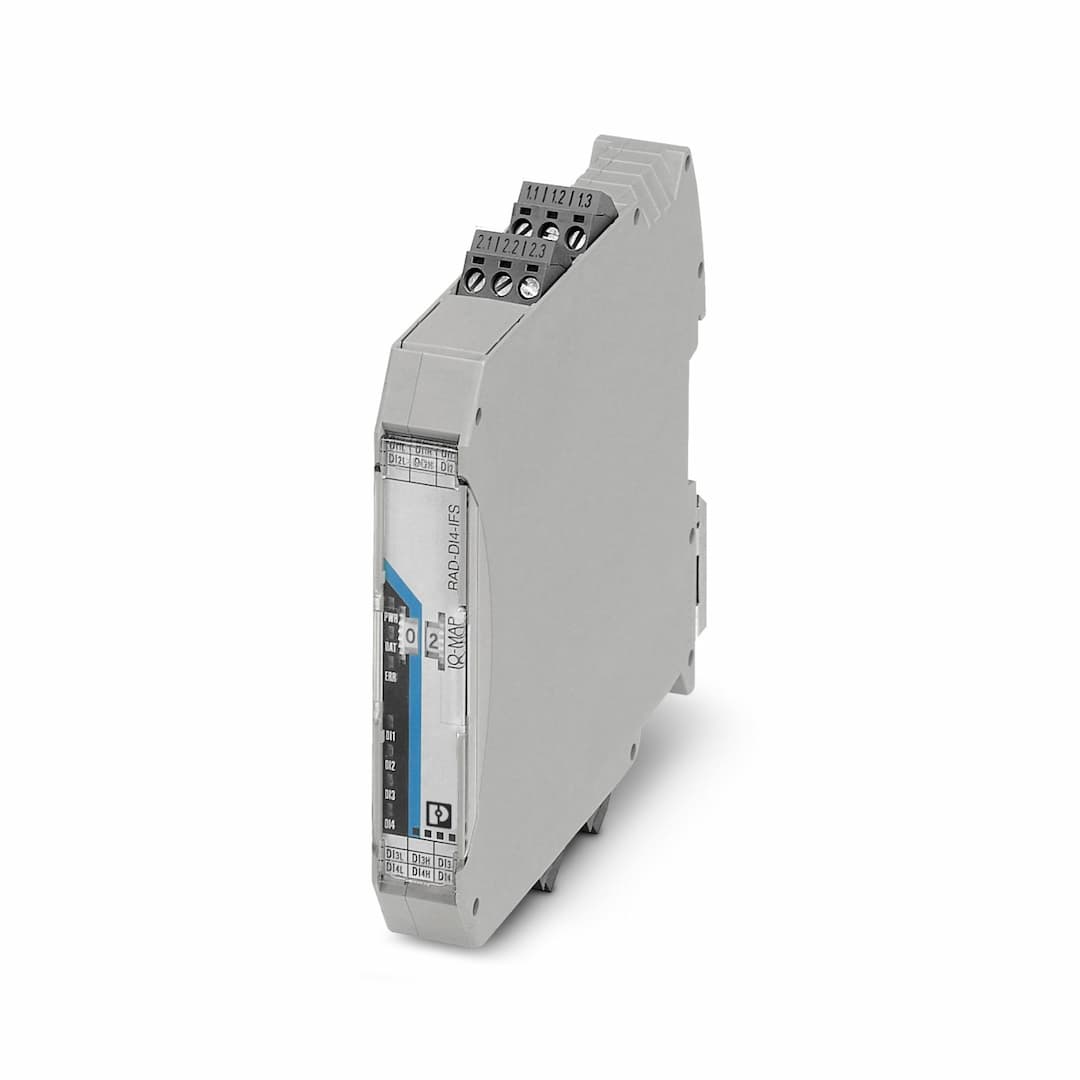

RAD-DI4-IFS
Selling Points
- 1Supports inputs of 0 to 250 V AC/DC.
- 2Ensures safe and reliable operation.
- 3Operates from -40 °C to +70 °C.
- 4Hot swap capability for seamless operation.
- 5Meets safety standards for hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Extension module |
MTTF | 1766 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
653 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
250 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | Article revision | 09 |
Overvoltage category | II | Degree of pollution | 2 |
Electrical isolation | 300 V (Rated insulation voltage (in each case between the digital inputs // TBUS supply, reinforced insulation in accordance with EN/IEC 61010))
300 V (Rated insulation voltage (to adjacent devices, basic insulation in accordance with EN/IEC 61010)) | Test voltage for digital I/Os | 2.5 kV AC (50 Hz, 1 min.) |
Maximum power dissipation for nominal condition | 0.264 W | Transient surge protection | yes |
Supply voltage range | 19.2 V DC ... 30.5 V DC (DIN rail connector) | Max. current consumption | 11 mA (At 24 V DC, at 25°C) |
Max. current consumption | 1 mA | Description of the input | Digital input |
Number of inputs | 4 | Voltage input signal | 0 V AC/DC ... 250 V AC/DC |
Switching level "0" signal | 0 V AC/DC ... 4 V AC/DC (Low-voltage input)
0 V AC/DC ... 20 V AC/DC (High-voltage input) | Switching level "1" signal | 10 V AC/DC ... 50 V AC/DC (Low-voltage input)
50 V AC/DC ... 250 V AC/DC (High-voltage input) |
Input frequency | ≤ 2 Hz | Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Status display | LED supply voltage, PWR (green)
Green LED (bus communication, DAT)
LED periphery error, ERR (red)
Yellow LED (digital input, DI1)
Yellow LED (digital input, DI2)
Yellow LED (digital input, DI3)
Yellow LED (digital input, DI4) | Width | 17.5 mm |
Height | 113 mm | Depth | 114.5 mm |
Color (Housing) | gray (RAL 7042) | Material (Housing) | PA 6.6-FR |
Flammability rating according to UL 94 | V0 | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C
-40 °F ... 158 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C
-40 °F ... 185 °F |
Altitude | 2000 m | Permissible humidity (operation) | 20 % ... 85 % |
Permissible humidity (storage/transport) | 20 % ... 85 % | Shock | 16g, 11 ms |
Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | IBExU 15 ATEX B008 X |
Note | Please follow the special installation instructions in the documentation! | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx IBE 13.0019X | Identification | 2Ex nA nC IIC T4 Gc X |
Certificate | RU C-DE.HB49.B.00033/20 | Identification | 508 Listed
Class I, Div. 2, Groups A, B, C, D T4A
Class I, Zone 2, IIC T4 |
Identification | Ex ec IIC T4 Gc | Certificate | 2022122310115625 |
Certificate | R-R-PCK-2901535 | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Standard designation | EMC Directive 2014/30/EU |
Standards/specifications | EN 61000-6-2 | Standard designation | EMC Directive 2014/30/EU |
Standards/specifications | EN 61000-6-4 | Standard designation | Ex Directive (ATEX) |
Standards/specifications | EN 60079-0 | Standard designation | Ex Directive (ATEX) |
Standards/specifications | EN 60079-15 | Mounting type | DIN rail mounting |
Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
