Product Model

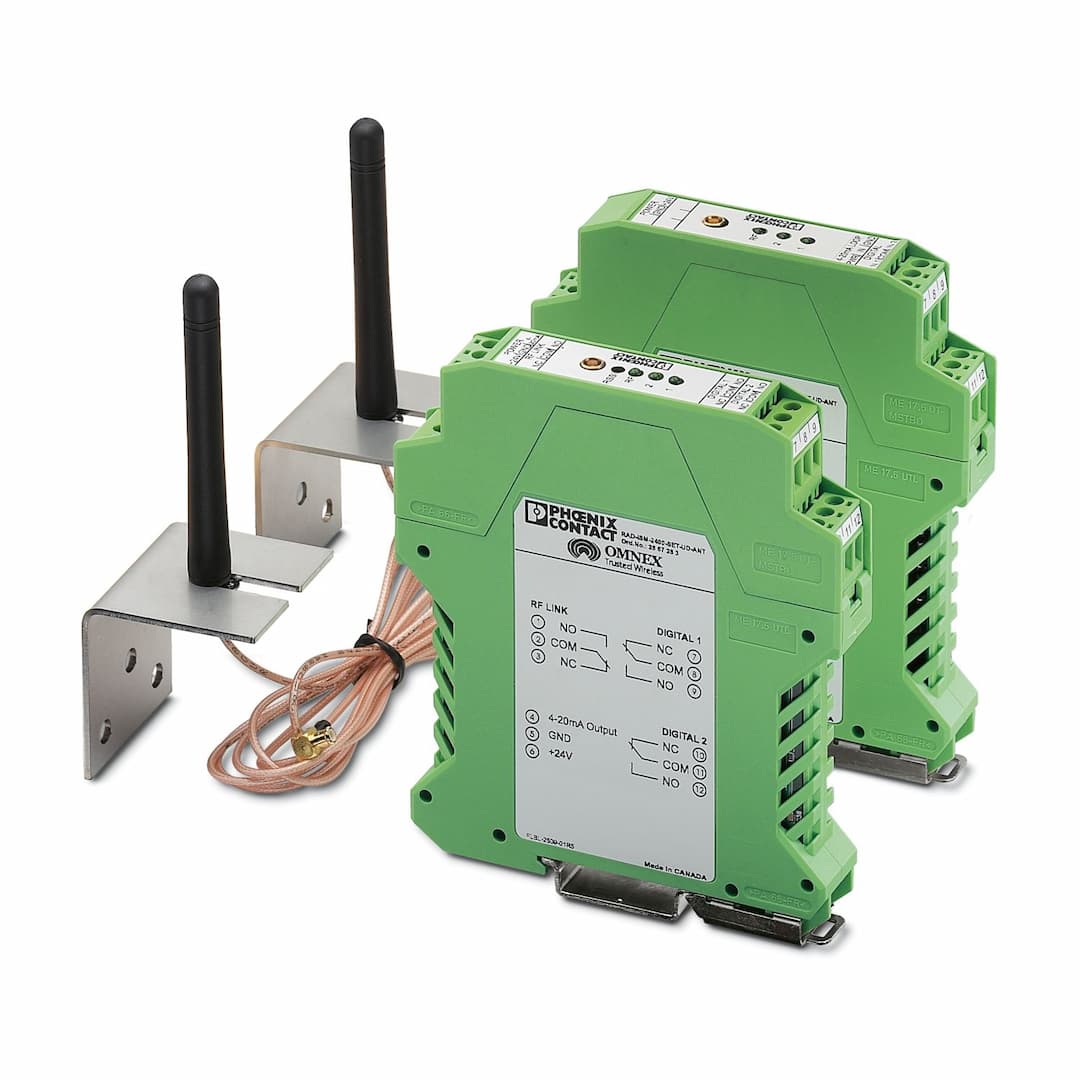

RAD-ISM-2400-SET-UD-ANT
Selling Points
- 1Utilizes frequency hopping method for reliable data transmission.
- 2Operates in the license-free 2.4 GHz ISM band, ensuring seamless communication.
- 3Easy to set up and use, with no need for complex parameterization or programming.
- 4Detects two digital signals and one analog current signal, providing robust data processing capabilities.
- 5Designed for harsh environments, with operating temperatures ranging from -20°C to +65°C (-4°F to +149°F).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC -50 % / +25 % (at U |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 54 mA |
Max. current consumption | 120 mA | Supply voltage | 24 V DC -50 % / +25 % |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 35 mA |
Max. current consumption | 45 mA | Input voltage range | 5 V AC/DC ... 30 V AC/DC |
Switching threshold "0" signal, voltage | max. 1.5 V DC | Switching threshold "1" signal voltage | min. 5 V DC |
Description of the input | Current input (analog input) | Current input signal | 4 mA ... 20 mA |
Input resistance current input | < 170 Ω | Description of the input | Voltage input (digital input) |
Output name | 2x relay output + 1 x RF link | Contact switching type | 3 floating changeover contacts |
Contact material | Ag, gold-plated | Maximum switching voltage | 30 V DC
30 V AC |
Limiting continuous current | 0.5 A | Service life electrical | 8x 10 |
Mechanical service life | 1x 10 | Output name | Current output |
Current output signal | 4 mA ... 20 mA | Load/output load current output | 700 Ω (at U |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Direction | Uni-directional | Direction | Uni-directional |
Frequency range | 2.4032 GHz ... 2.4799 GHz | Channel distance | 100 kHz |
Number of channel groups | 9 | Number of channels per group | 63 |
Transmission power | 10 mW | Frequency band | 2.4 GHz |
Width | 17.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polyamide | Degree of protection | IP20
IP20 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G EEx nL IIC | Note | Please follow the special installation instructions in the documentation! |
Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
