Product Model

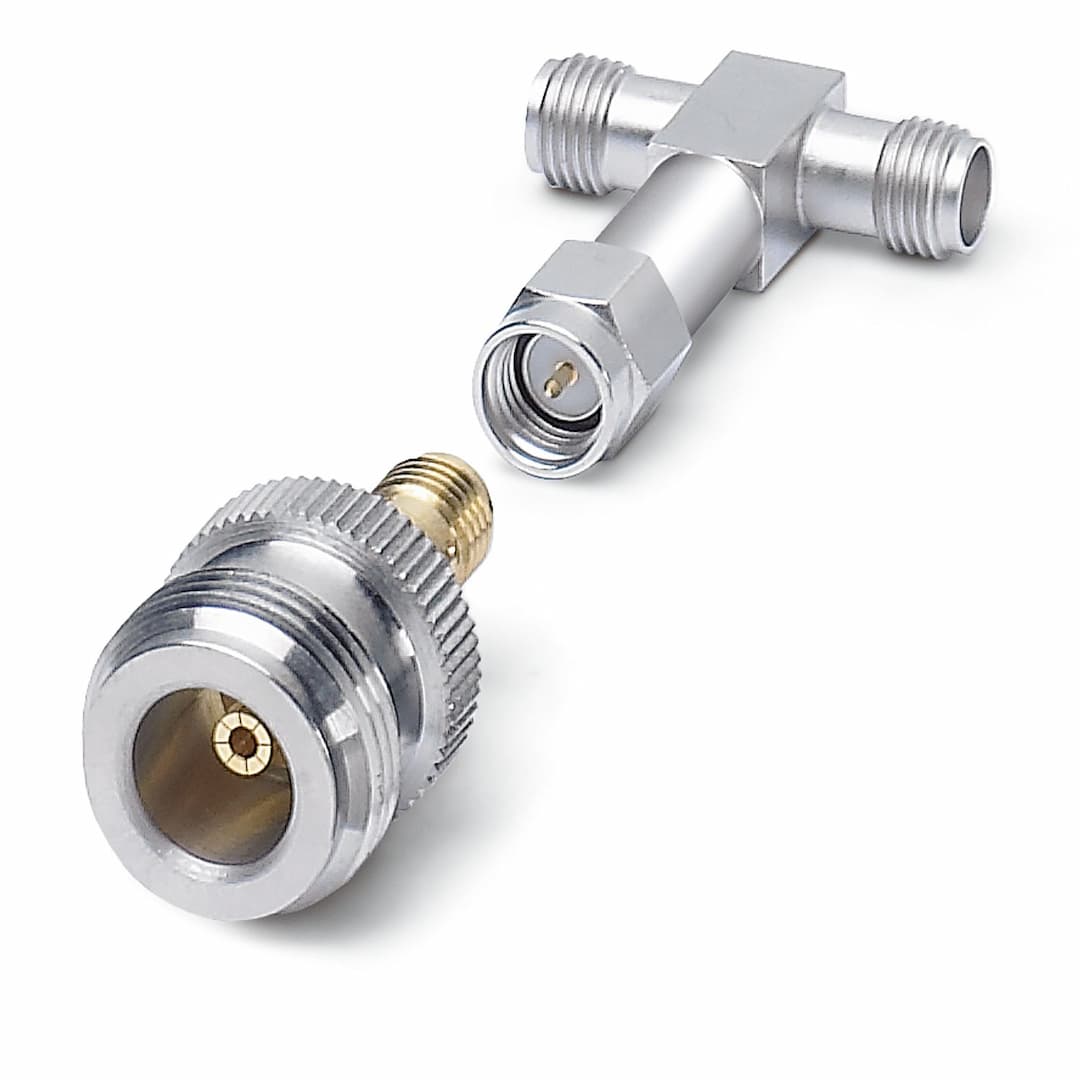

RAD-ISM-2400-SPL-2-SMA
Selling Points
- 1Distributes antenna signals with minimal loss, ensuring clear reception.
- 2Compact and lightweight, ideal for various applications.
- 3Includes self-vulcanizing weather protection tape for outdoor use.
- 4Simple to install with SMA (female) on the upper ends and SMA (male) on the lower end.
- 5Meets WEEE/RoHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Coaxial adapter | Impedance | 50 Ω |
Connection method | 2x SMA (female), 1x SMA (male) | Frequency range | 2.3 GHz ... 2.5 GHz |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 85 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | Screw mounting |
Mounting position | male connector/female connector |
Specifications may be subject to change without notice
