Product Model

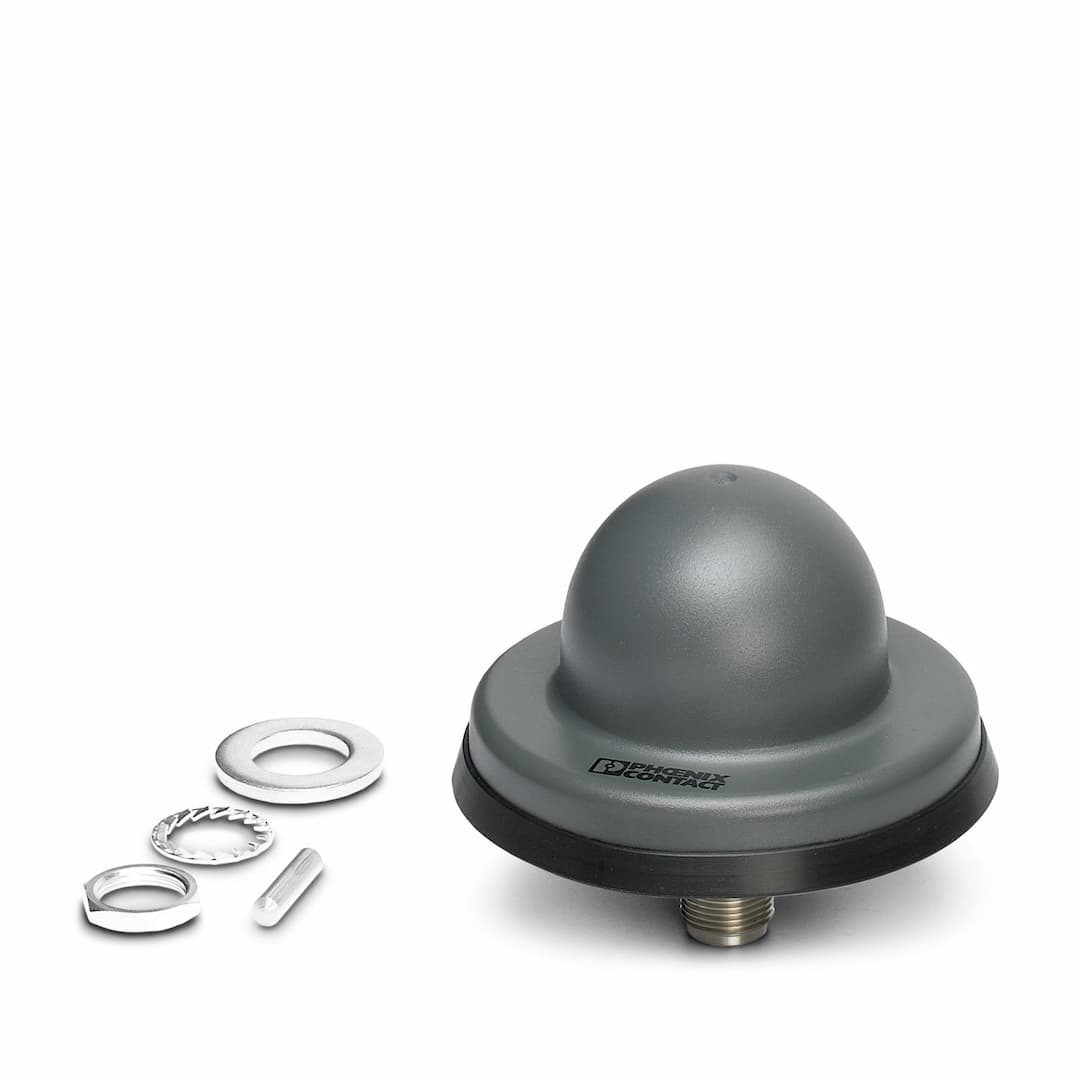

RAD-ISM-2459-ANT-FOOD-6-0-N
Selling Points
- 1Supports 2.4 GHz, 5 GHz, and 6 GHz frequency bands.
- 2Built with impact-resistant housing (IK08) for enhanced security.
- 3Ensures reliable operation in harsh environments with IP68 rating.
- 4Designed to withstand shock and vibration, ideal for mobile applications.
- 5Compatible with control cabinet mounting, includes N (female) to SMA (male) connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Antenna |
Radiation characteristics | Omnidirectional | Gain | 6 dBi (2.4 GHz ... 2.5 GHz, when mounted on metal surface)
8 dBi (4.9 GHz ... 7.1 GHz, when mounted on metal surface) |
Vertical beamwidth | 25 ° (2.4 GHz ... 2.5 GHz)
30 ° (4.9 GHz ... 7.1 GHz) | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 2.4 GHz
5 GHz
6 GHz |
Frequency range | 2.4 GHz ... 2.5 GHz
4.9 GHz ... 7.1 GHz | Impedance | 50 Ω |
Maximum capacity | 75.00 W | Connection method | N (female) |
Height | 51 mm | Diameter | 92 mm |
Material | ASA, Acrylic ester styrene-acrylonitrile
Aluminum | Flammability rating according to UL 94 | HB |
Connecting cable | no | Other resistance | Resistant to cleaning agents |
Degree of protection | IP68 | Ambient temperature (operation) | -40 °C ... 80 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Wind velocity | 160 km/h |
Shock (operation) | 35g (EN 60068-2-27) | Vibration (operation) | 24 h (EN 60068-2-64) |
Other resistance | Resistant to cleaning agents | Standards/specifications | EN 45545-2
NF F16-101/102 |
Note | Fire protection on railway vehicles | Standards/specifications | EN 50155 |
Note | Railway application | Mounting type | Control cabinet |
Assembly note | Protection class: IP68, only when mounted on a level surface
Accessories required
Outdoors and indoors |
Specifications may be subject to change without notice
