Product Model

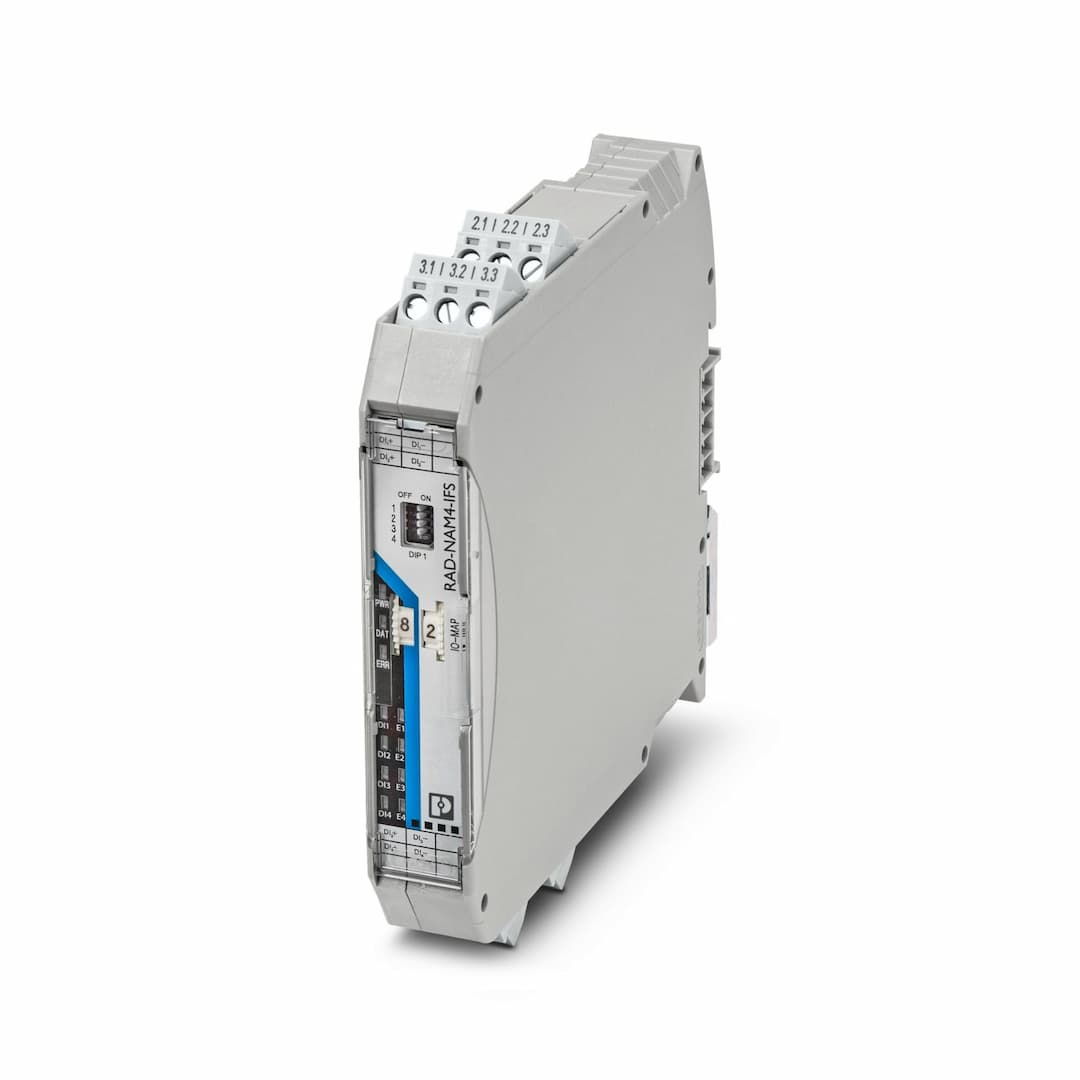

RAD-NAM4-IFS
Selling Points
- 1Built to withstand harsh industrial conditions, ensuring longevity and reliability.
- 2Easily integrates into your existing infrastructure, reducing installation times and compatibility issues.
- 3Designed to deliver high-speed data transmission and robust interference resistance, optimizing your networks' effectiveness.
- 4Offers customizable options to meet diverse application needs and requirements in industrial settings.
- 5Features an intuitive interface for easy setup, monitoring, and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Extension module | MTTF | 1065 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
449 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
85 Years (Telcordia standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
Article revision | 06 | Overvoltage category | II |
Degree of pollution | 2 | Electrical isolation | 500 V AC (NAMUR digital I/O - 50 Hz, 1 min, test voltage) |
Test voltage | 500 V AC (50 Hz, 1 min.) | Maximum power dissipation for nominal condition | 1.54 W |
Supply voltage range | 19.2 V DC ... 30.5 V DC (DIN rail connector) | Max. current consumption | ≤ 64 mA (At 24 V DC, at 25°C) |
Non-load voltage | ~ 8 V DC | Switching hysteresis | ≤ 0.2 mA |
Description of the input | Digital input | Number of inputs | 4 |
Available input sources | NAMUR proximity sensors (EN 60947-5-6)
Floating switch contacts
Switch contacts with resistance circuit | Current input signal | ≤ 1.2 mA (blocking)
≥ 2.1 mA (conductive) |
Min. voltage input signal | 0 V DC | Max. voltage input signal | 30.5 V DC |
Switching level "0" signal | 0 V DC ... 4 V DC | Switching level "1" signal | 10 V DC ... 30.5 V DC |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Status display | LED supply voltage, PWR (green)
Green LED (bus communication, DAT)
LED periphery error, ERR (red)
Yellow LED (digital input, DI1)
Yellow LED (digital input, DI2)
Yellow LED (digital input, DI3)
Yellow LED (digital input, DI4)
Red LED (Short circuit/Line break, E1)
Red LED (Short circuit/Line break, E2)
Red LED (Short circuit/Line break, E3)
Red LED (Short circuit/Line break, E4) | Width | 17.5 mm |
Height | 113 mm | Depth | 114.5 mm |
Color | green | Flammability rating according to UL 94 | V0 |
Housing material | PA 6.6-FR | Line fault detection | Break 0.05 mA < IIN < 0.35 mA
Short circuit 100 Ω < RSensor < 360 Ω |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | 2000 m |
Permissible humidity (operation) | 20 % ... 95 % (non-condensing) | Conformance | CE-compliant |
CCC | Ex ec IIC T4 Gc | ATEX | IBExU 17ATEXB011X; II 3 G; Ex ec IIC T4 Gc |
IECEx | IECEx IBE 17.0029X; Ex ec IIC T4 Gc | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D T4 |
Standard designation | Ex Directive (ATEX) | Standards/specifications | EN 60079-0 |
Specifications may be subject to change without notice
