Product Model

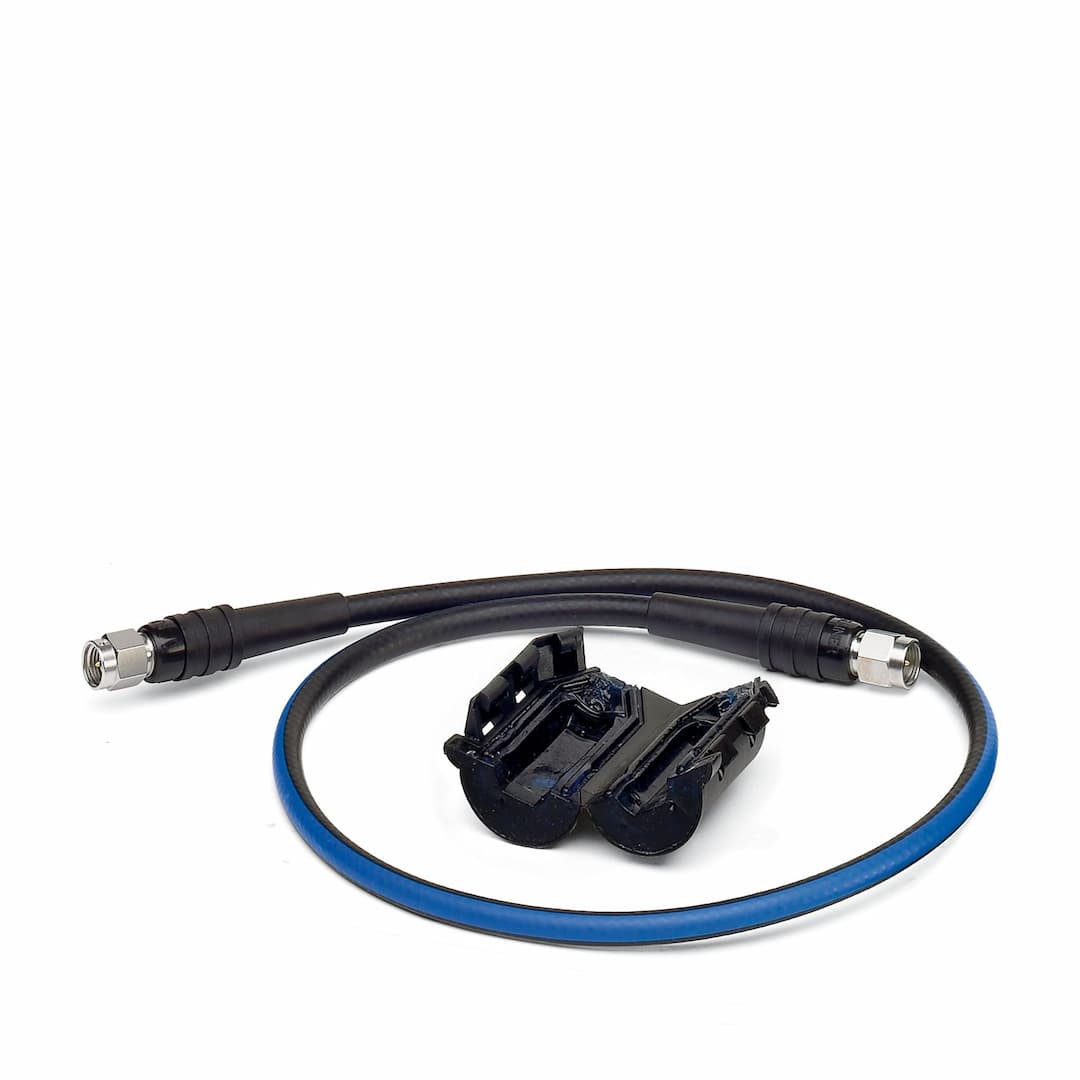

RAD-PIG-EF142-PIPE
Selling Points
- 1Weather-Resistant Design: Equipped with a gasket sleeve for protection against harsh weather conditions.
- 2Flexible Connectivity: SMA(m) to SMA(m) connection ensures reliable and secure connections.
- 3Industrial-Grade Material: Made from RADOX®(LSFH) for durability and resistance to environmental factors.
- 4Compact Size: Ideal for use in industrial settings with a cable length of 50 cm.
- 5Frequency Compatibility: Supports frequency ranges of 900 MHz, 2.4 GHz, and 5 GHz for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Coaxial cable | Frequency range | 900 MHz
2.4 GHz
5 GHz |
Impedance | 50 Ω | Connection method | SMA (male) |
Connection method | SMA (male) | Outer sheath, material | RADOX®(LSFH) |
Cable length | 50 cm | Cable type | EF 142 |
External cable diameter | 5.00 mm | Outer sheath, material | RADOX®(LSFH) |
External sheath, color | black | Bending radius, long-term | 30.00 mm |
868 / 900 MHz | 0.3 dB | 2.4 GHz | 0.5 dB |
Ambient temperature (operation) | -30 °C ... 70 °C | Ambient temperature (storage/transport) | -30 °C ... 70 °C |
Specifications may be subject to change without notice
