Product Model

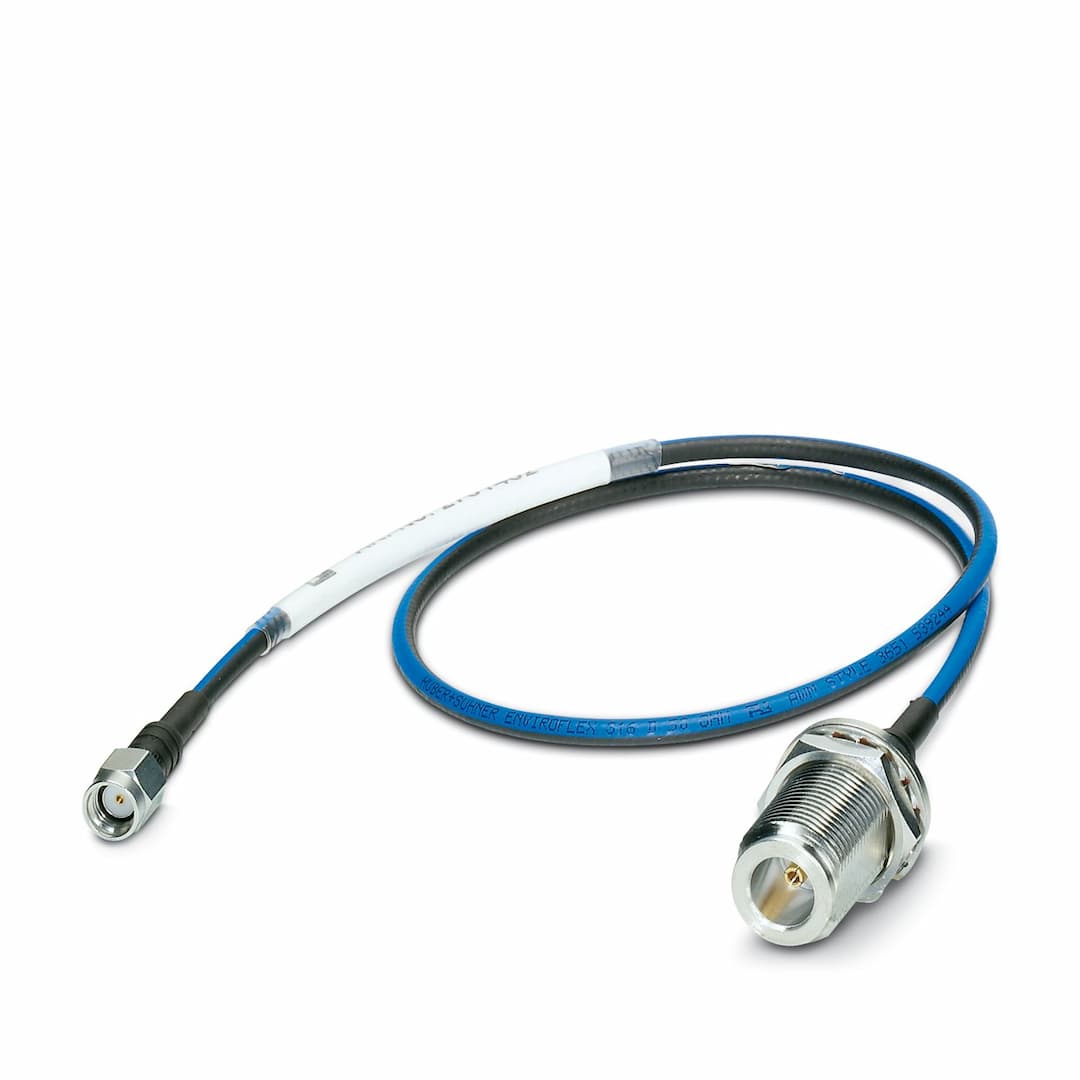

RAD-PIG-EF316-N-RSMA
Selling Points
- 1Versatile Connectivity: N (female) to RSMA (male) connectors for seamless integration.
- 2High Durability: UV-resistant, oil-resistant, and flame-retardant for harsh environments.
- 3Low Attenuation: Attenuation of 0.6 dB at 0.9 GHz, 1 dB at 2.4 GHz, and 1.4 dB at 5 GHz.
- 4Flexible Design: Cable length of 50 cm with a minimum bending radius of 12.50 mm.
- 5Compliant Standards: Meets eCl@ss, ETIM, and UNSPSC standards for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Coaxial cable |
Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
Connection method | RSMA (male) | Connection method | N (female) |
Hole diameter | 16.1 mm | Outer sheath, material | RADOX®(LSFH) |
Cable length | 0.5 m | Cable type | EF 316 |
External cable diameter | 2.50 mm | Outer sheath, material | RADOX®(LSFH) |
External sheath, color | blue | Bending radius, long-term | 12.50 mm |
868 / 900 MHz | ~ 0.6 dB (Attenuation of entire cable) | 2.4 GHz | ~ 0.9 dB (Attenuation of entire cable) |
5.8 GHz | ~ 1.4 dB (Attenuation of entire cable) | Resistance to oil | very good oil and chemical resistance |
Ambient temperature (operation) | -40 °C ... 105 °C | Ambient temperature (storage/transport) | -40 °C ... 105 °C |
Ambient temperature (assembly) | -20 °C ... 60 °C | Resistance to oil | very good oil and chemical resistance |
Certificate | CE-compliant | Resistance to oil | very good oil and chemical resistance |
Standard designation | Flame retardancy | Standards/specifications | DIN EN 60332-1-2
UL 1581 |
Standard designation | Halogen-free | Standards/specifications | IEC 60754 |
Standard designation | UV resistance | Standards/specifications | IEC 60068-2-5 |
Assembly note | Outdoors and indoors |
Specifications may be subject to change without notice
