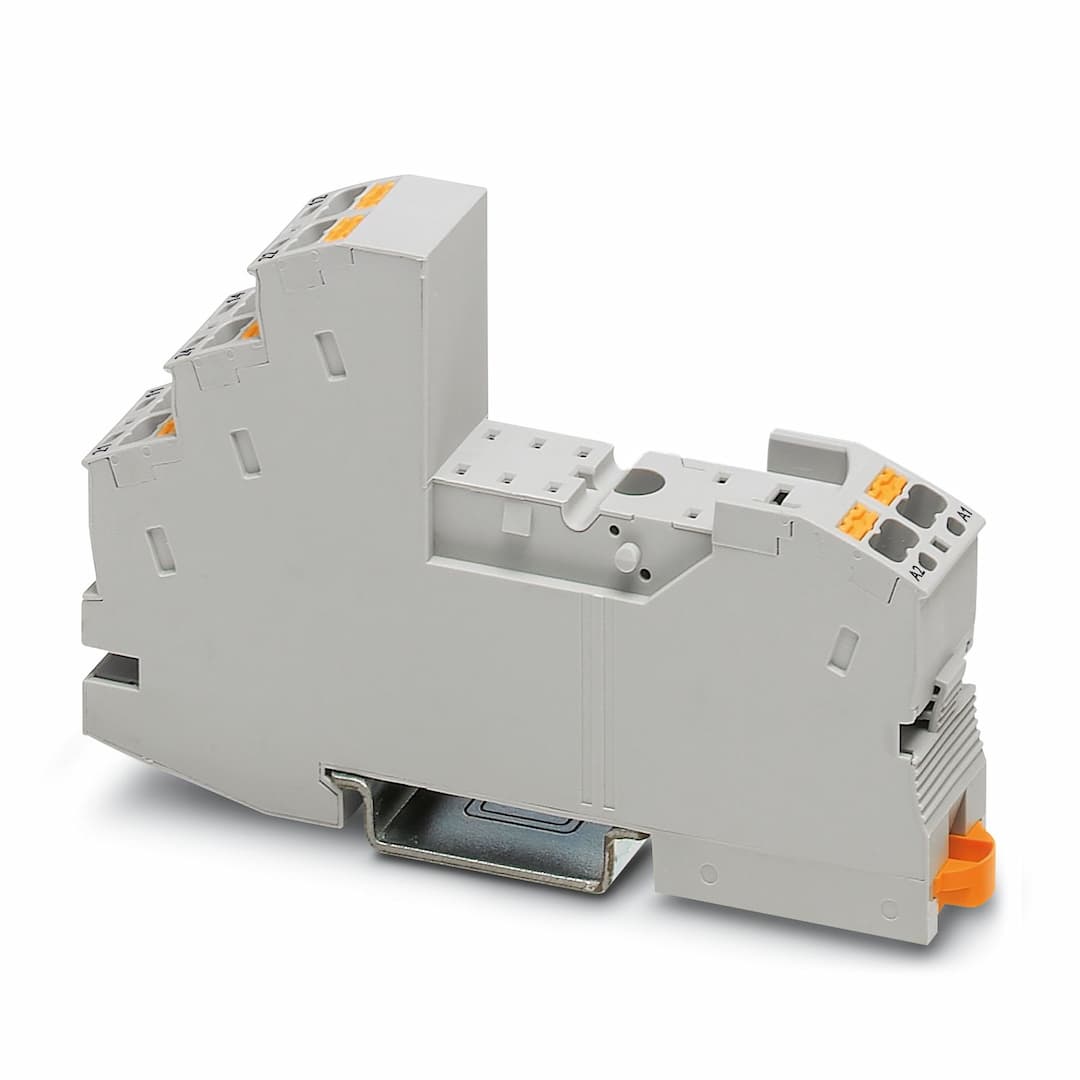

Product Model
RIF-1-BPT/2X21
Selling Points
- 1Compact Design: The RIF-1-BPT/2X21 relay base is designed for miniature power relays with a compact footprint, ideal for space-constrained applications.
- 2Push-In Connections: Easy-to-use push-in connections simplify the installation process, ensuring quick and secure connections.
- 3Flexible Conductor Options: Supports solid and flexible conductors with cross-sections ranging from 0.14 mm² to 1.5 mm², accommodating various wiring needs.
- 4Versatile Mounting Options: Can be mounted on NS 35/7,5, offering flexibility in installation configurations.
- 5High Ambient Temperature Range: Operates within an ambient temperature range of -40 °C to 85 °C, ensuring reliability in diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21) | Product type | Relay socket |
Product family | RIFLINE complete | Article revision | 07 |
Nominal voltage U | 250 V AC/DC | Nominal current I | max. 13 A (Depends on application/assembly) |
Protective circuit | depending on the selected input/suppressor modules | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
Diameter | 3.2 mm | Width | 16 mm |
Height | 96 mm | Depth Retaining bracket | 75 mm (with retaining bracket) |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
