Product Model

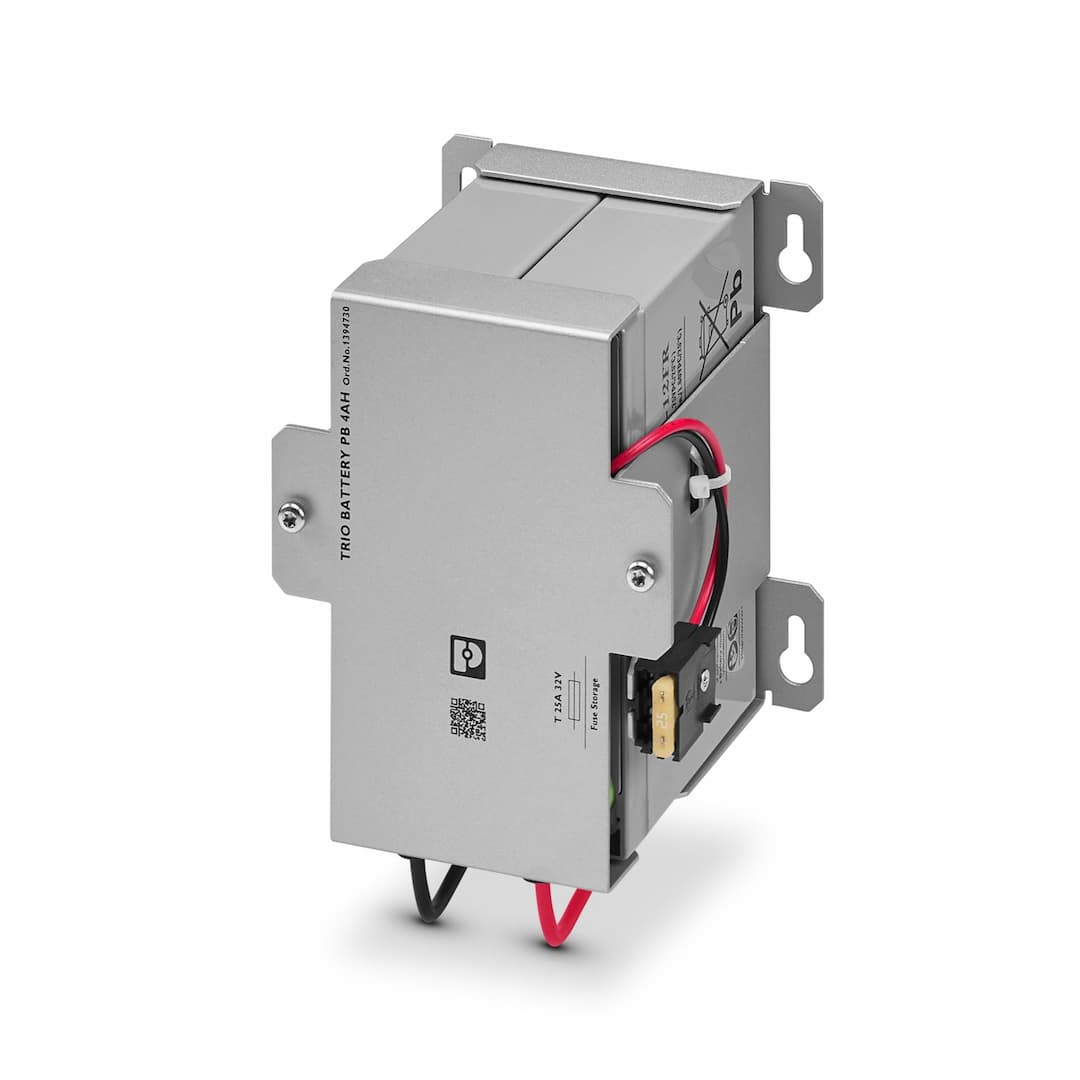

TRIO-BAT/PB/24DC/4AH
Selling Points
- 1Automatic Detection and Communication: Seamlessly integrates with QUINT UPS-IQ for continuous monitoring and intelligent management.
- 2Lead AGM Technology: Utilizes high-quality lead AGM (Absorbent Glass Mat) technology for reliable energy storage.
- 3Fully Charged Before Shipping: Ensures optimal performance right out of the box with batteries fully charged before dispatch.
- 4Compact Design: Compact dimensions (85 mm x 191 mm x 110 mm) for easy installation in various settings.
- 5Compliance with Environmental Standards: Meets China RoHS and other environmental compliance standards for environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 24 V DC (SELV) |
Nominal capacity | 4 Ah | Charging current | max. 1.2 A |
End-of-charge voltage | 27.6 V (20 °C) | Output current | max. 25 A |
Output fuse | 1x 25 A T 25A 32V, ATOF 287 from Littelfuse | Buffer time | 4.5 min (20 A)
3 min (25 A) |
End-of-discharge voltage | 19.2 V | Connection in parallel | yes |
Battery type | BB Battery | Battery technology | VRLA-AGM |
IQ-Technology | no | Latest startup date (battery only) | 6 Months (0 °C ... 20 °C) |
Latest startup (battery only) - range | 3 Months ... 6 Months (20 °C ... 30 °C)
1 Months ... 3 Months (30 °C ... 40 °C) | Accumulator module service life (according to Eurobat) | 6 (20 °C) |
Size designation | Block | Temperature sensor | no |
Product type | Battery module | Product family | Battery module |
Application | TRIO-UPS-2G | Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
Article revision | 02 | Protection class | III |
Degree of pollution | 2 | Width | 115 mm |
Height | 154 mm | Depth | 113 mm |
Diameter | 5 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 5 mm / 5 mm | Mounting type | DIN rail mounting |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Housing material | Metal |
Cable cross section | 4 mm² | AWG/kcmil | 12 |
Cable length | 2000 mm | Color | red |
Cable cross section | 4 mm² | AWG/kcmil | 12 |
Cable length | 2000 mm | Color | black |
Degree of protection | IP20 | Ambient temperature (storage/transport) | -20 °C ... 40 °C |
Ambient temperature (charge) | 0 °C ... 40 °C | Ambient temperature (discharge) | -20 °C ... 50 °C |
Max. permissible relative humidity (operation) | ≤ 95 % | Suited for EX-applications | no |
