Product Model

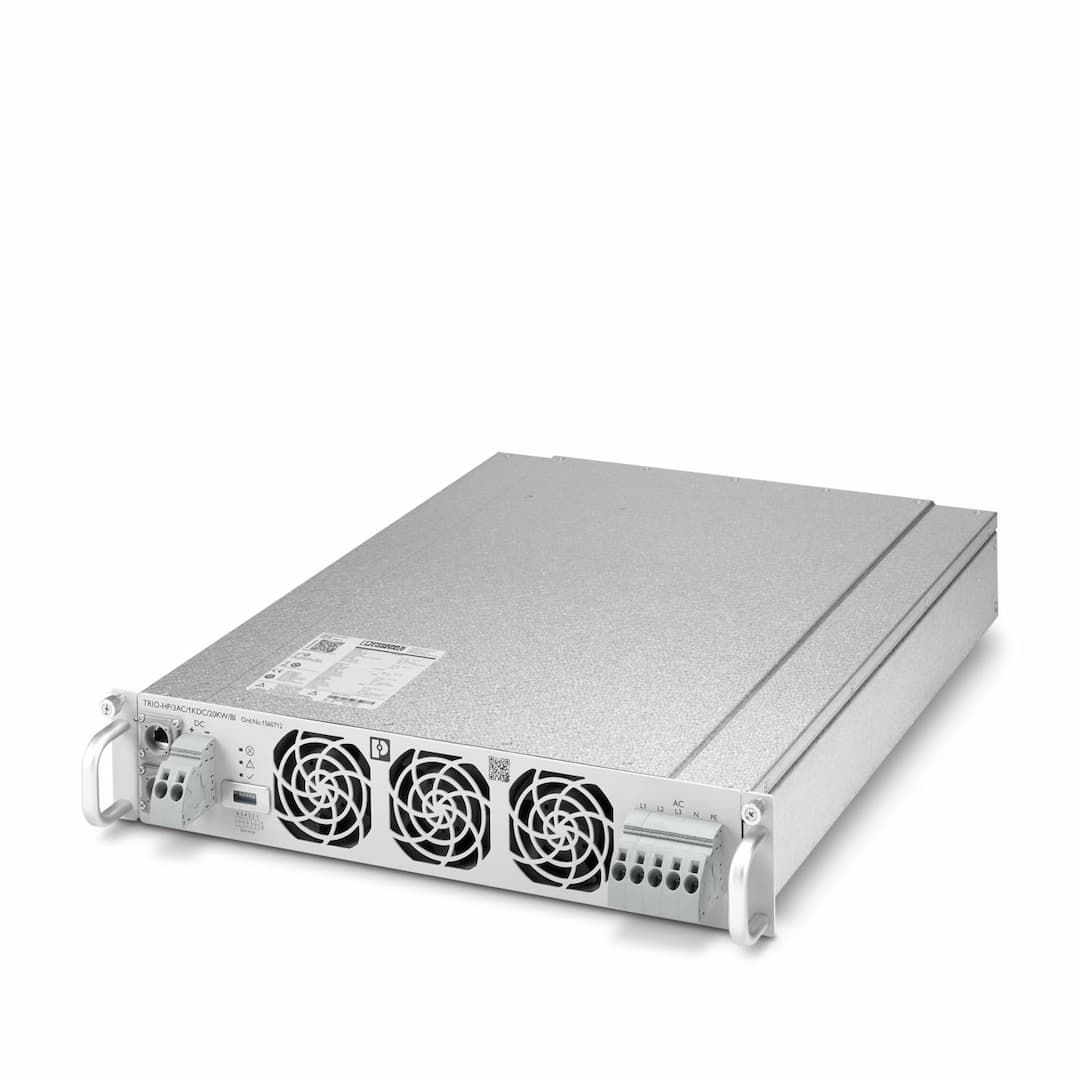

TRIO-HP/3AC/1KDC/20KW/BI
Selling Points
- 1High-efficiency power electronics system for 19" rack mounting.
- 2Bidirectional AC/DC power conversion with high voltages and currents.
- 3Modular and scalable design, enabling up to 960 kW output power.
- 4Output voltage range: 3x 480 V AC, 50 Hz and 60 Hz.
- 5Push-in connection technology for fast and tool-free wiring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage range | 3x 260 V AC ... 530 V AC | Derating | 3x 309 V AC ... 260 V AC |
Frequency range | 50 Hz ... 60 Hz ±10 % | Input current range | 3x 0 A ... 38 A |
Inrush current limitation | 50 A | Total distortion (THDi) | < 5 % (50% ... 100% output load) |
Supply system configuration | Star network (TN-S, TN-C, TT, IT) | Input voltage range | 200 V DC ... 1000 V DC |
Derating | 273 V DC ... 200 V DC | Input current range | 0 A ... 73 A |
Efficiency | > 96 % | Output voltage range | 50 V DC ... 1000 V DC |
Derating | 50 V DC ... 273 V DC | Output current range | 0 A ... 73 A |
Nominal power | 20 kW | Power dissipation standby | < 20 W |
Derating | > 55 °C (1.4 A/K) | Connection in parallel | 48 (Modules) |
Switch-over time | 10 ms (Change of operating mode) | POWER factor | > 0.8 |
Output voltage range | 3x 380 V AC ... 480 V AC | Output current range | 0 A ... 38 A |
Output power | max. 20 kVA | Output frequency | 50 Hz ... 60 Hz ±10 % |
Connection in parallel | 48 (Modules) | Switch-over time | 10 ms (Change of operating mode) |
Power factor | 0.8 ... 1 (leading and lagging) | Power grid AC connection | L1, L2, L3, PE |
Output voltage | 3x 380 V AC
3x 400 V AC
3x 480 V AC | Output power | max. 19.8 kVA |
Output frequency | 50 Hz (3x 380 V AC / 3x 400 V AC)
60 Hz (3x 480 V AC) | Connection in parallel | 8 (Modules) |
Power factor | 0.8 ... 1 (leading and lagging) | Total harmonic distortion factor (THD) | < 3 % |
Power grid AC connection | L1, L2, L3, N, PE | Designation | AC connection |
Identification | L1 / L2 / L3 / N / PE | Connection method | Push-in connection |
rigid | 1.5 mm² ... 16 mm² | flexible | 1.5 mm² ... 16 mm² |
rigid (AWG) | 15 ... 5 | Stripping length | 18 mm (rigid/flexible) |
Designation | DC connection | Identification | DC+ / DC- |
Connection method | Push-in connection | rigid | 1.5 mm² ... 16 mm² |
flexible | 1.5 mm² ... 16 mm² | rigid (AWG) | 15 ... 5 |
Stripping length | 18 mm | Interface | CAN bus |
Interface | CAN bus | Number of interfaces | 1 |
Connection method | 2x RJ45 | Supported protocols | CAN 2.0B |
Locking | Locking clip | Transmission physics | wired |
Topology | Daisy Chain | Transmission speed | 125 kbps |
Termination resistor | 120 Ω (Terminating the end device) | Number of phases | 3 |
Electrical isolation between input and output | yes | Insulation voltage input/output | 2121 V DC (60 s) |
Insulation voltage input, output / housing | 2121 V DC (60 s) | Product type | DC power module |
Product family | TRIO HIGH POWER | MTBF (IEC 61709, SN 29500) | > 300000 h |
Internal fan | yes | Volumetric flow | 400 m³/h (per module) |
Flow direction | from front to back | Article revision | 00 |
Protection class | I | Pollution degree | 2 |
Width | 483 mm | Height | 89 mm |
Depth | 520 mm | Rack unit | 2 U |
Mounting type | 19" rack mounting | Housing material | Zn-Al alloy |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Maximum altitude | 2000 m |
Permissible humidity (operation) | ≤ 95 % (non-condensing) | Noise level | < 70 dB (1 m, U |
IEC 60664-1 | II | Standard designation | Safety requirements for power electronic converter systems and equipment - Part 1: General |
Standards/specifications | IEC 62477-1 | Standard designation | Power generation systems connected to the low-voltage distribution network – Technical minimum requirements for the connection to and parallel operation with low-voltage distribution networks |
Standards/specifications | VDE-AR-N 4105 (DE) | Standard designation | Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources |
Standards/specifications | UL 1741
UL 1741 SA
UL 1741 SB | Standard designation | Bidirectional grid-connected power converters |
Standards/specifications | IEC 62909-1:2017
IEC 62909-2:2019 | EMC requirements for noise emission | EN 61000-6-3 |
EMC requirements for noise immunity | EN 61000-6-2 |
Specifications may be subject to change without notice
