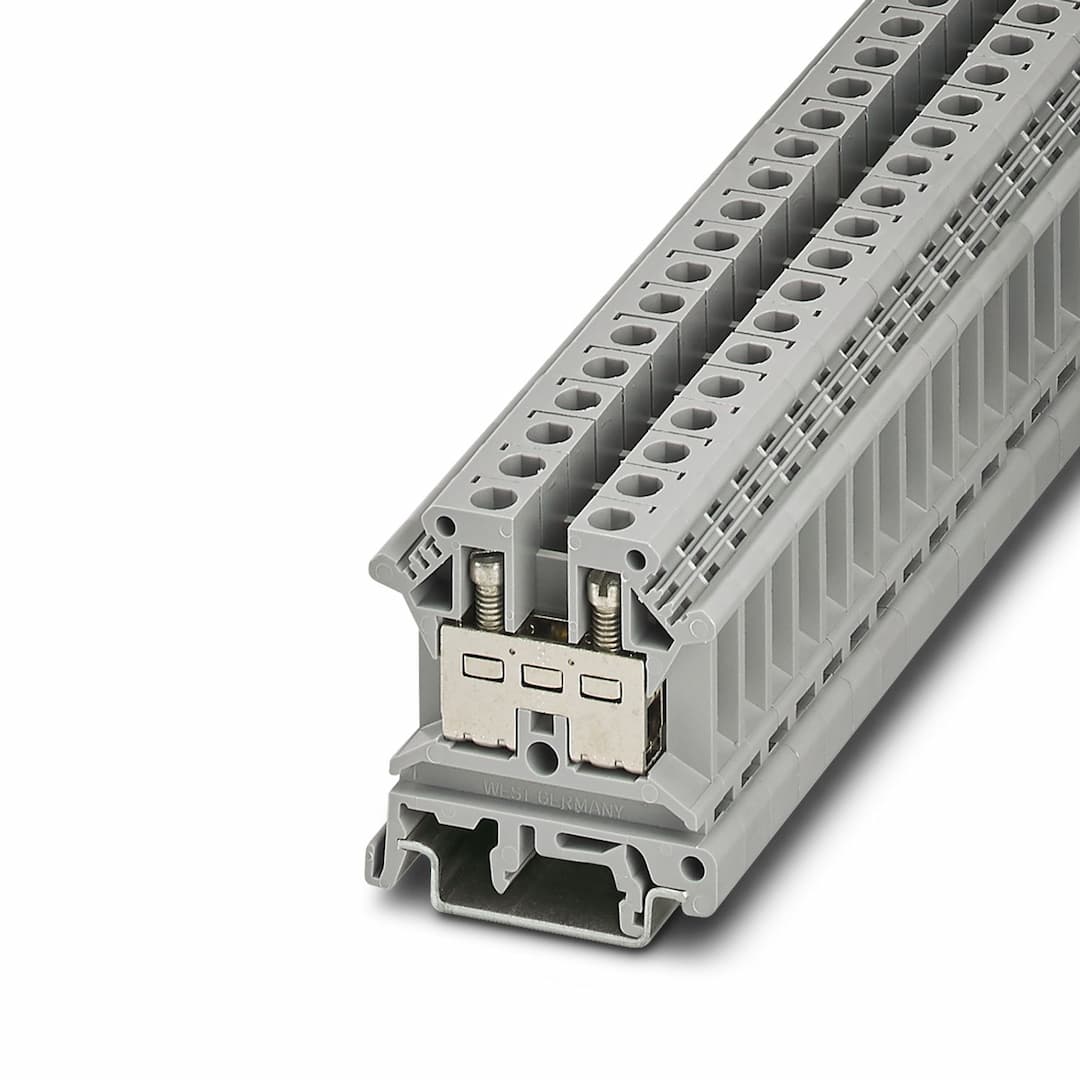

Product Model
UK 10-EX ALTER FUSS
Selling Points
- 1High-quality glass/ceramic fuses for reliable performance.
- 2Nominal voltage of 500V for safe and efficient operation.
- 3Nominal current of 10A to handle moderate to high power requirements.
- 4Screw connection method for easy and secure assembly.
- 5Designed for use in demanding applications where reliability is crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Article revision | 00 | Maximum power dissipation for nominal condition | 0 W |
Stripping length | 10 mm | Identification | II 2 G Ex eb IIC Gb |
Operating temperature range | -60 °C ... 105 °C | Ex-certified accessories | 3003020 D-UK 4/10
1201442 E/UK |
Ex temperature increase | 40 K (38.5 A/6 mm²) | Rated voltage | 550 V |
Rated insulation voltage | 500 V | output | (Permanent) |
Rated current | 38.5 A | Maximum load current | 47.5 A |
Contact resistance | 0.3 mΩ | Stripping length | 10 mm |
Torque range | 1.5 Nm ... 1.8 Nm | Nominal cross section | 6 mm² |
Rated cross section AWG | 10 | Connection capacity rigid | 0.5 mm² ... 10 mm² |
Connection capacity AWG | 20 ... 8 | Connection capacity flexible | 0.5 mm² ... 6 mm² |
Connection capacity AWG | 20 ... 10 | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 6 mm² | 0.72 kA |
Short-time withstand current 10 mm² | 1.2 kA | Result | Test passed |
Test voltage setpoint | 2 kV | Result | Test passed |
Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
Test force setpoint | 5 N | Result | Test passed |
Rotation speed | 10 rpm | Revolutions | 135 |
Conductor cross section/weight | 0.5 mm² / 0.3 kg
6 mm² / 1.4 kg
10 mm² / 2 kg | Result | Test passed |
Time of exposure | 30 s | Result | Test passed |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Specifications may be subject to change without notice
