Selling Points
- 1800 V for reliable operation in demanding electrical environments.
- 2Nominal current of 76 A, suitable for heavy-duty applications.
- 3Made from durable materials with a flammability rating of V2 based on UL 94.
- 4Screw termination method for quick and secure connections.
- 5Compatible with multiple wire cross-sections from 0.5 mm² to 16 mm², ideal for various electrical projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

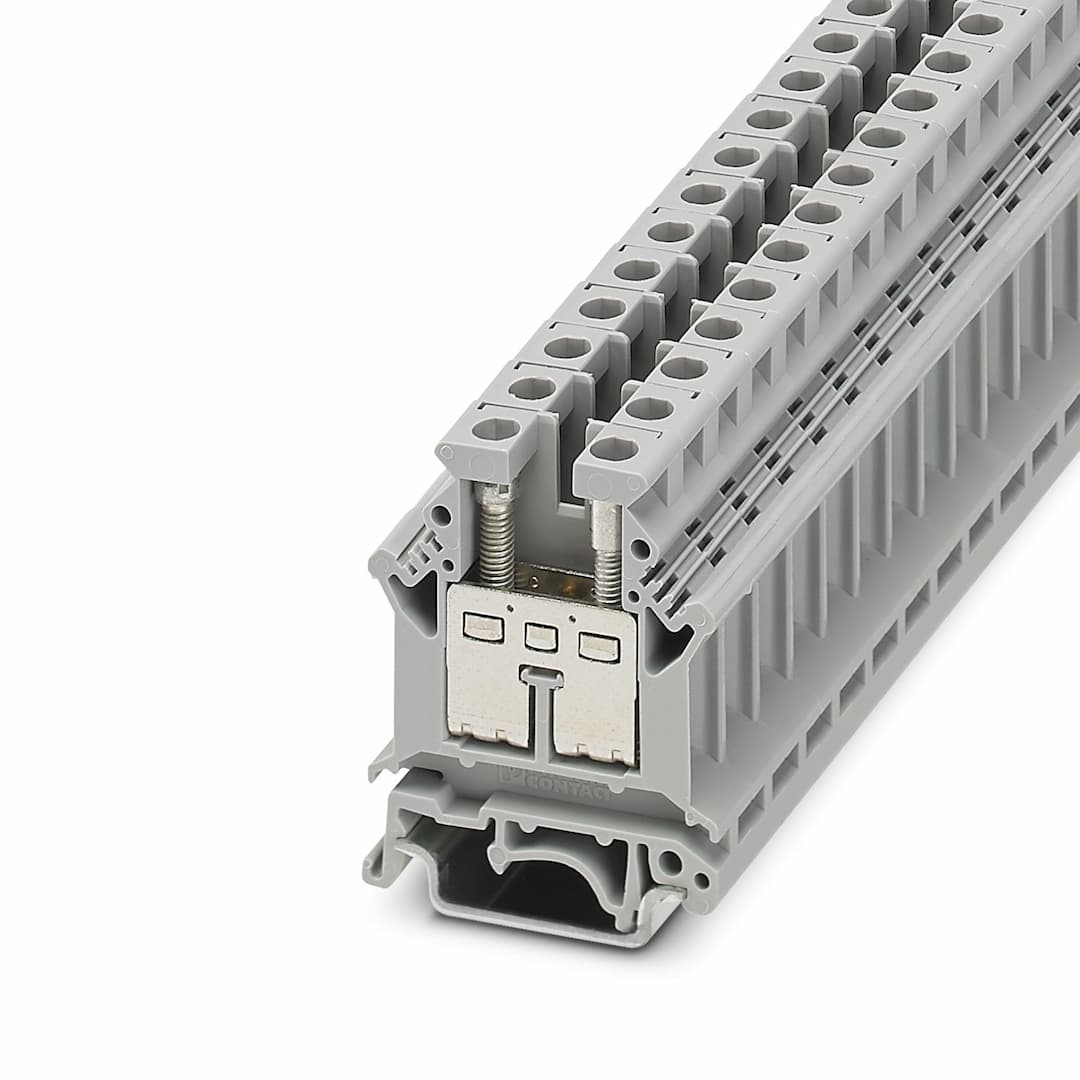

Product type | Feed-through terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 03 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 0.77 W | Number of connections per level | 2 |
Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
Stripping length | 11 mm | Internal cylindrical gage | B6 |
Connection in acc. with standard | IEC / EN | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 10 mm² |
Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 4 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² | Nominal current | 76 A |
Nominal voltage | 800 V | Connection in acc. with standard | UL |
Cross section AWG | 24 ... 6 (converted acc. to IEC) | Nominal current | 65 A |
Nominal voltage | 600 V | Connection in acc. with standard | CSA |
Cross section AWG | 24 ... 6 (converted acc. to IEC) | Nominal current | 80 A |
Nominal voltage | 600 V | Width | 10.2 mm |
End cover width | 1.5 mm | Height | 42.5 mm |
Depth on NS 32 | 59 mm | Depth on NS 35/7,5 | 54 mm |
Depth on NS 35/15 | 61.5 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -40 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 10 mm² | 1.2 kA |
Result | Test passed | Test voltage setpoint | 2 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
Result | Test passed | Rotation speed | 10 (+/- 2) rpm |
Revolutions | 135 | Conductor cross section/weight | 0.5 mm² / 0.3 kg
10 mm² / 2 kg
16 mm² / 2.9 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC / EN
UL
CSA |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
