Product Model

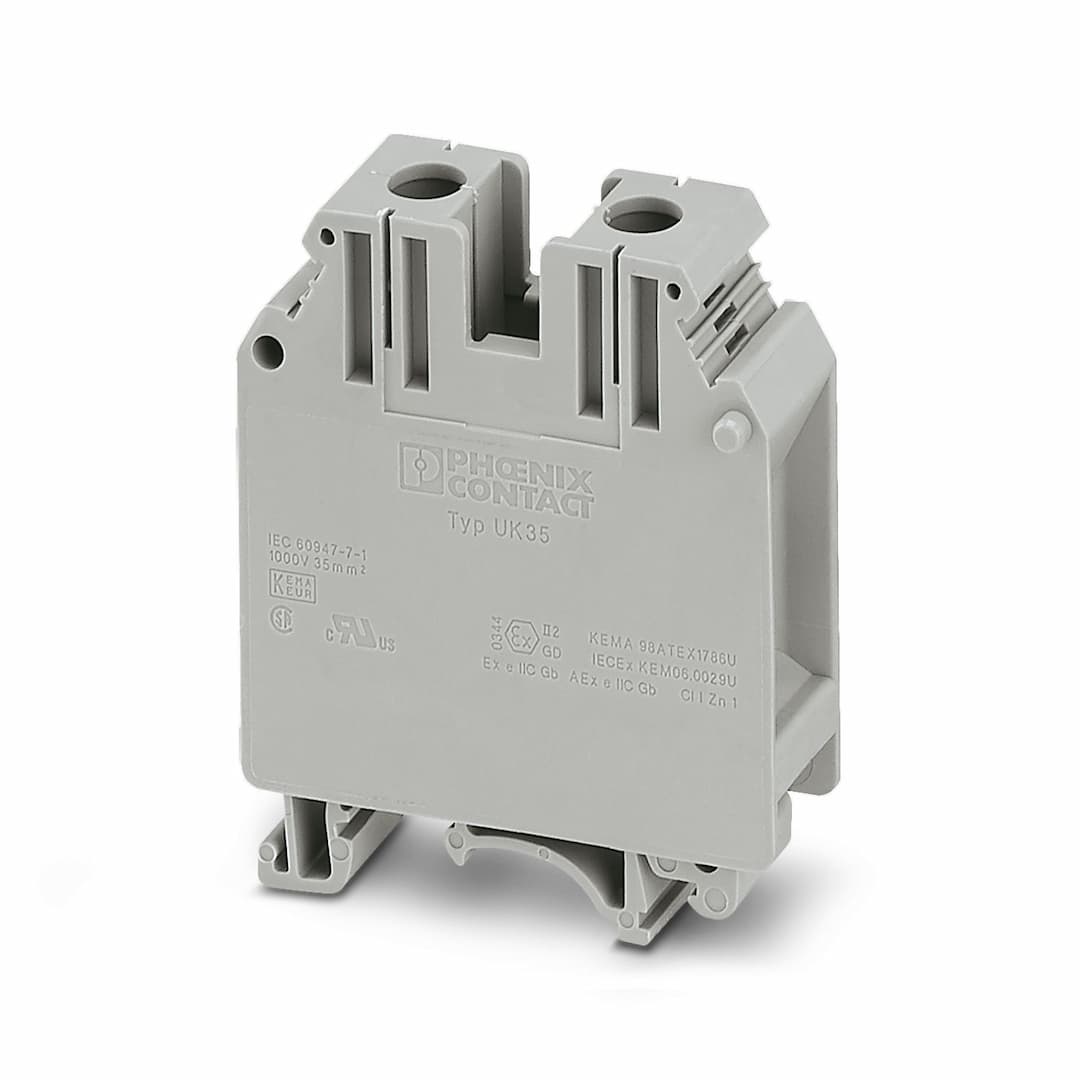

UK 35 HOUSING GY
Selling Points
- 1Durable and Reliable: Built with high-quality materials for long-lasting performance.
- 2Easy Installation: Simple mounting options for quick setup.
- 3Gray Housing (RAL 7042): Aesthetically pleasing and resistant to corrosion.
- 4Non-Fused Design: Suitable for applications requiring no fuse protection.
- 5Compact Design (15.1 mm Width): Perfect for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Product family | Plastic |
Article revision | 06 | Width | 15.1 mm |
Color (Housing) | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
