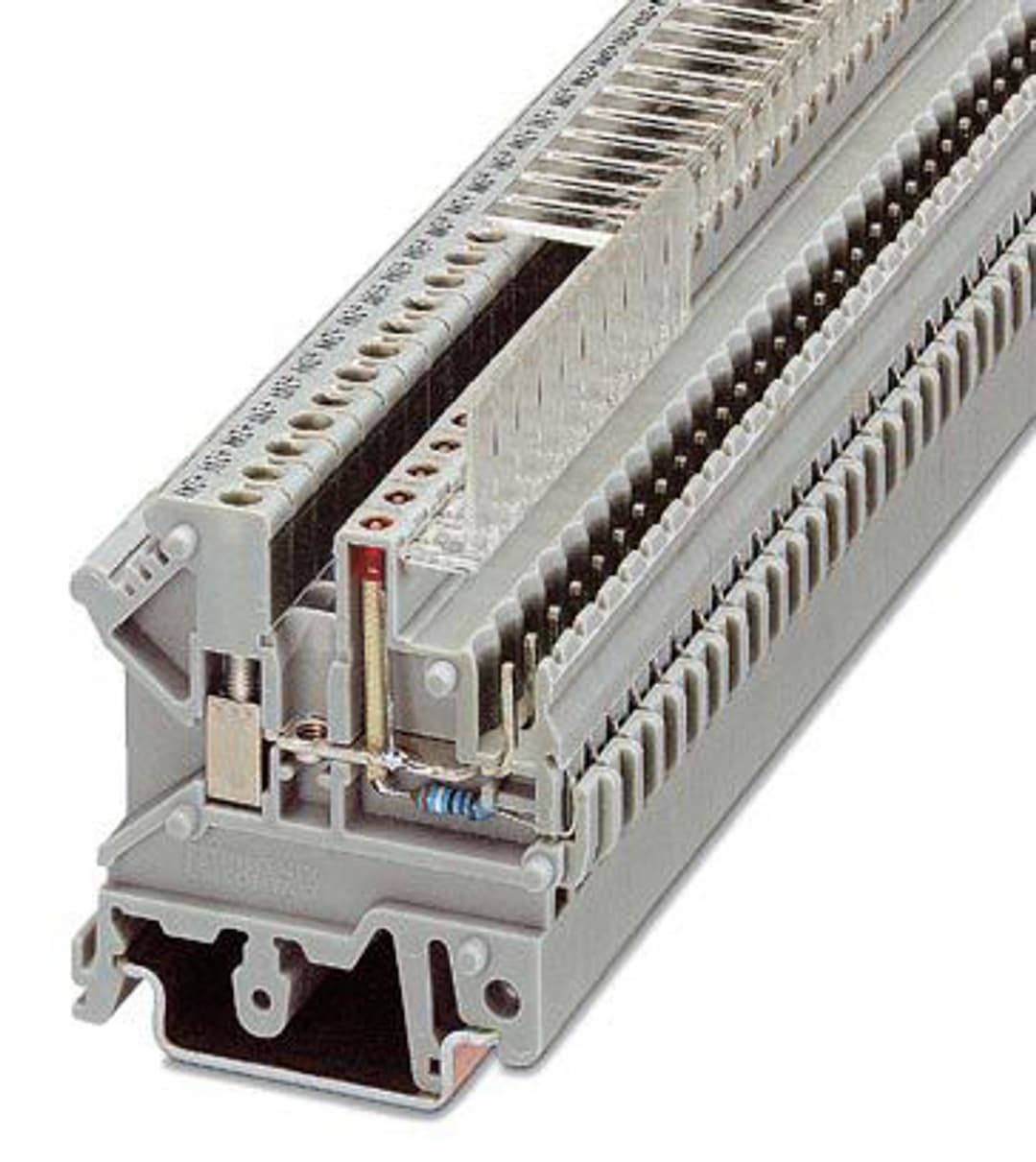

UK 3-MVSTB-5,08-LA 24RD
Selling Points
- 1High-Voltage Compatibility: Designed for nominal voltage of 250V and overvoltage category III.
- 2Flexible Conductor Cross Section: Supports conductor cross sections from 0.2 mm² to 4 mm².
- 3Compact Design: Pitch of 5.08 mm and width of 5.08 mm for efficient use in compact spaces.
- 4Robust Construction: Made from gray insulating material with a flammability rating of UL 94 V2.
- 5Versatile Mounting Options: Compatible with NS 32, NS 35/15, and NS 35/7.5 mounting types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | Current and voltage are determined by the plug used. | Product type | Feed-through terminal block |
Product family | UK 3-MVSTB | Number of positions | 1 |
Pitch | 5.08 mm | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 08 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 4 kV |
Maximum power dissipation for nominal condition | 0 W | Screw thread | M3 |
Tightening torque | 0.5 ... 0.6 Nm | Stripping length | 8 mm |
Internal cylindrical gage | A3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1.5 mm² | 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.2 mm² ... 1 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² | Nominal current | 12 A |
Maximum load current | 12 A (with 4 mm² conductor cross section) | Nominal voltage | 250 V (is determined by the LED) |
Width | 5.08 mm | End cover width | 2.5 mm |
Pitch | 5.08 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Contact surface | Tin Sn |
Open side panel | Yes | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % | Mounting type | NS 32
NS 35/15
NS 35/7,5 |
