Product Model

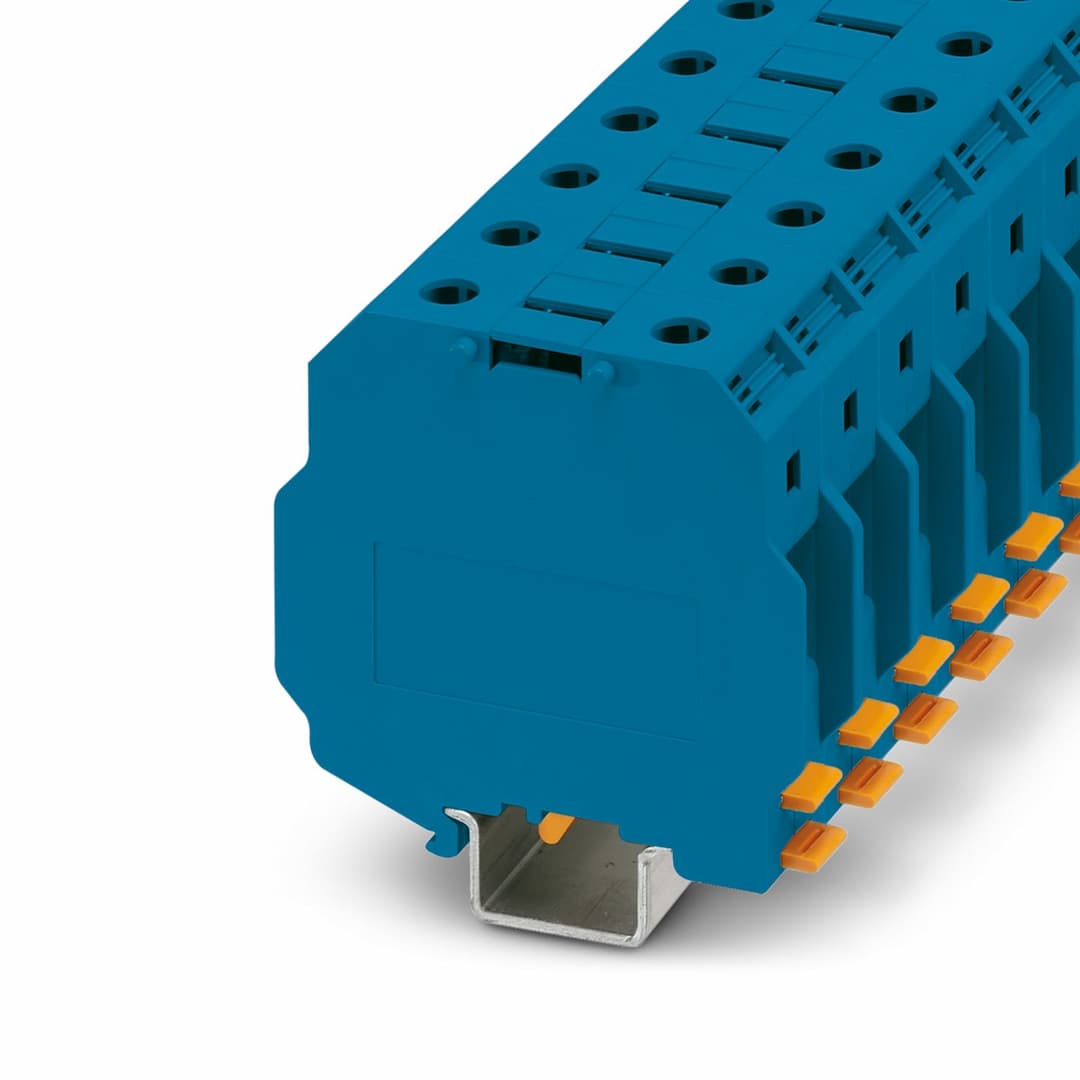

UKH 50 1500V BU
Selling Points
- 1Reliable cable connection ensured by three-point centering of the conductor in the prismatic sleeve base.
- 2Low contact resistance due to ribbing on the contact surface.
- 3Screw locking by means of spring-loaded elements in the clamping part for secure connections.
- 4Rated surge voltage of 8 kV and overvoltage category III for enhanced safety.
- 5Compatible with various mounting types including NS 35/15, NS 32, and NS 35/7,5 for versatile installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For a reliable contact of multi stranded conductors it is recommended to untwist multi stranded conductors. | Product type | High current terminal block |
Number of positions | 1 | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 00 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 4.73 W | Number of connections per level | 2 |
Nominal cross section | 50 mm² | Screw thread | M6 |
Tightening torque | 6 ... 8 Nm | Stripping length | 24 mm |
Internal cylindrical gage | B10 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 16 mm² ... 70 mm² | Cross section AWG | 4 ... 2/0 (converted acc. to IEC) |
Conductor cross section flexible | 25 mm² ... 70 mm² | Conductor cross section, flexible [AWG] | 2 ... 2/0 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 25 mm² ... 50 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 25 mm² ... 50 mm² |
2 conductors with same cross section, solid | 10 mm² ... 16 mm² | 2 conductors with same cross section, flexible | 10 mm² ... 16 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 10 mm² ... 16 mm² | Nominal current | 150 A |
Maximum load current | 150 A (with 50 mm² conductor cross section) | Nominal voltage | 1500 V DC
1000 V AC |
Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 50 mm² |
Width | 20 mm | Height | 81.4 mm |
Depth | 76 mm | Depth on NS 32 | 81 mm |
Depth on NS 35/15 | 83.5 mm | Color | blue (RAL 5015) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 50 mm² | 6 kA |
Result | Test passed | Test voltage setpoint | 3.82 kV |
Result | Test passed | Open side panel | No |
Result | Test passed | DIN rail/fixing support | NS 32/NS 35 |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 16 mm² / 2.9 kg
50 mm² / 9.5 kg
70 mm²/10.4 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15
NS 32
NS 35/15-2,3 |
Specifications may be subject to change without notice
