Product Model

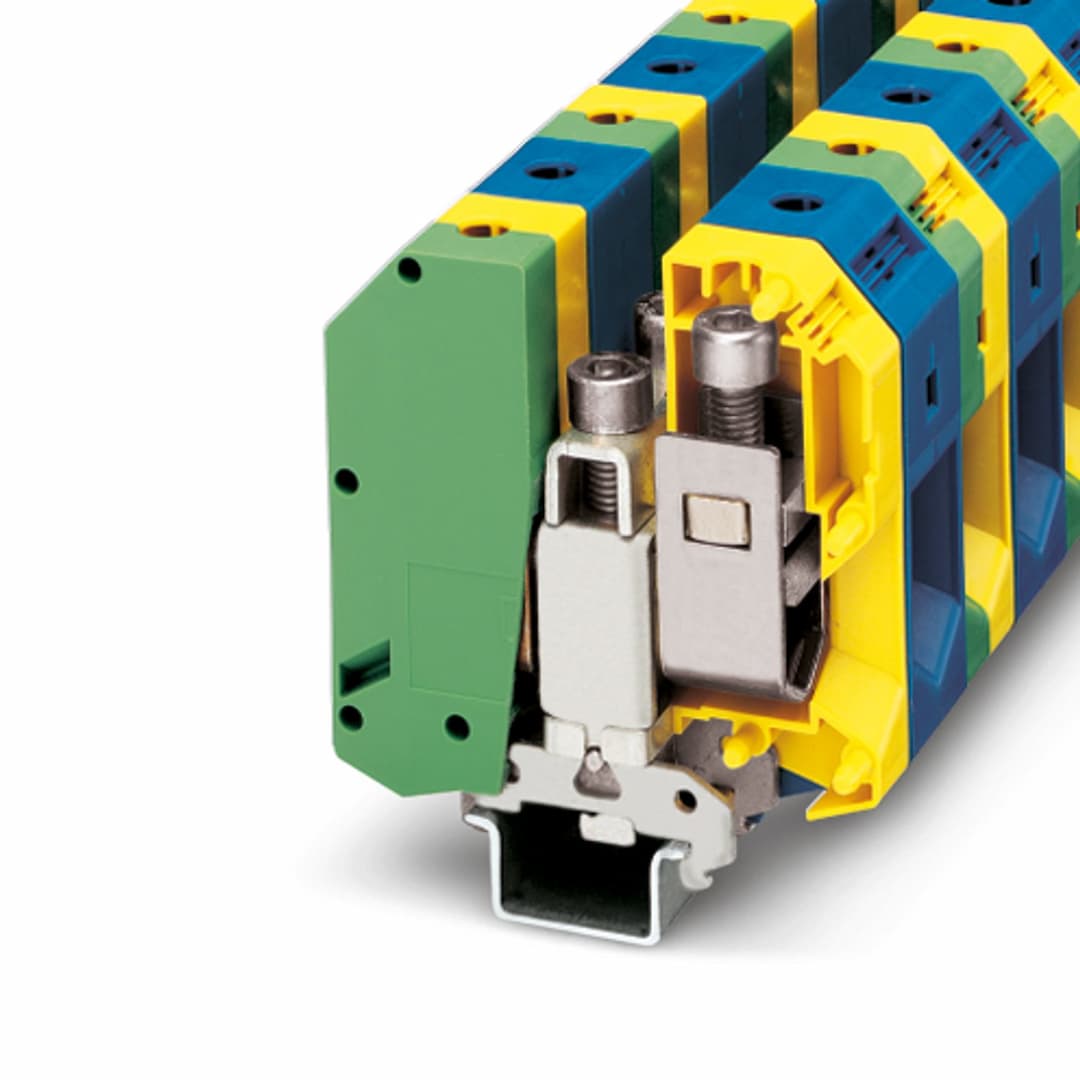

UKH 95-PE/N
Selling Points
- 1Supports up to 232 A with a 95 mm² conductor cross-section.
- 2Ensures reliable cable connection with three-point centering and low contact resistance.
- 3Meets IEC 60947-7-2 and UL 94 V0 flammability rating standards.
- 4Compatible with NS 35/15 and NS 32 mounting types, with a tightening torque of 15-20 Nm.
- 5Made from PA insulating material with a high relative insulation material temperature index (Elec., UL 746 B) of 130 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | Screws with hexagonal socket | Product type | Ground terminal block |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Article revision | 14 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 7.54 W |
PEN function | yes | Grounding foot | Yes |
Number of connections per level | 2 | Nominal cross section | 95 mm² |
Rated cross section AWG | 3/0 | Screw thread | M8 |
Note | Please observe the current carrying capacity of the DIN rails. | Tightening torque | 15 ... 20 Nm |
Stripping length | 33 mm | Connection in acc. with standard | IEC 60947-7-2 |
Conductor cross section rigid | 25 mm² ... 95 mm² | Cross section AWG | 2 ... 3/0 (converted acc. to IEC) |
Conductor cross section flexible | 35 mm² ... 95 mm² | Conductor cross section, flexible [AWG] | 1/0 ... 3/0 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 35 mm² ... 95 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 35 mm² ... 95 mm² |
Nominal current | 232 A | Maximum load current | 232 A (with 95 mm² conductor cross section) |
Nominal voltage | 1000 V | Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
Width | 50 mm | Height | 83 mm |
Depth on NS 32 | 104 mm | Depth on NS 35/7,5 | 99 mm |
Depth on NS 35/15 | 106.5 mm | Color | green-yellow |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Terminal block mounting | 15 Nm ... 20 Nm (PE foot with mounting screw, M8) |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-2 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 | Terminal block mounting | 15 Nm ... 20 Nm (PE foot with mounting screw, M8) |
Specifications may be subject to change without notice
