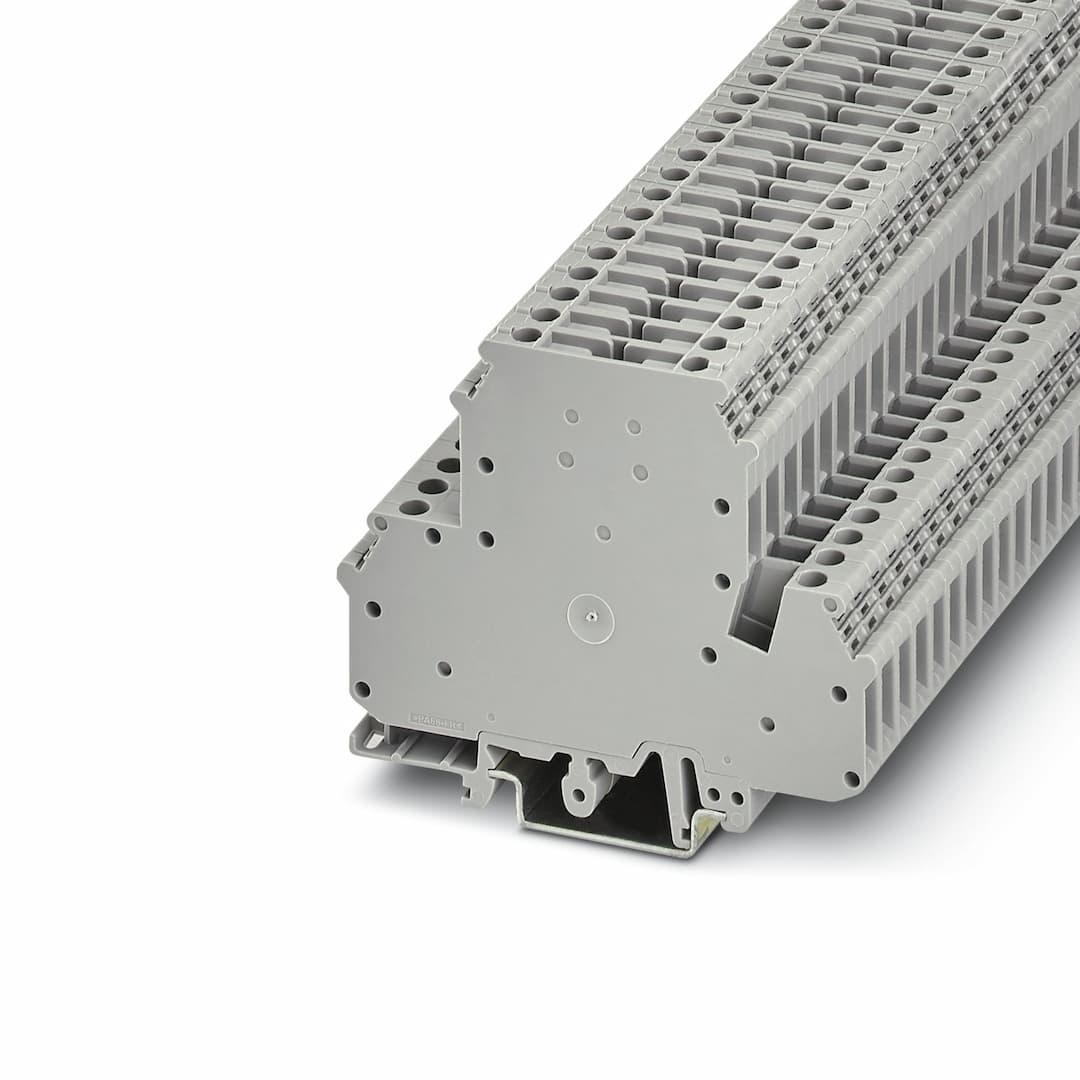

UKK 5-TG OHNE P: High-Quality, Reliable, and Efficient

Selling Points

1The UKK 5-TG OHNE P features premium materials ensuring long-lasting performance.
2Designed for optimal efficiency, this product minimizes energy consumption while maximizing output.
3Easy to install and operate, making it accessible for both professionals and beginners.
4Built with robust construction, the UKK 5-TG OHNE P delivers consistent results under various conditions.
5Suitable for multiple applications, including [specific use cases], making it a versatile addition to any setup.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
General	Current and voltage are determined by the plug used.	Product type	Disconnect terminal block
Number of connections	4	Number of rows	2
Potentials	2	Article revision	07
Overvoltage category	III	Degree of pollution	3
Rated surge voltage	6 kV	Maximum power dissipation for nominal condition	1.02 W
Number of connections per level	2	Nominal cross section	4 mm²
Screw thread	M3	Tightening torque	0.6 ... 0.8 Nm
Stripping length	8 mm	Internal cylindrical gage	A4
Connection in acc. with standard	IEC 60947-7-1	Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)	Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)	Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 2.5 mm²	Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	4 mm²	2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²	2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²	Nominal current	26 A
Maximum load current	26 A (with 4 mm² conductor cross section)	Nominal voltage	400 V
Nominal cross section	4 mm²	Screw thread	M3
Internal cylindrical gage	A3	Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 4 mm²	Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²	Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 2.5 mm²	Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	4 mm²	2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²	2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²	Nominal current	16 A (the current is determined by the component and fuse plugs)
Maximum load current	16 A	Nominal voltage	400 V (the voltage is determined by the component and fuse plugs)
Nominal cross section	4 mm²	Width	6.2 mm
Color	gray (RAL 7042)	Flammability rating according to UL 94	V2
Insulating material group	I	Insulating material	PA
Open side panel	No	Ambient temperature (operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)	Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C	Permissible humidity (storage/transport)	30 % ... 70 %
Connection in acc. with standard	IEC 60947-7-1 IEC 60947-7-1	Mounting type	NS 35/7,5 NS 35/15 NS 32

Specifications may be subject to change without notice
