Product Model

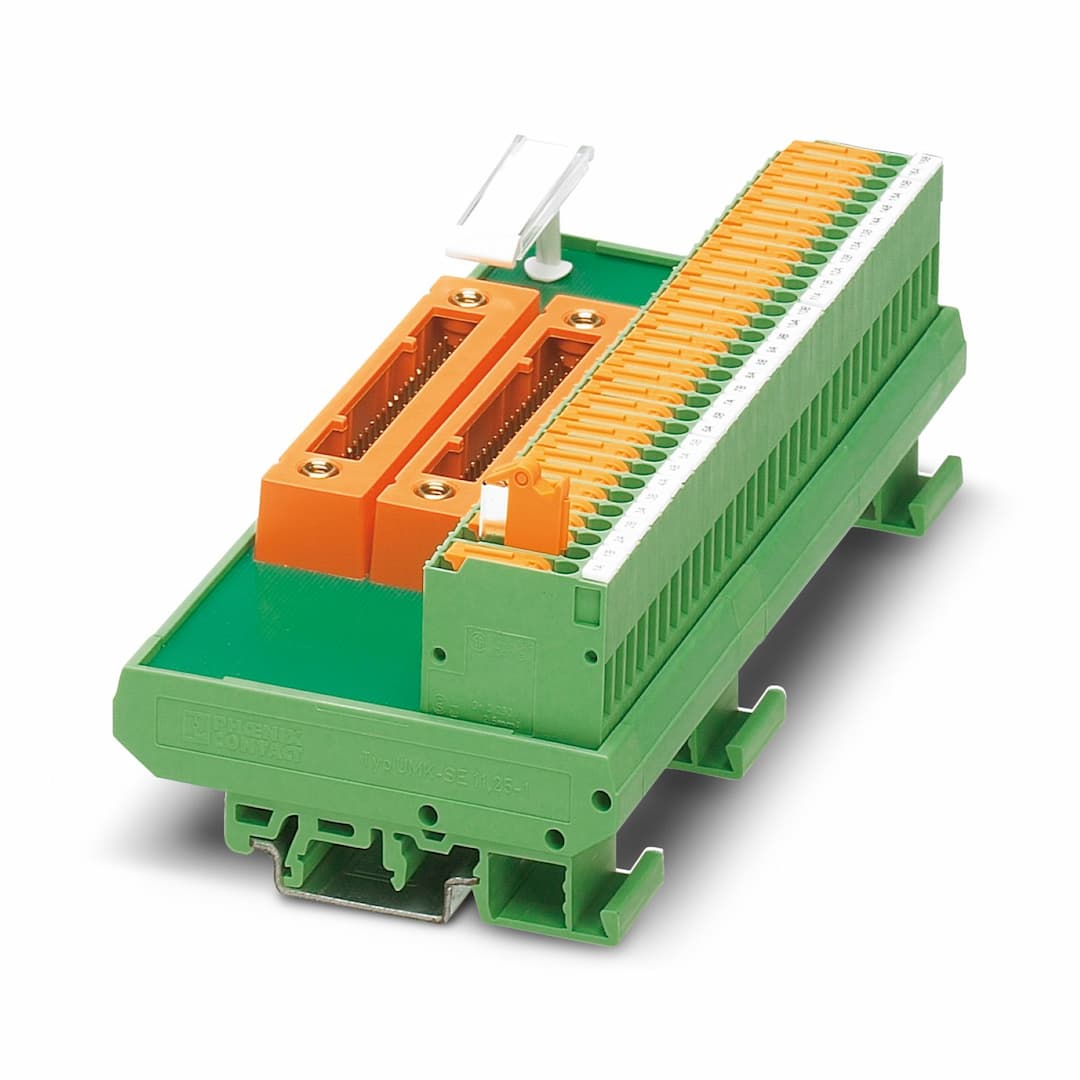

UMK-2KS40/AI16/RS/K-MT/SO241
Selling Points
- 116-channel analog input module with screw connection.
- 2Integrated knife disconnect function for easy maintenance.
- 3Compatible with Yokogawa SAI 143 I/O card.
- 4Redundant use possible for enhanced reliability.
- 5Meets DIN EN 50178 standards for insulation and creepage distances.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Overvoltage category | III |
Pollution degree | 2 | Nominal voltage U | 30 V DC |
Max. current carrying capacity per branch | 100 mA | Rated surge voltage | Basic insulation |
Suitable I/O card | SAI143 | Connection method | Screw connection |
Number of positions | 32 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Yokogawa KS-compatible | Number of connections | 2 |
Number of positions | 40 | Tightening torque | 0.5 Nm |
Status display present | No | Width | 169 mm |
Height | 78 mm | Depth | 60 mm |
Ambient temperature (operation) | -20 °C ... 70 °C | Standards/regulations | DIN EN 50178 |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
