Product Model

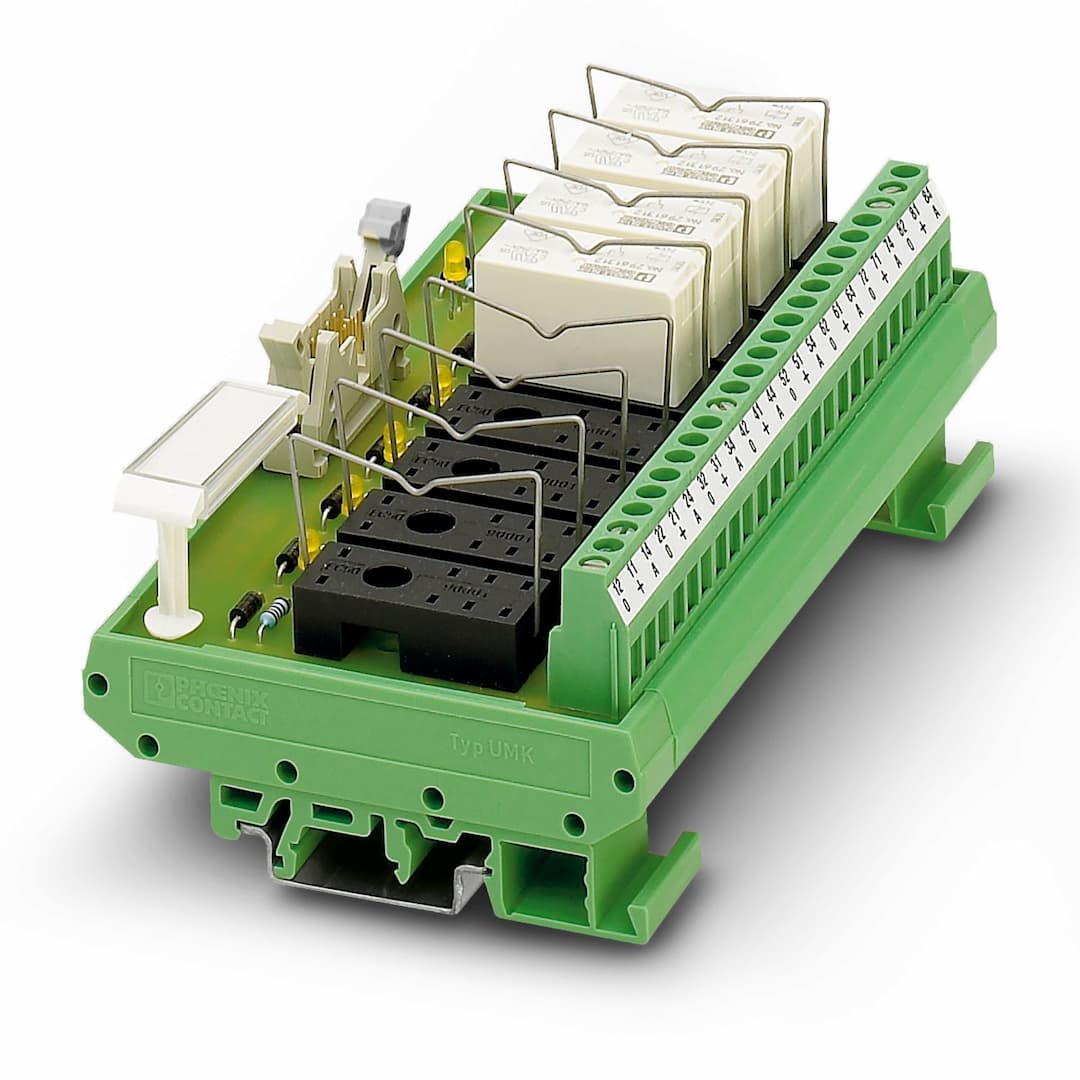

UMK- 8 RM24/KSR-G24/21
Selling Points
- 18 Channels for Multi-Tasking: Manage multiple tasks efficiently with this 8-channel active module.
- 2250V AC/DC Switching Voltage: Handle both AC and DC voltages up to 250V for versatile applications.
- 3Durable Construction: Built to last with a mechanical service life of 3x10^7 cycles.
- 4Green and Yellow LED Indicators: Easy status monitoring with green and yellow LED indicators.
- 5Compatible with Siemens S7-400: Seamlessly integrate with Siemens S7-400 controllers for a robust PLC setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Relay Module |
No. of channels | 8 | Mechanical service life | 5x 10 |
Suitable I/O card | VE4002S1T2B4 | Nominal input voltage U | 24 V DC |
Input voltage range in reference to U | 0.9 ... 1.1 | Input voltage range | 21.6 V DC ... 26.4 V DC |
Typical input current at U | 22 mA | Typical response time | 8 ms |
Typical release time | 10 ms | Protective circuit | Reverse polarity protection; Damping diode, polarity protection diode |
Status display/channel | Yellow LED | Contact switching type | 1 changeover contact |
Contact material | AgCdO | Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 5 A | Maximum inrush current | 8 A |
Interrupting rating (ohmic load) max. | 120 W (24 V DC, τ = 0 ms)
60 W (48 V DC, τ = 0 ms)
50 W (60 V, τ = 0 ms)
50 W (110 V DC, τ = 0 ms)
65 W (220 V DC, τ = 0 ms)
1250 VA (250 V AC, τ = 0 ms) | Connection method | Flat-ribbon cable connectors |
Number of connections | 1 | Number of positions | 10 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Status display present | Yes | Width | 135 mm |
Height | 77 mm | Depth | 59 mm |
Color | green (RAL 6021) | Ambient temperature (operation) | -20 °C ... 50 °C |
Standards/regulations | DIN VDE 0160 (in parts) | Mounting position | any |
Specifications may be subject to change without notice
