Product Model

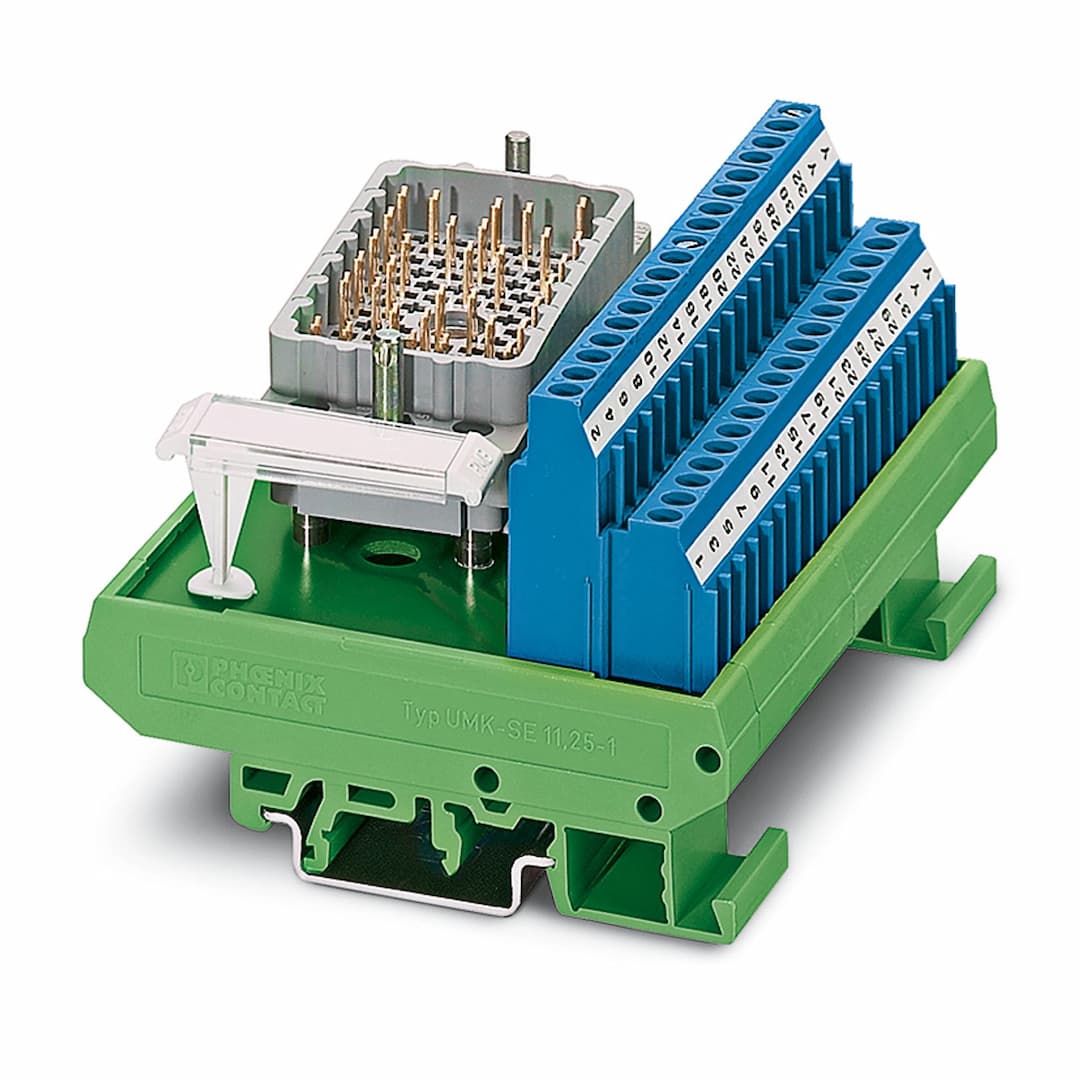

UMK- EC90/32/EX-XUR
Selling Points
- 1Ex i Protection Type: Ensures safe operation in hazardous environments.
- 232 Positions: Provides ample connectivity options for various applications.
- 3Screw Connection: Easy and secure connection method for reliable performance.
- 4ELCO Connector Compatibility: Supports ELCO connectors for versatile usage.
- 5Made in Germany: High-quality manufacturing from a trusted German origin.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 32 |
Nominal voltage U | max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC) | Max. current carrying capacity per branch | 500 mA |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | ELCO connector |
Coding | 1-1 | Number of connections | 1 |
Number of positions | 32 | Note | Pin strip type 8016 (EEx i protection), right |
Status display present | No | Width | 101.3 mm |
Height | 77 mm | Depth | 58.5 mm |
Color | green (RAL 6021) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN EN 60079-11 |
Mounting type | DIN rail mounting | Assembly note | To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing. |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
