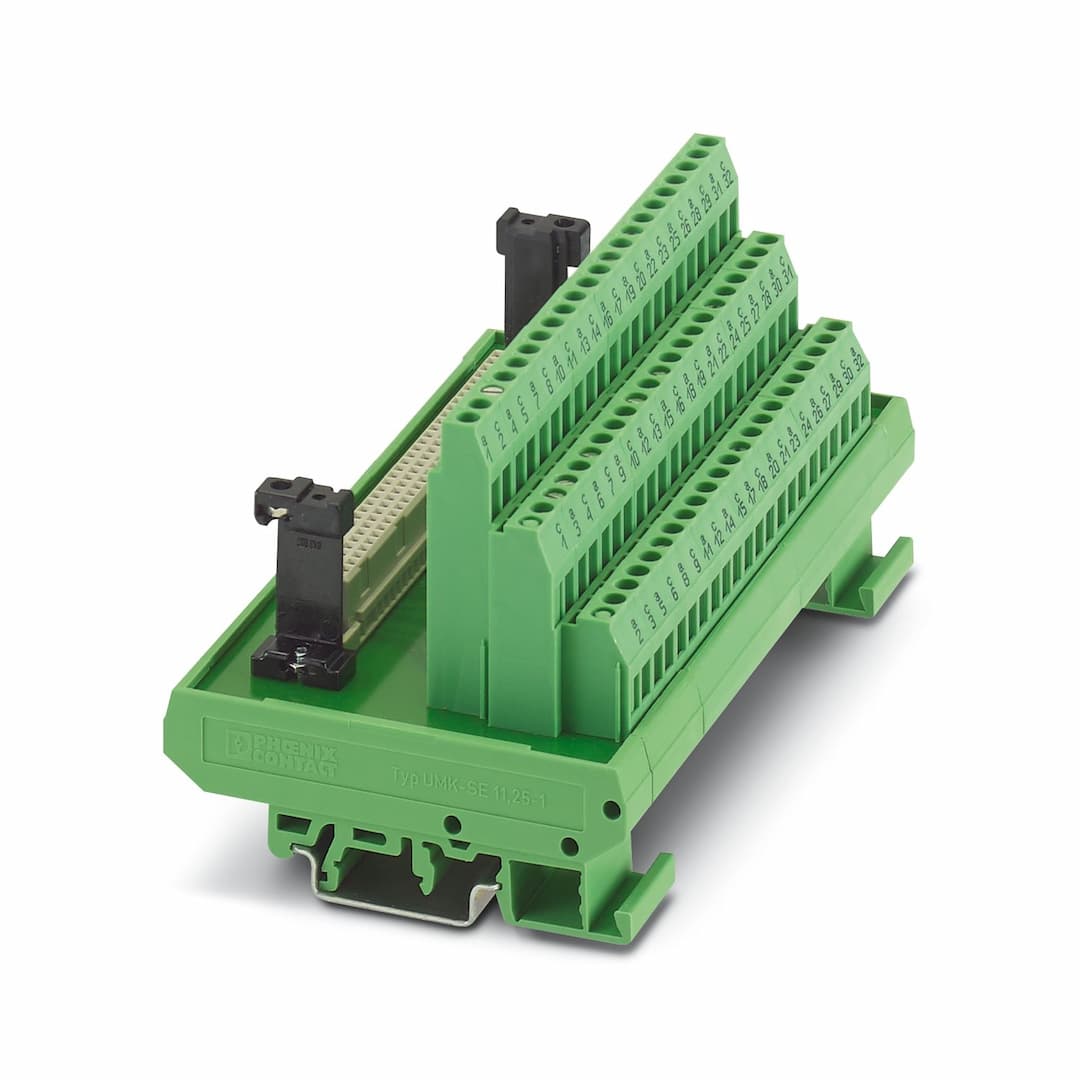

Product Model
UMKS- C64F-VS
Selling Points
- 1High-Performance Connectivity: The UMKS-C64F-VS offers 64-position IEC 603/DIN 41612 connectors for secure and efficient data transmission.
- 2Robust Design: Equipped with a cable housing featuring screw interlock for added stability and protection against environmental factors.
- 3Versatile Mounting Options: Can be mounted in any position, providing flexibility in installation and integration.
- 4Compliance with Industry Standards: Meets IEC 60664 and DIN EN 50178 standards for safety and reliability.
- 5Durable Construction: Made from high-quality materials, ensuring long-lasting performance in various operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 64 | Article revision | 09 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Nominal voltage U | 125 V AC/DC |
Max. current carrying capacity per branch | 1 A | Rated surge voltage | 4 kV |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IEC 603/DIN 41612 connection |
Number of connections | 1 | Number of positions | 64 |
Status display present | No | Width | 134.8 mm |
Height | 77 mm | Depth | 70.87 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
