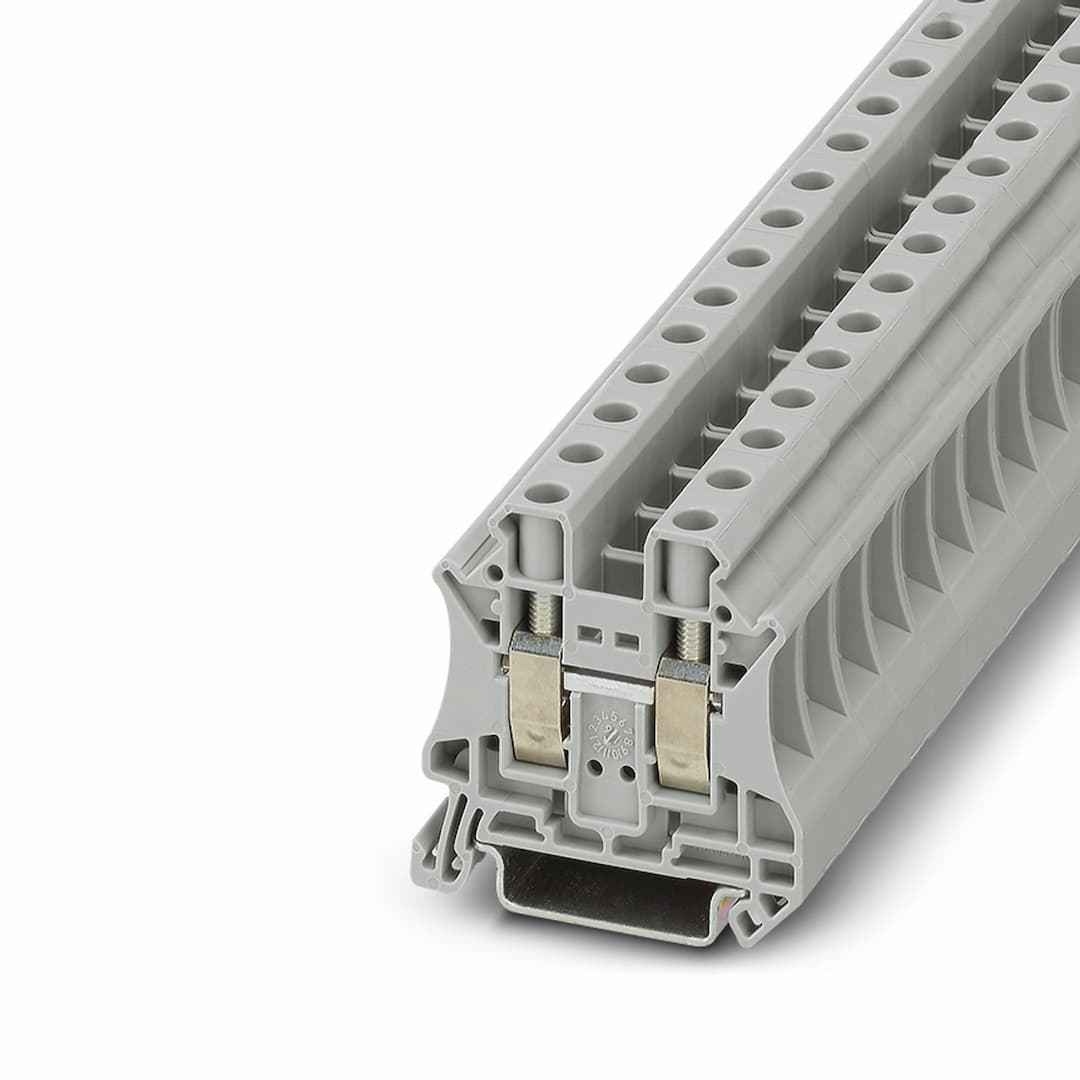

Product Model
UT 10-KC
Selling Points
- 1Handles up to 57 A nominal current and 76 A maximum load current.
- 2Compact and space-saving, with a large wiring space for solid and stranded conductors.
- 3Meets overvoltage category III and degree of pollution 3 standards, ensuring reliable performance.
- 4Suitable for railway industry, machine building, plant engineering, and process industry.
- 5Tested for railway applications with a temperature index of insulation material up to 125 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Number of connections per level | 2 | Nominal cross section | 10 mm² |
Screw thread | M4 | Tightening torque | 1.5 ... 1.8 Nm |
Stripping length | 10 mm | Internal cylindrical gage | A6 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Cross section AWG | 20 ... 6 (converted acc. to IEC) | Conductor cross section flexible | 0.5 mm² ... 16 mm² |
Conductor cross section, flexible [AWG] | 20 ... 6 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 10 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 10 mm² | 2 conductors with same cross section, solid | 0.5 mm² ... 4 mm² |
2 conductors with same cross section, flexible | 0.5 mm² ... 4 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 6 mm² | Nominal current | 57 A |
Maximum load current | 76 A (with 16 mm² conductor cross section) | Nominal voltage | 1000 V |
Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 10 mm² |
Connection in acc. with standard | IEC/EN 60079-7 | Test certificate name | IECEx KEM 06.0027U / KEMA 04ATEX2048 U |
Conductor cross section rigid | 0.5 mm² ... 16 mm² | Cross section AWG | 20 ... 6 (converted acc. to IEC) |
Conductor cross section flexible | 0.5 mm² ... 10 mm² | Maximum load current | 69 A (with 16 mm² conductor cross section)
54 A (with 10 mm² conductor cross section) |
Nominal voltage | 690 V | Width | 10.2 mm |
End cover width | 2.2 mm | Height | 46.9 mm |
Color | gray | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Open side panel | Yes | Connection in acc. with standard | IEC 60947-7-1
IEC/EN 60079-7 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
