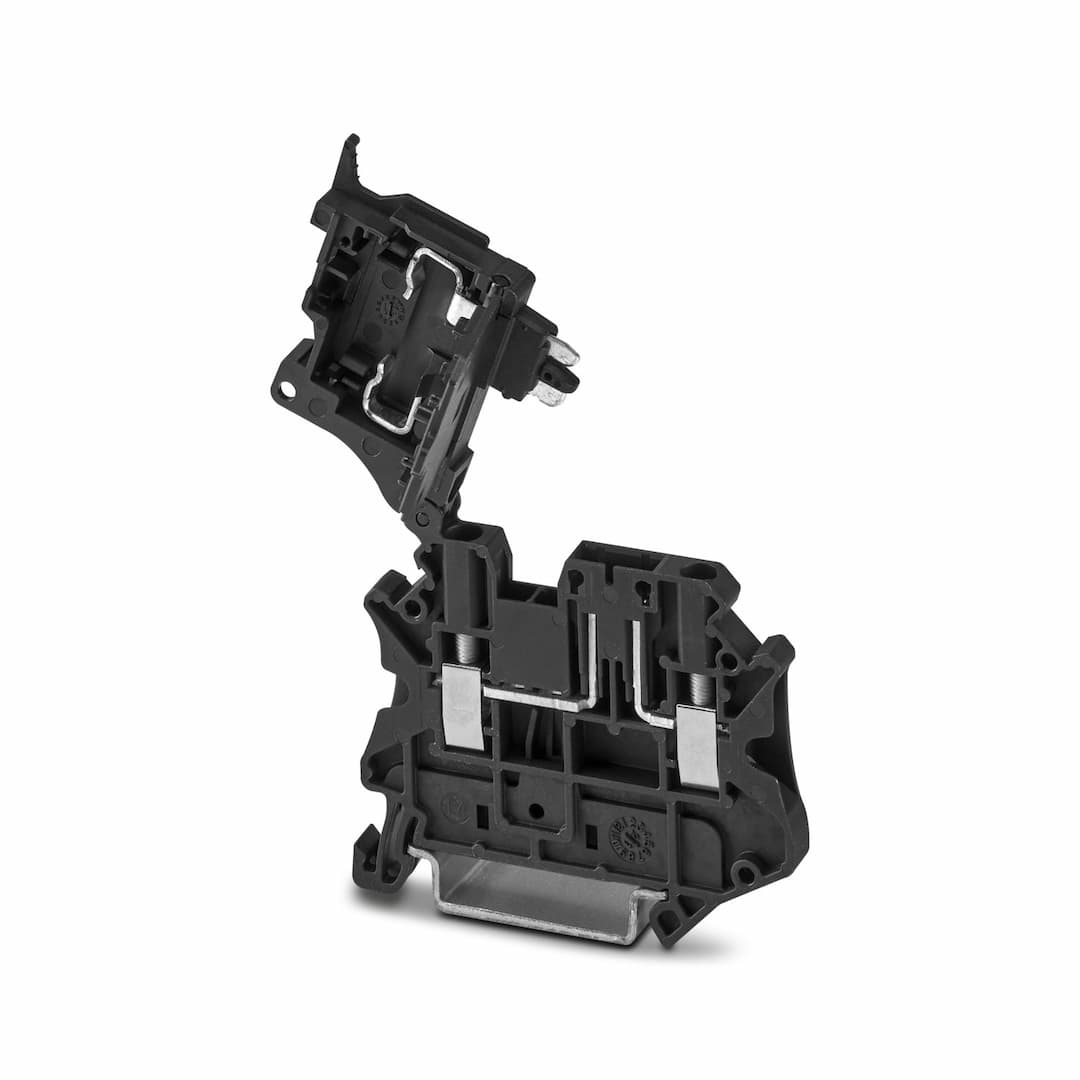

Phoenix Contact UT 2,5-HESI-EX (5X20)

Selling Points

  • 1Durable glass or ceramic fuse type for reliable performance.
  • 2Screw connection method for quick and secure mounting.
  • 3Suitable for various applications with a rated cross section of 2.5 mm².
  • 4Meets RoHS standards for environmental sustainability.
  • 5Black color with dimensions suitable for DIN rail mounting.
Product Details
UT 2,5-HESI-EX (5X20)
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note
The current is determined by the fuse used, the voltage by the fuse or selected light indicator. When using fuse terminal blocks in a compound arrangement, the D-UT 2,5/4-TWIN end cover (3047141) must be inserted at each fuse terminal block or a UT 2,5-MTS-EX terminal block (1277636) must be used between each fuse terminal block. When using partition plates between the fuse terminal blocks, FBS bridges cannot be used due to the separation.
Product type
Fuse terminal block
Area of application
Process industry Machine building Plant engineering
Number of connections
2
Number of rows
1
Article revision
02
Overvoltage category
III
Degree of pollution
3
Fuse type
Glass / ceramics / ...
Rated surge voltage
6 kV
Maximum power dissipation for nominal condition
0.77 W
Fuse
G / 5 x 20
Maximum power dissipation
max. 1.6 W (with single arrangement of the fuse terminal block in the event of overload) max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload) max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit) max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
Number of connections per level
2
Nominal cross section
2.5 mm²
Screw thread
M3
Tightening torque
0.5 Nm
Stripping length
9 mm
Internal cylindrical gage
A3
Nominal cross section
2.5 mm²
Identification
 II 3 G  Ex ec llC Gc
Operating temperature range
-50 °C ... 130 °C
Ex-certified accessories
3047141 D-UT 2,5/4-TWIN 1205053 SZS 0,6X3,5 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35
List of bridges
Plug-in bridge / FBS 2-5 / 3030161 Plug-in bridge / FBS 3-5 / 3030174 Plug-in bridge / FBS 4-5 / 3030187 Plug-in bridge / FBS 5-5 / 3030190 Plug-in bridge / FBS 10-5 / 3030213 Plug-in bridge / FBS 20-5 / 3030226
Bridge data
6.3 A / 2.5 mm²
Rated voltage
275 V
Rated insulation voltage
250 V
output
(Permanent)
Rated current
6.3 A (2.5 mm²)
Maximum load current
6.3 A (4 mm²)
Contact resistance
0.5 mΩ
Torque range
0.5 Nm ... 0.6 Nm
Nominal cross section
2.5 mm²
Rated cross section AWG
14
Connection capacity rigid
0.14 mm² ... 4 mm²
Connection capacity AWG
26 ... 12
Connection capacity flexible
0.14 mm² ... 4 mm²
Connection capacity AWG
26 ... 12
2 conductors with same cross section, solid
0.14 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid
26 ... 16
2 conductors with same cross section, stranded
0.14 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible
26 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
2.5 mm²
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG
26 ... 14
Width
6.2 mm
Height
57.8 mm
Depth on NS 35/7,5
75.6 mm
Depth on NS 35/15
83.1 mm
Color
black (RAL 9005)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Open side panel
No
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Spectrum
Service life test category 2, bogie-mounted
Frequency
f
ASD level
6.12 (m/s²)²/Hz
Acceleration
3.12g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Pulse shape
Half-sine
Acceleration
30g
Shock duration
18 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Mounting type
NS 35/7,5 NS 35/15

Specifications may be subject to change without notice
