Product Model

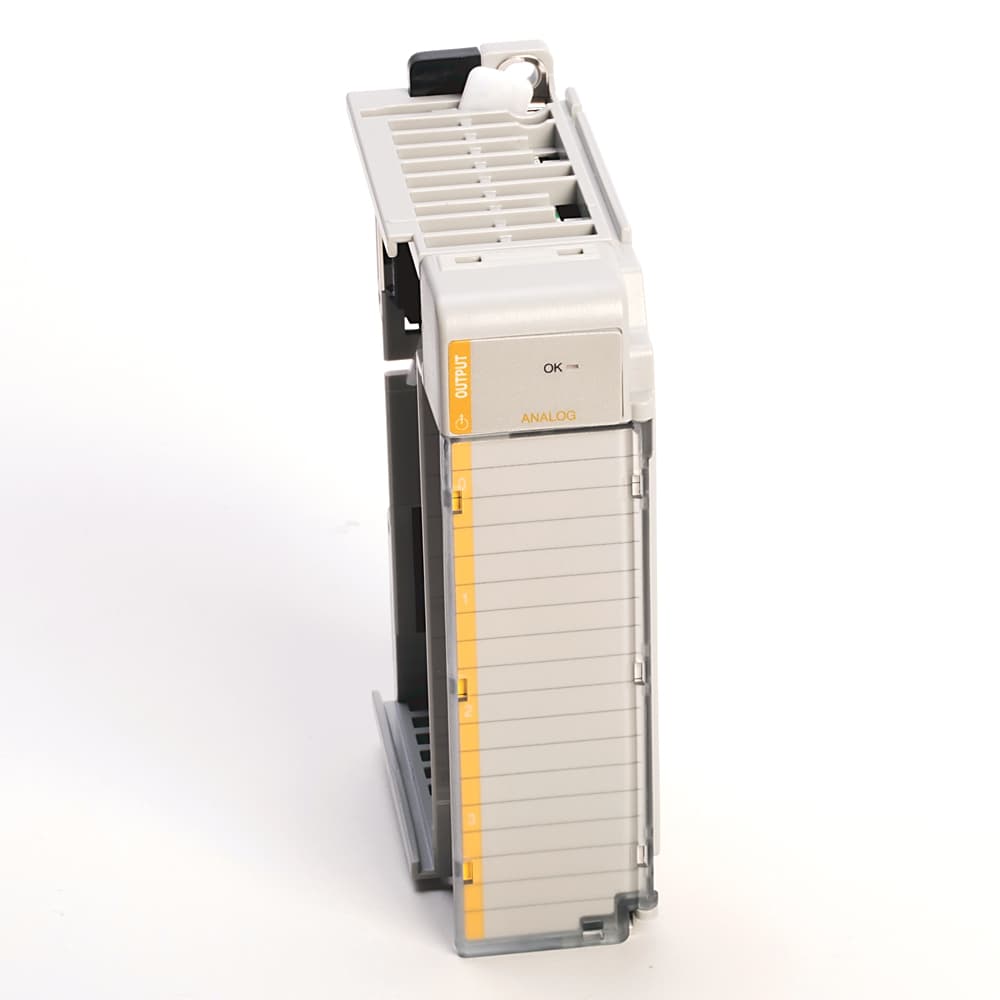

1769-OF8V

Selling Points
- 11. High Precision Output Signals: The 1769-OF8V module delivers precise analog output signals, ensuring accurate control and performance in your industrial automation system.;
- 22. Compatibility with CompactLogix Controllers: Designed to work seamlessly with CompactLogix controllers, this module integrates effortlessly into your existing control system infrastructure.;
- 33. Reliability in Harsh Environments: Built to withstand the rigors of industrial environments, the 1769-OF8V module provides reliable operation even in challenging conditions.;
- 44. Easy Installation and Maintenance: With its compact design and straightforward installation process, the 1769-OF8V module simplifies your system setup and maintenance tasks.;
- 55. Compliance with Industrial Standards: Meets or exceeds industry standards for electromagnetic compatibility and safety, ensuring safe and efficient operation in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.24 | Stock Status | STOCKED |
Dimension Length | 16.205 | Dimension Width | 12.802 |
Lead Time | 5 | Dimension Height | 5.309 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Output Signal | Plus / minus 10V DC, 0â¦10V DC, 0â¦5V DC, 1â¦5V DC |
Number Of Channels | 8 | Isolation | 500V AC @ 710V DC 1 min(qual test),output group to bus,30V AC/30V DC working volt(IEC Class 2 reinforced insulation) |
Height | 118mm, 4.65" | Depth | 87mm, 3.43" |
Specifications may be subject to change without notice
