Product Model

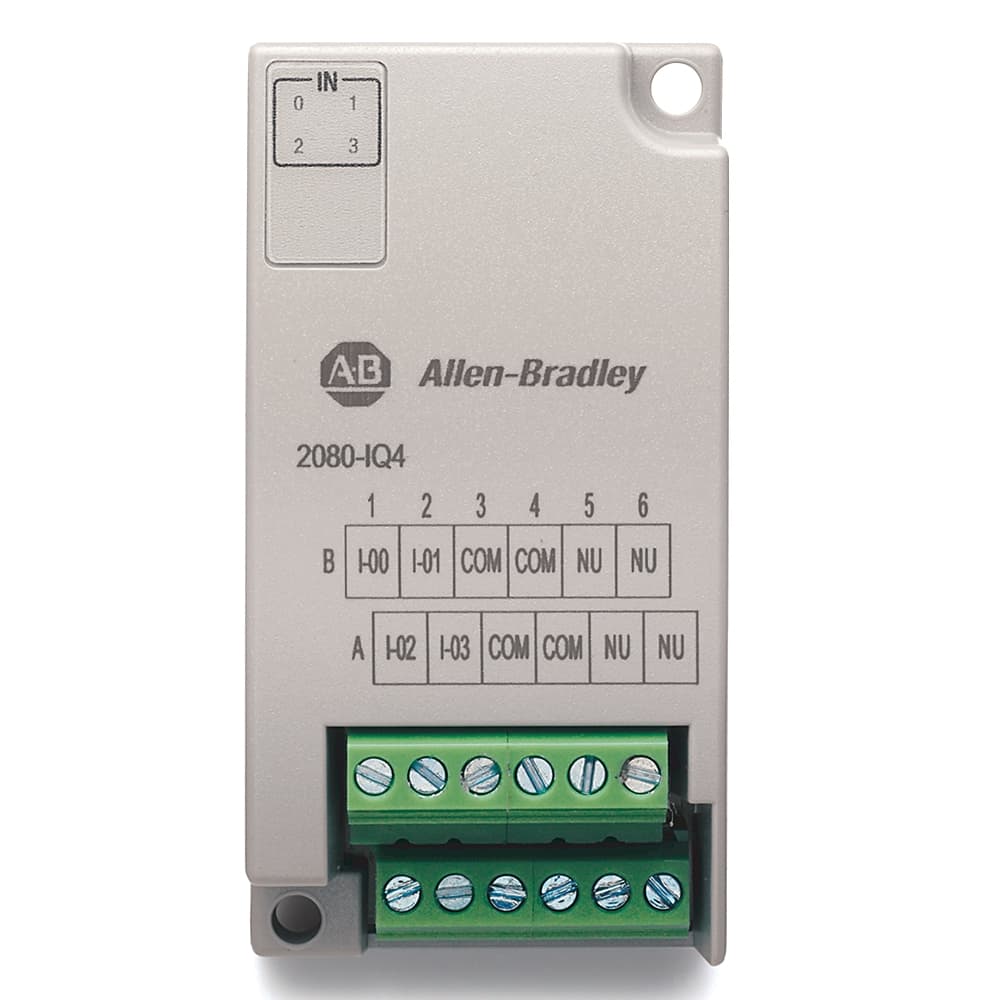

2080-IQ4
Selling Points
- 11. Compatibility with Micro800 CPUs: The 2080-IQ4 is designed to work seamlessly with all Micro800 CPUs, ensuring flexibility and ease of integration in your industrial automation setup.;
- 22. 4-Channel Digital Input: With four channels of digital input, this module provides ample space for connecting various digital signals, making it suitable for a wide range of applications.;
- 33. 12/24VDC Support: The module supports both 12VDC and 24VDC, offering versatility in terms of power supply compatibility, which is essential in different industrial environments.;
- 44. Sink/Source Configuration: The sink/source configuration allows for both active-low and active-high digital signals, providing flexibility in signal handling and ensuring compatibility with different systems.;
- 55. Reliable Operation: The 2080-IQ4 is built to provide reliable digital input operations, with a robust design that ensures consistent performance even in challenging industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.023 | Stock Status | STOCKED |
Dimension Length | 9.271 | Dimension Width | 6.858 |
Lead Time | 5 | Dimension Height | 3.683 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Explosion safety category for dust | None |
Explosion safety category for gas | None | Mounting torque | 0.2 nm |
Vibration | 2.0 G @ 10â¦500 Hz | Shock | Operating: 25 g |
Terminal base screw torque, max | 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) | Input impedance | 0...3V, >4 K?, 3...12V, 3.5 K? minimum, 12...30V, >4 K? <10 K? |
Input filter time | ON to OFF: 8...10 ms AC/DC | IEC input compatibility | Type 3 |
Nonoperating temperature | 40 to 85 °C | Operating temperature | -20 to 65 °C |
Relative humidity | 5...95% noncondensing | North American temperature code | T4 |
Surrounding air temperature, max | 65 °C | SIL according to IEC 61508 | None |
Redundancy | No | Wire size | 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum |
On-state current, nom | 3.0mA @ 24V DC | ON-state current, max | 5 mA |
Status indicator | 4 yellow | Type of electric connection | Screw connection |
Type of digital output | Transistor | Type of output voltage | DC |
Type of voltage (input voltage) | AC/DC | Digital outputs configurable | No |
Digital inputs configurable | No | Number of digital inputs | 4 |
Temperature Rating | -20â¦65 °C (-4â¦149 °F) | I/O Isolation | None |
Consist Of | Screws |
Specifications may be subject to change without notice
